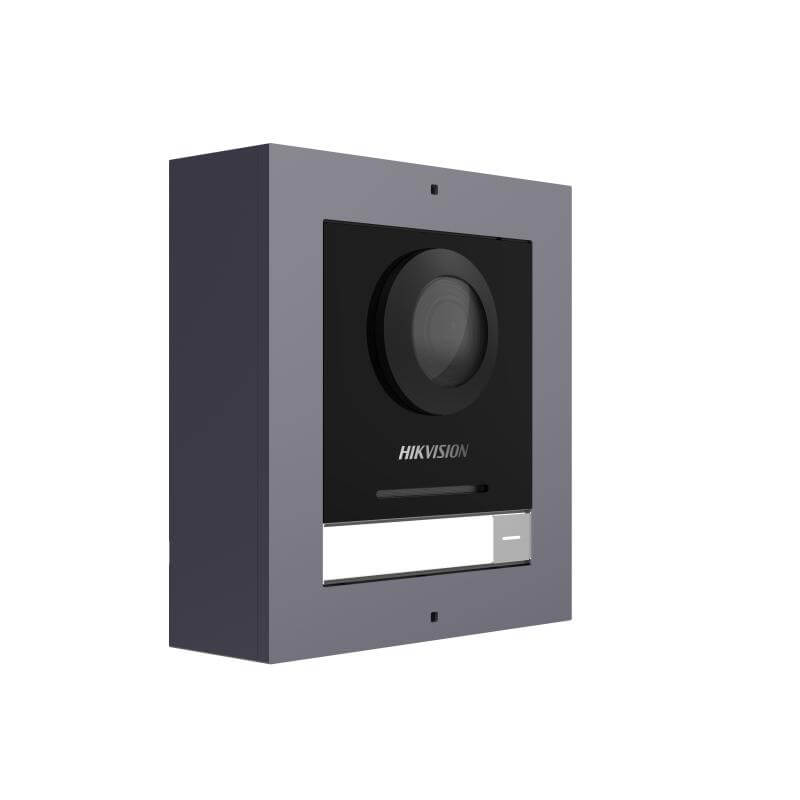

Door station/System parameters
- Operation system Embedded Linux operation system
- Flash 32 MB
- RAM 256 MB
Door station/Video parameters
- Camera 2MP HD camera
- Night vision Low illumination IR supplement mode:3 m
- Backlight compensation Support
- Digital noise reduction Support
- WDR Support
- Field of view Horizontal: 146°, Vertical: 82°
- Video Compression Standard H.264
- Motion detection Support
Door station/Audio parameters
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loudspeaker
- Audio quality Noise suppression and echo cancellation
- Audio compression standard G.711 U, G.711 A
- Audio compression Rate 64 Kbps
- Audio intercom Two-way audio communication
Door station/Network parameters
- Network protocol TCP/IP, RSTP
- Wired network 10/100 Mbps Ethernet
Door station/Device interfaces
- Network interface 1 RJ45
- RS-485 1 (1 for Hikvision’s sub module communication)
- Alarm input 4 (2 exit butttons and 2 door contacts by default)
- Debugging port 1
- Lock control 2 (2 relay, max to 30 V, 2 A)
- TAMPER switch 1
- Power interface 12 VDC power output (max to 12 V, 500 mA)
Door station/General
- Power consumption ≤ 5 W
- Working temperature -40° C to 60° C (-40° F to 140° F)
- Working humidity 10% to 95%
- Dimension Device: 98 mm × 100 mm × 42 mm (3.86″ × 3.94″ × 1.65″)Cover:117 × 107 × 4 mm (4.61 × 4.21″ ×0.16″)Installation Frame:117 × 107 × 32.7mm (4.61 × 4.21″ ×1.29″)”
- Installation Surface mounting
- Protection level IP65
- Indicator 0
- Power supply IEEE802.3af, standard PoE12 VDC
Indoor station/System parameters
- Operation system Embedded Linux operation system
- Memory 128 MB
- Flash 32 MB
Indoor station/Display parameters
- Display screen 7-inch colorful TFT screen
- Display resolution 1024 × 600
- Operation method Capacitive touch screen
Indoor station/Audio parameters
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loudspeaker
- Audio quality Noise suppression and echo cancellation
- Audio compression standard G.711 U, G.711 A
- Audio compression Rate 64 Kbps
Indoor station/Network parameters
- Wired network 10/100 Mbps self-adaptive
- Wireless network Wi-Fi 802.11 b/g/n
- Protocol TCP/IP, SIP, RTSP
- RS-485 1 RJ-45 10/100 Mbps self-adaptive
Indoor station/Device interfaces
- RS-485 1
- Alarm input 8-ch alarm inputs
- Relay output 2
- TF card Max to 32 G, SD 2.0 or lower version
Indoor station/General
- Power consumption ≤ 6 W
- Working temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity 10% to 90%
- Dimension (L x W x H) 200 mm × 140 mm × 23.6 mm (7.9″ × 5.5″ × 0.9″)
