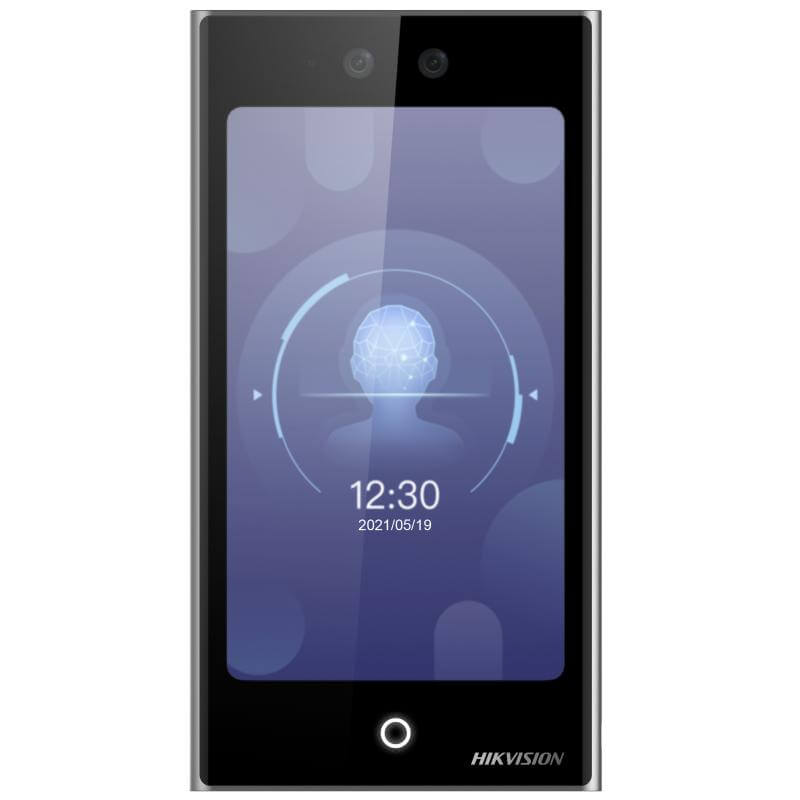

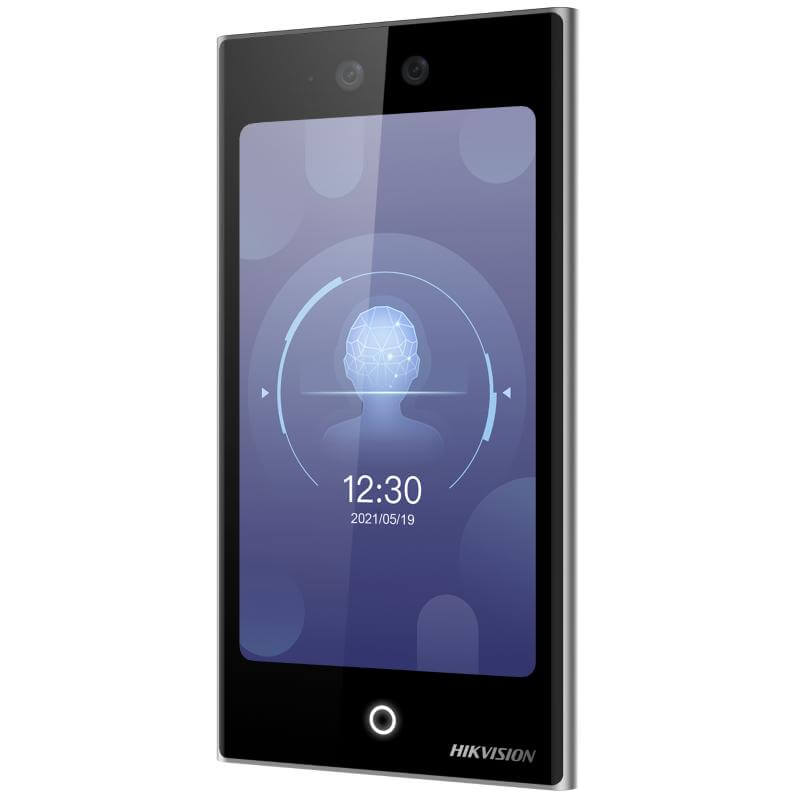

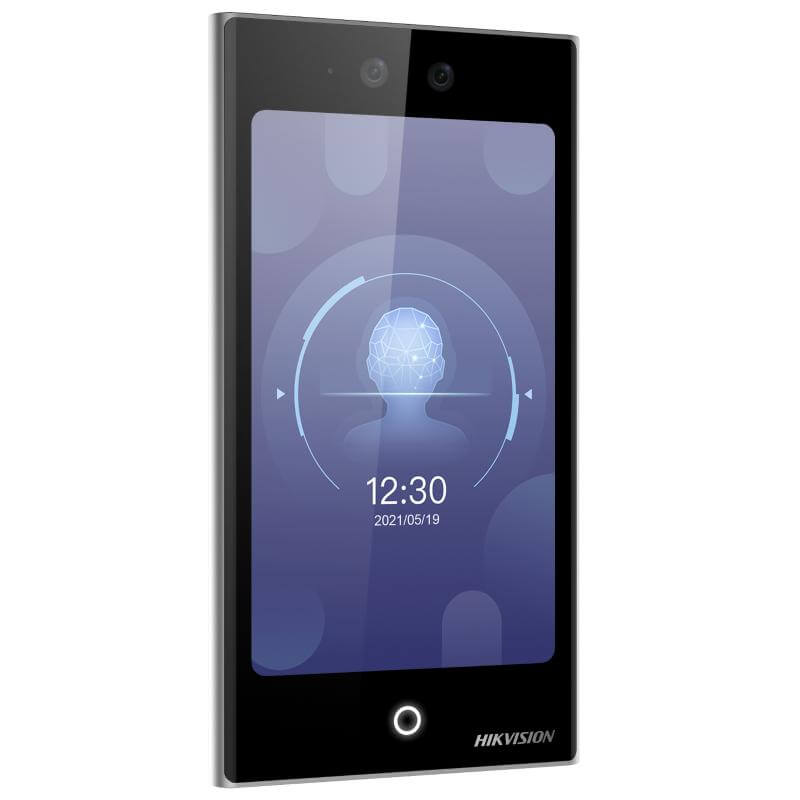

Hikvision Pro Face Access Terminal – DS-K1T673DWX

Display

• Screen size 7 inch
• Operation method Capacitive touch screen
• Type IPS

Video

• Lens 2
• Resolution 2 MP
• FOVH FOV = 75.5°; VFOV = 41.5°; DFOV = 87°

Audio

• Audio quality Built-in omnidirectional microphone

Network

• Wired network Support
• Wi-Fi Support, 2.4 G, 802.11b/g/n

Interface

• Network interface 1 RJ-45, 10/100/1000 M self-adaptive
• Lock control 1
• Exit button 1
• Door contact input 1
• Alarm input 2
• Alarm output 1
• TAMPER 1
• RS-485 1 RS-485 (Half duplex, HIKVISION)
• Wiegand 1 Wiegand(Hik 26bit,Hik 34bit)
• USB 1 (For Module)
• Audio output interface 1 (3.5 mm)

Authentication

• Card type M1 card; Felica card; DES fire card

General

• Power supply 12 VDC to 24 VDC, 2 A
• Working temperature -30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity 0 to 90% (no condensing)
• Dimensions 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
• Weight Gross Weight：1.06 kg (2.34 lb)Net Weight：0.57 kg (1.26 lb)
• Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean

Function

• Face anti-spoofing Support
