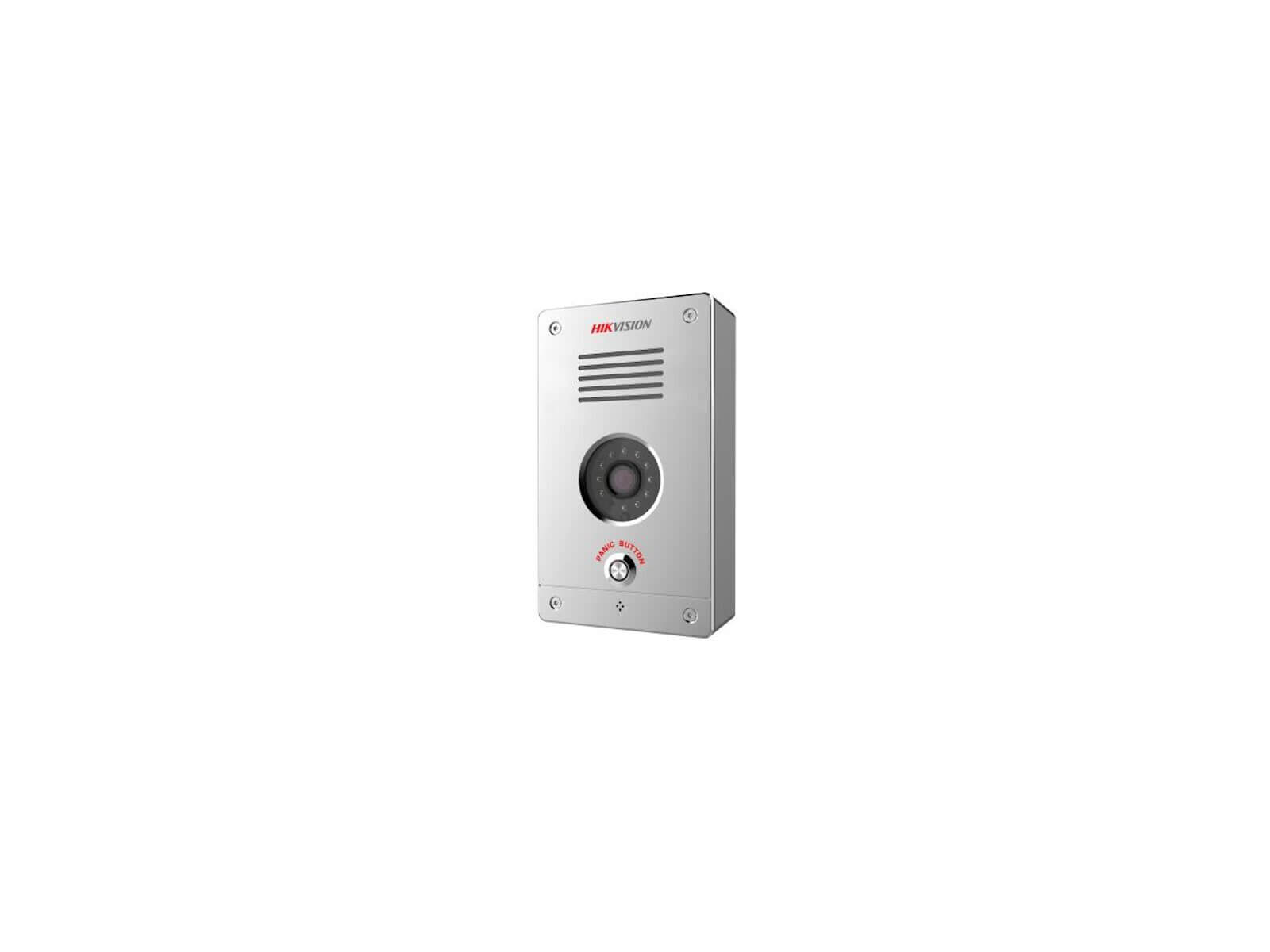

Hikvision Panic Alarm Panel with Built in 2MP Camera

Detection performance

• Sound pressure: 110dB, Sound Can be Configured Separately

Software features

• Tamper-Proof: tamper alarm
• Intercom: 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m
• Protocol: TCP/IP, RTSP, SNMP, HIK-SIP,ONVIF

Hardware features

• Alarm input: 2
• Alarm output: 2
• Network interface: 1RJ45,10 M/100 M/1000 M self adaptive
• Audio interface

  1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m

  1-ch 3.5 mm Audio Interface for External Audio Input

• PSTN: 1
• Bus: RS-485 1, Half-duplex
• SD Card: Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 128G

Video

• Resolution: 1920*1080
• Frame rate: 25fps
• Field Angle

  Horizontal: 128°

  Vertical: 75°

  Diagonal: 147°

Audio

• Audio input

  1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m

  1-ch 3.5 mm Audio Interface for External Audio Input

• Audio output

  1-ch 30 W Build-in Loudspeaker

  1-ch 3.5 mm Audio Interface for External Audio Output

• Audio compression code rate: 64Kbps;16Kbps

General

• Dimension(WxHxD): 218 mm × 128 mm × 58 mm (8.58″ × 5.04″ × 2.28″)
