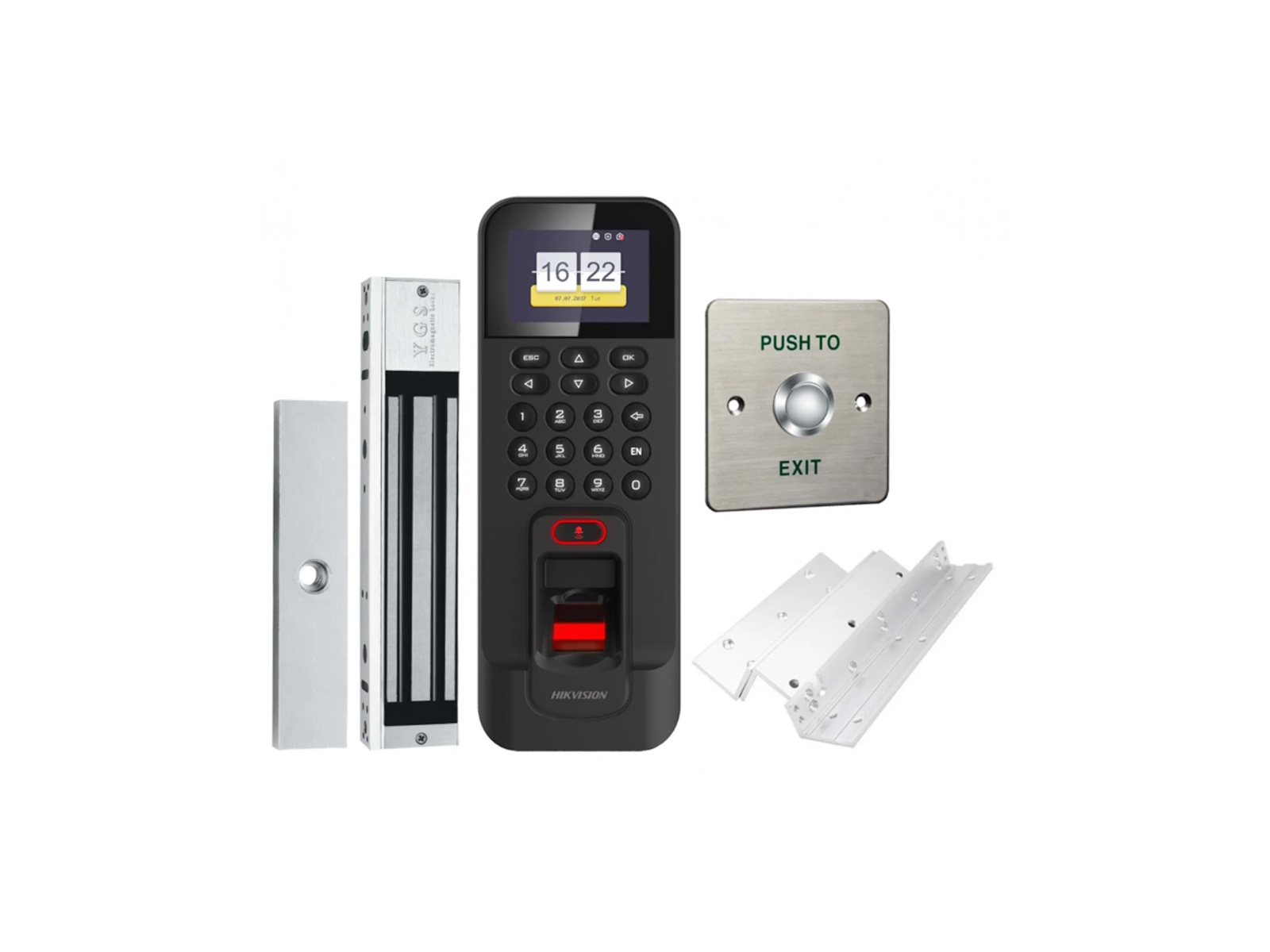

Hikvision One Door Access Control Kit

Value Series Fingerprint Access Terminal

• Standalone access control fingerprint terminal
• LCD display screen
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare1 card
• Communication via TCP/TP and Wi-Fi
• RS-485, Wiegand interface
• EHome for public network communication
• Alarm input and output interface
• Multiple time attendance status

Value Series Magnetic Lock

• Magnetic lock supports static linear thrust of 280 kg (617 Lbs)
• Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
• Suitable for wooden door, glass door, metal door and fireproof door
• LED indicator displays door lock status
• Abrasion-proof materials

Value Series Magnetic Lock Bracket

• Model: DS-K4H258-LZ
• Subseries Value Magnetic Locks
• Material Shell: hard anodizing electroplated
• Weight: 0.77kg
• Dimensions: Bracket Dimension (L×W×H): 238×30×47mm (9.4×1.2×1.9″);Z-bracket Dimension (L×W×H): 185×44×100mm (7.3×1.7×3.9)”
• Suitable Door Wooden Door, and Metal Door

Exit & Emergency Button

• Aluminum alloy panel, metal button
• Dimension(L×W×H): 86 × 86 × 20mm (3.39 × 3.39 × 0.79″)
