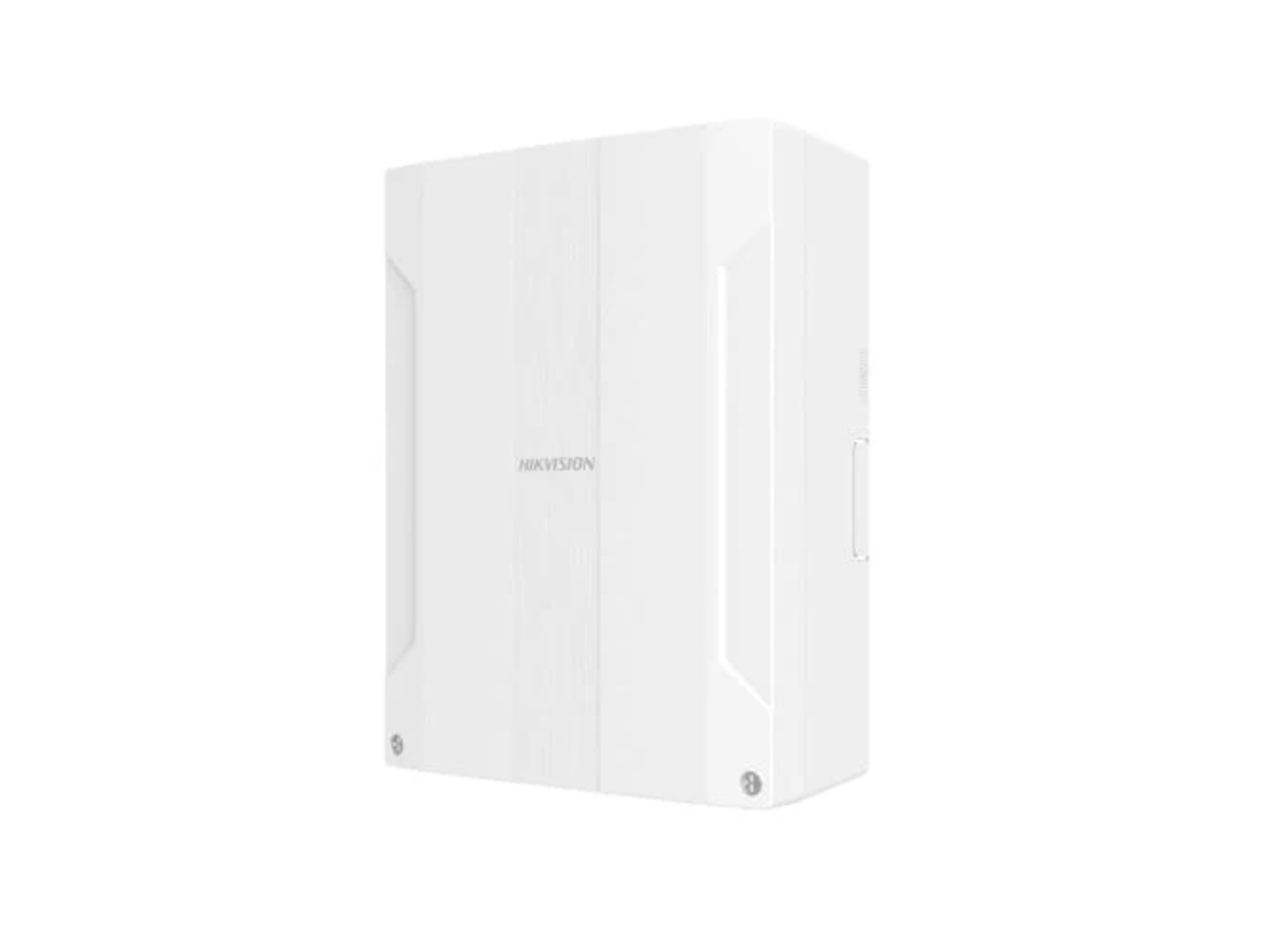

DS-PM1-I16O2-WE wireless multi IO transmitter offers a connection of third party wired detectors like outdoor PIR, to AX PRO alarm system, the alarm types and zone parameters can be set through APP by installers easily. Under the situation when your want to update your security system to AXPRO with more innovated features, multi IO transmitter gives you a chance to rebuild your alarm system without changing existing wired detectors.
Features
Serial port: 1
Battery port: 1, 12 VDC input
Tamper-Proof: Front and rear
Power switch: 1
Alarm input: 16
Alarm output: 2
Power Output: 2 (12v, total1A)
Battery type: Compatible with 12v 7 Ah
Power supply: 100-240VAC, 30w
Battery life span: Up to 36 hours
RF frequency: 868MHz
RF method: Two-way communication
RF modulation: 2GFSK
RF distance: 1100m
Installation method: Wall Mounting
Dimension (WxHxD): 261 x 199 x 86.4mm
Shell material: Plastic
End of Line Resistance: 1k, 2.2k, 4.7k, 8.2k, NO/NC
