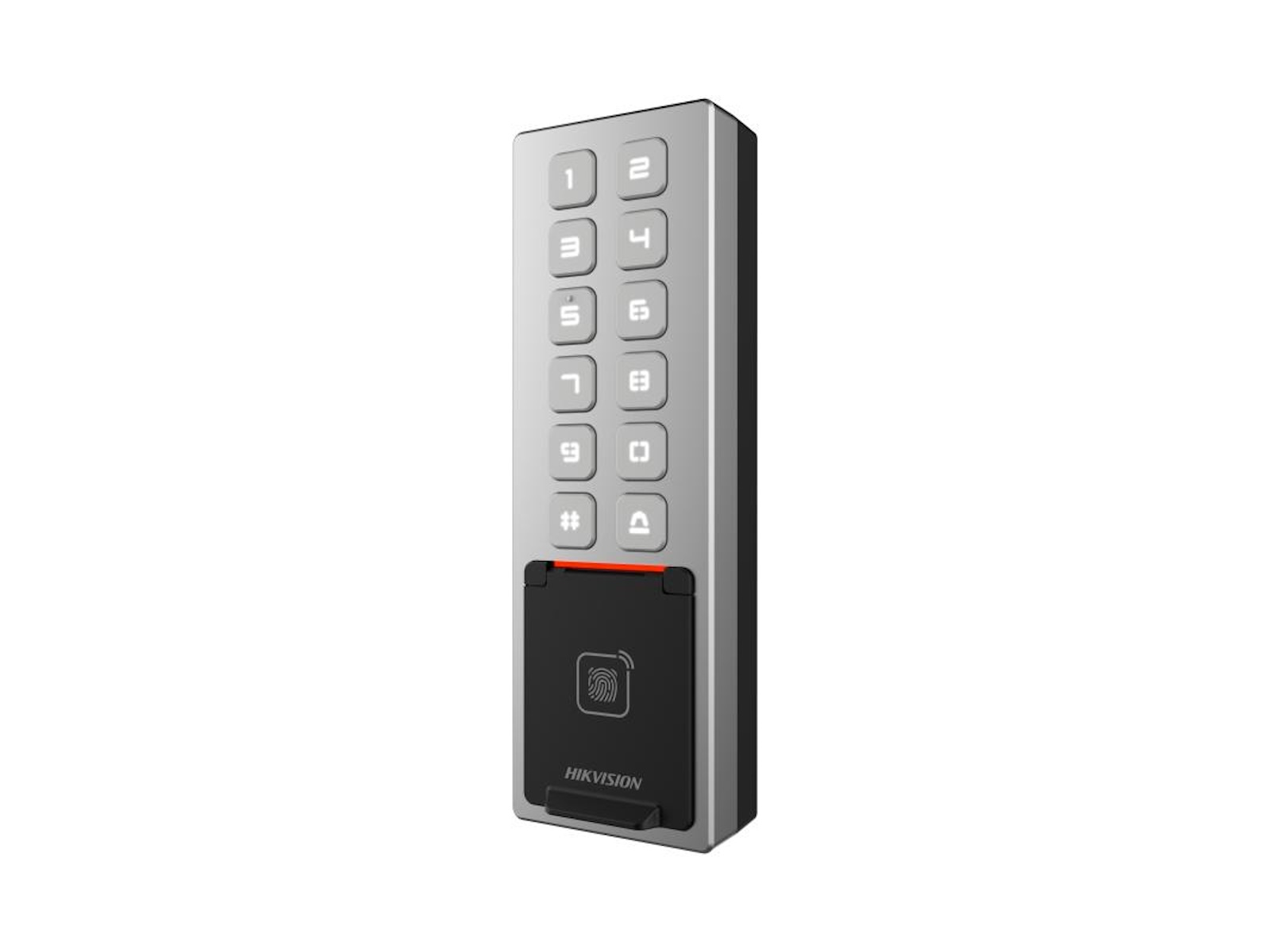

Hikvision Access Control Terminal

System
Operating system: Linux

Audio
Audio output: 1 built-in buzzer

Network
Bluetooth: Support
Wired network: 10/100 Mbps self-adaptive
Wi-Fi: 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i

Interface
RS-485: 1, supports OSDP
Network interface: 1
Wiegand: Wiegand 26/34
Lock control: 1
Exit button: 1
Door contact input: 1
Alarm input: 2
Alarm output: 1
TAMPER: 1

Capacity
Card capacity: 10,000
Fingerprint capacity: 3000
Event capacity: 100,000

Authentication
Card type: M1 card
Card reading distance: 0 to 4 cm
Card reading duration: ＜ 1 s
Fingerprint module: Optical fingerprint module
Fingerprint comparing mode: 1:1 and 1:N
Fingerprint recognition duration: ＜ 1 s

General
Power supply: 12 VDC/1 A
Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Working humidity: 0% to 90% (no condensing)
Dimensions: 57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″)
Power consumption: ≤ 12 W
