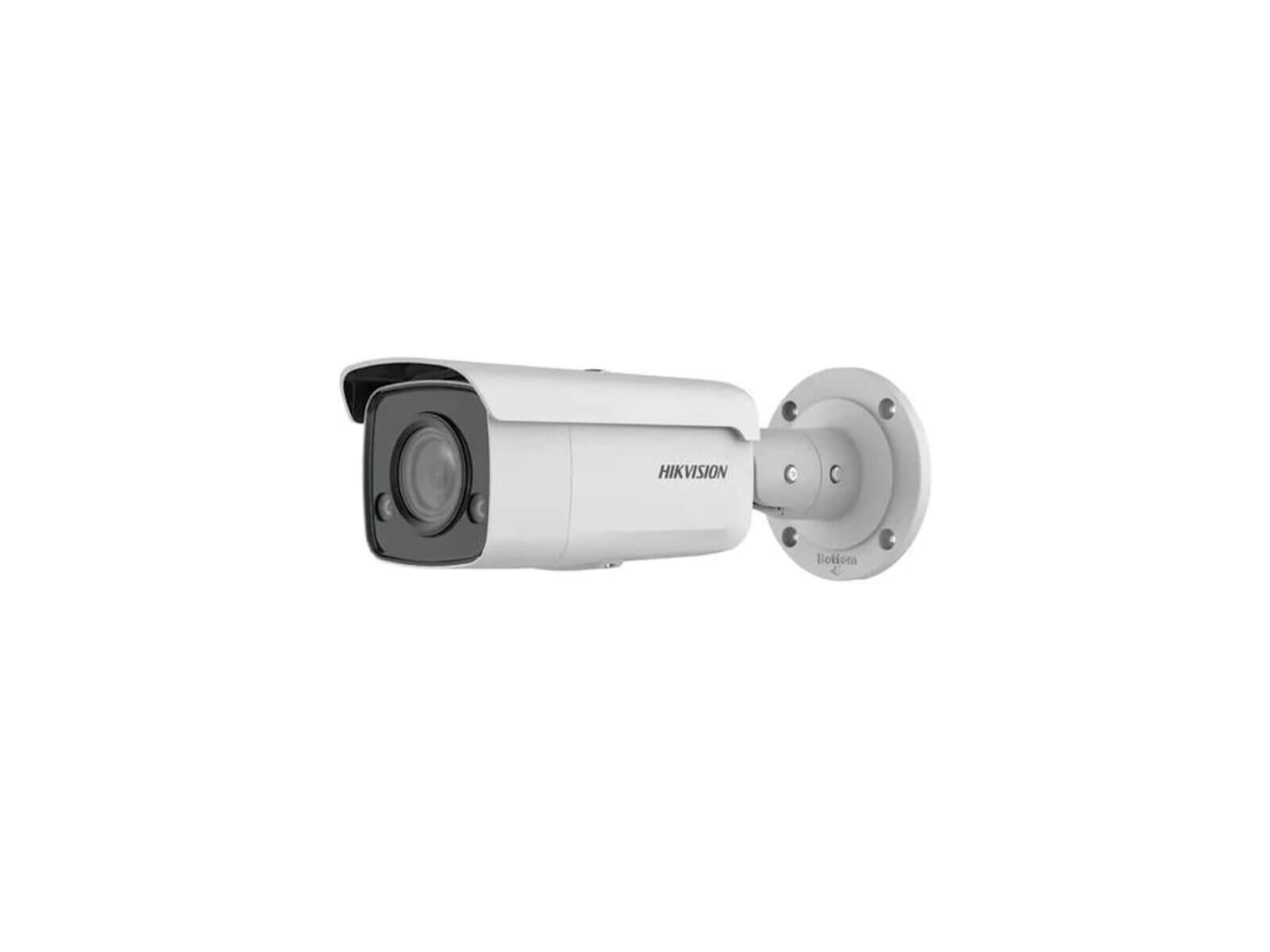

Hikvision 8MP ColorVU Fixed Bullet IP Camera

Camera

• Image Sensor : 1/1.2″ Progressive Scan CMOS
• Max. Resolution : 3840 × 2160
• Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed : 1/3 s to 1/100,000 s
• P/N : P/N
• Wide Dynamic Range : 130 dB
• Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Depth of Focus : 2.8 mm: 4.5 m to ∞
• Lens Type & FOV : 2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
• Aperture F1.0

DORI

• DORI : 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m

Illuminator

• White Light Range : 60 m
• Smart Supplement Light : Yes

Video

• Main Stream
  • 50 Hz:
    • 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 24 fps (3840 × 2160)
    • 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate : 32 Kbps to 16 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR/VBR
• Scalable Video Coding (SVC) : Yes
• Region of Interest (ROI) : 1 fixed region for main stream and sub-stream

Network

• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• User/Host : Up to 32 users. 3 user levels: administrator, operator and user
• Security : Password protection, complicated password, HTTPS encryption, IP address filter,
  Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
  and digest authentication for Open Network Video Interface
• Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• Image Parameters Switch Yes
• Image Settings : Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• On-board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512GB
• Hardware Reset : Yes
• Communication Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event : Scene change detection
• Linkage : Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function

• Face Capture : Yes
• Perimeter Protection
  • Line crossing, intrusion, region entrance, region exiting
  • Supports human and vehicle targets classification

General

• Power
  • 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
  • PoE: (802.3af, Class 3, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
• Web Client Language
  • 33 languages : English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
    French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
    Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
    Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function : Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• Software Reset : Yes
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Material : Front cover: metal, back cover: metal
• Camera Dimension : Ø 105 × 289.5 mm (Ø 4.1″ × 11.4″)
• Package Dimension : 385 × 190 × 180 mm (15.2″ × 7.5″ × 7.1″)
• Camera Weight Approx. : 1190 g (2.6 lb.)
• With Package Weight : Approx. 1700 g (3.7 lb.)
