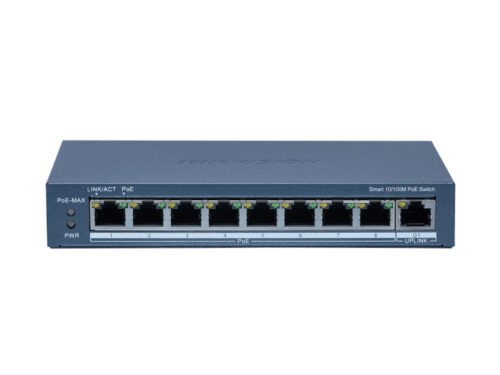

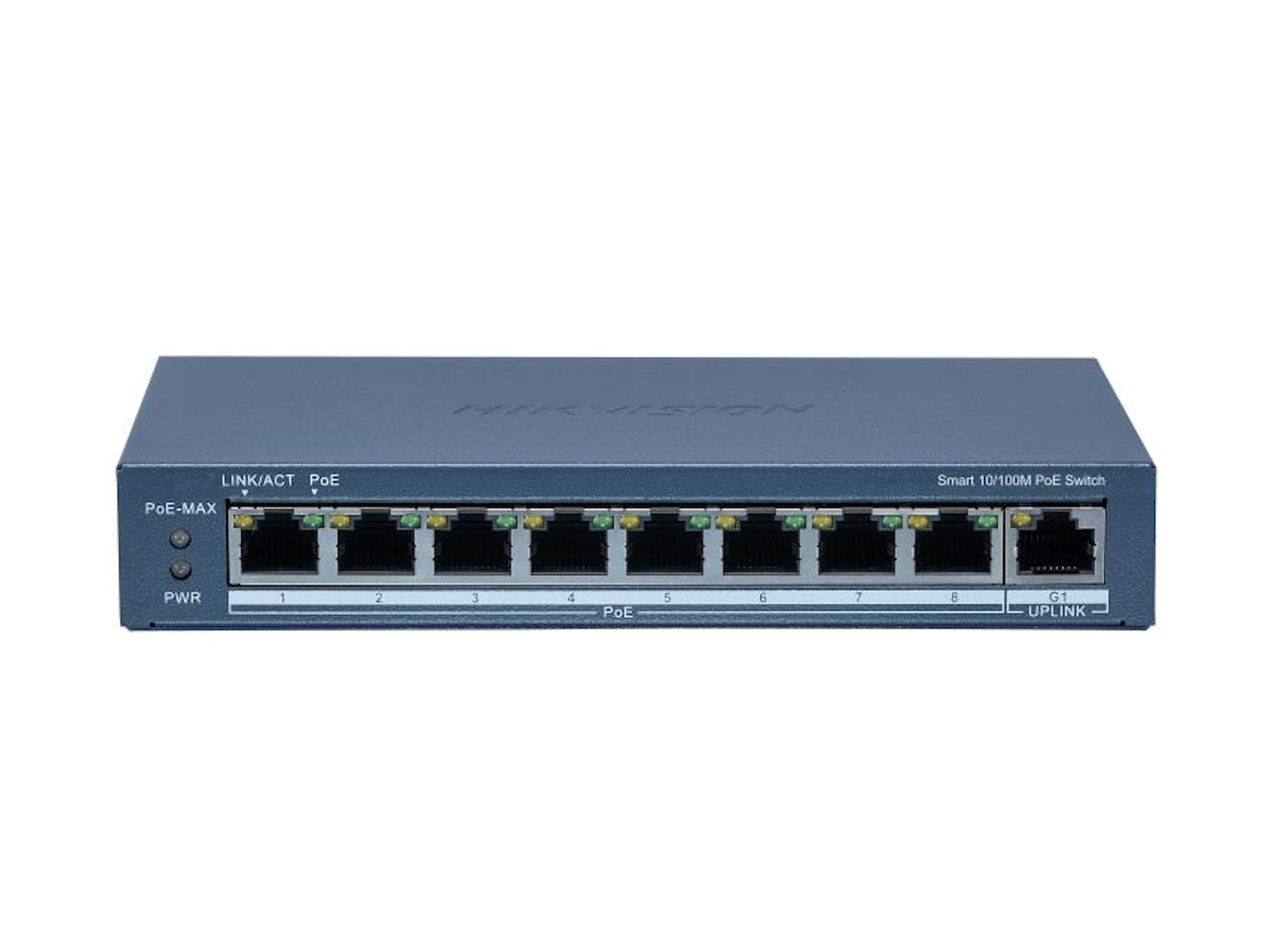

Hikvision DS-3E1309P-EI 8 Port Smart POE Switch

General
Shell: Metal material, fan-free design
Net Weight: 0.35 kg (0.77 lb)
Gross Weight: 1.114 kg (2.45 lb)
Dimensions (W × H × D): 170.00 mm × 27.60 mm × 93.10 mm (6.69” × 1.09” × 3.67”)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 54VDC，2.22A
Installation Mode: Desk-Mounted,Wall-Mounted
Max. Power Consumption: 120 W
Power Consumption in Idle: 10 W
Surge Protection: 6 kV

Network Parameters
Ports: 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
MAC Address Table: 8 K
Packet Forwarding Rate: Whole-Device Performance: 4.17 Mpps
Port Performance: 2.68 Mpps
Internal Cache: 4 Mbits
Switching Capacity: Whole-Device Performance: 5.6 Gbps
Port Performance: 3.6 Gbps

PoE Power Supply
PoE Standard: IEEE 802.3af,IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+)
PoE Port: PoE: Ports 1 to 8
Max. Port Power: 30 W
PoE Power Budget: 110 W
