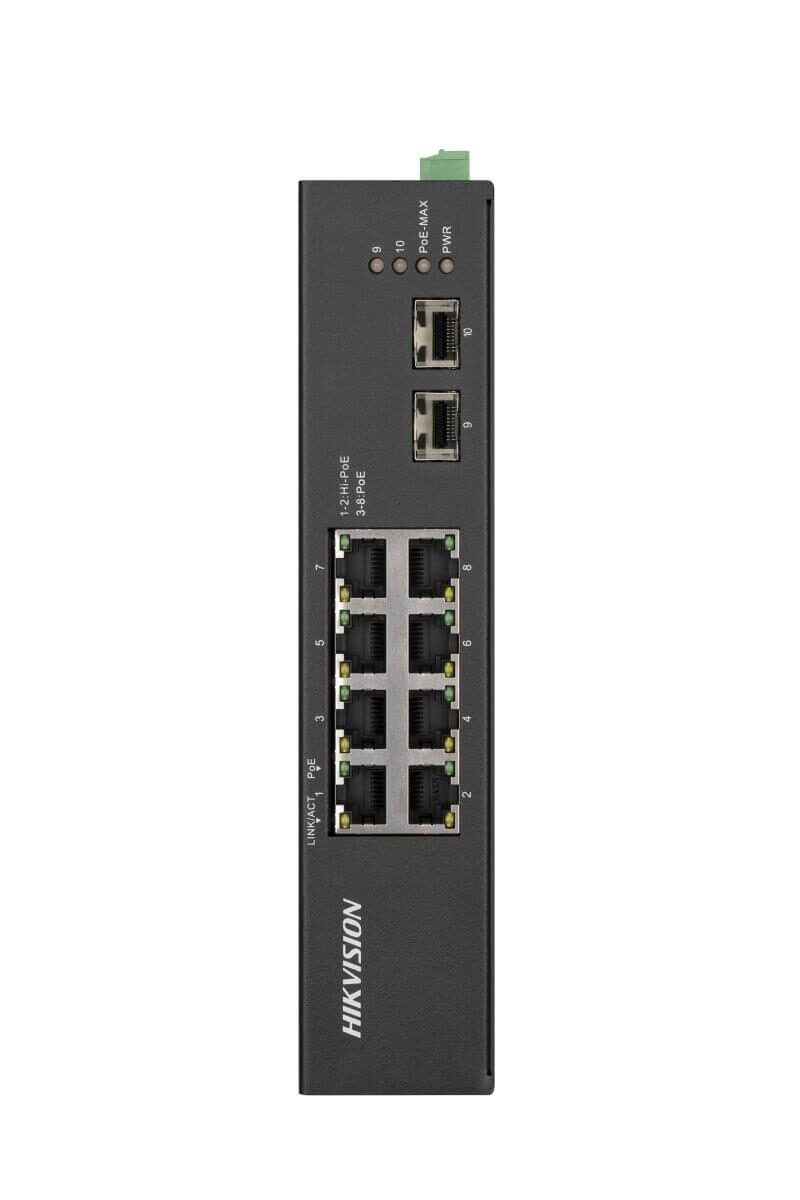

Hikvision 8 Port Gigabit Unmanaged Harsh POE Switch – DS-3T0510HP-E/HS

General

• Shell Metal material, fan-free design
• Net Weight 0.585 kg (1.29 lb)
• Gross Weight 1.11 kg (2.45 lb)
• Dimensions (W × H × D) 197.0 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
• Operating Temperature -30 °C to 65 °C (-22 °F to 149°F)
• Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity 5% to 95% (no condensation)
• Relative Humidity 5% to 95% (no condensation)
• Power Supply 54VDC, 2.5A
• Max. Power Consumption 120 W
• Power Consumption In Idle 10 W
• Installation Mode Desk-Mounted,Rail
• Surge Protection 6 kV

Network Parameters

• Ports 8 × Gigabit PoE port,2 × Gigabit fiber optical port
• MAC Address Table 4 K
• Switching Capacity 20 Gbps
• Packet Forwarding Rate 14.88 Mpps
• Internal Cache 1.5 Mbits

PoE Power Supply

• PoE Standard IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-),End-span: 1/2(-), 3/6(+)
• PoE Port Hi-PoE: Ports 1 to 2 PoE: Ports 3 to 8
• Max. Port Power Ports 1 and 2: 90 W Ports 3 to 8: 30 W
• PoE Power Budget 110 W

Dialing Function

Long Range

• Ports 7 to 8: up to 300 m
• Long range performance may vary depend on camera model or cable condition.

Port Isolation

• Ports 1 to 8: port isolation mode to improve network security.

PoE Watchdog

• Ports 1 to 8: auto detect and restart the cameras that do not respond.

Approval

EMC
FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety
UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry
CE-RoHS (2011/65/EU)
