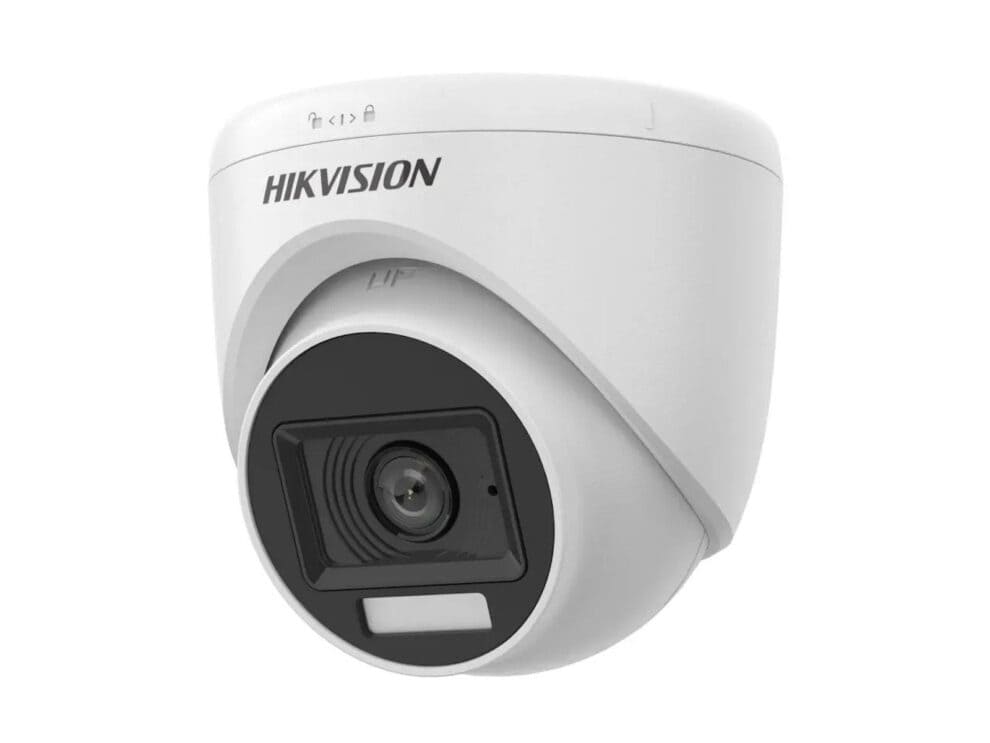

Hikvision 2MP 2.8mm Smart Hybrid Light Indoor Fixed Turret Camera

Camera

• Image Sensor : 2 MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Min. Illumination : 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night : ICR
• Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
• Signal System : PAL/NTSC

Lens

• Lens Type : 2.8 mm fixed focal lens
• Focal Length & FOV : 2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
• Lens Mount : M12

Illuminator

• Supplement Light Type : White Light, IR
• Supplement Light Range
  • IR : Up to 20 m
  • White Light : Up to 20 m


• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Image Settings : Brightness, Sharpness, Smart IR
• Frame Rate
• TVI: 1080p @ 30 fps, 1080p @ 25 fps
• AHD: 1080p @ 30 fps, 1080p @ 25 fps
• CVI: 1080p @ 30 fps, 1080p @ 25 fps
• CVBS: PAL/NTSC
• Wide Dynamic Range (WDR) : Digital WDR
• Image Enhancement : DWDR/BLC/HLC/Global
• White Balance : Auto/Manual
• AGC : Yes

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Material : Plastic
• Dimension : Ø 85 mm × 84.6 mm (3.35″ × 3.33″)
• Weight : Max. 150 g (0.33 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• Communication : HIKVISION-C
• Language : English
• Power Supply
  • 12 VDC ± 25%, Max. 3.5 W
  • *You are recommended to use one power adapter to supply the power for one
    camera.
