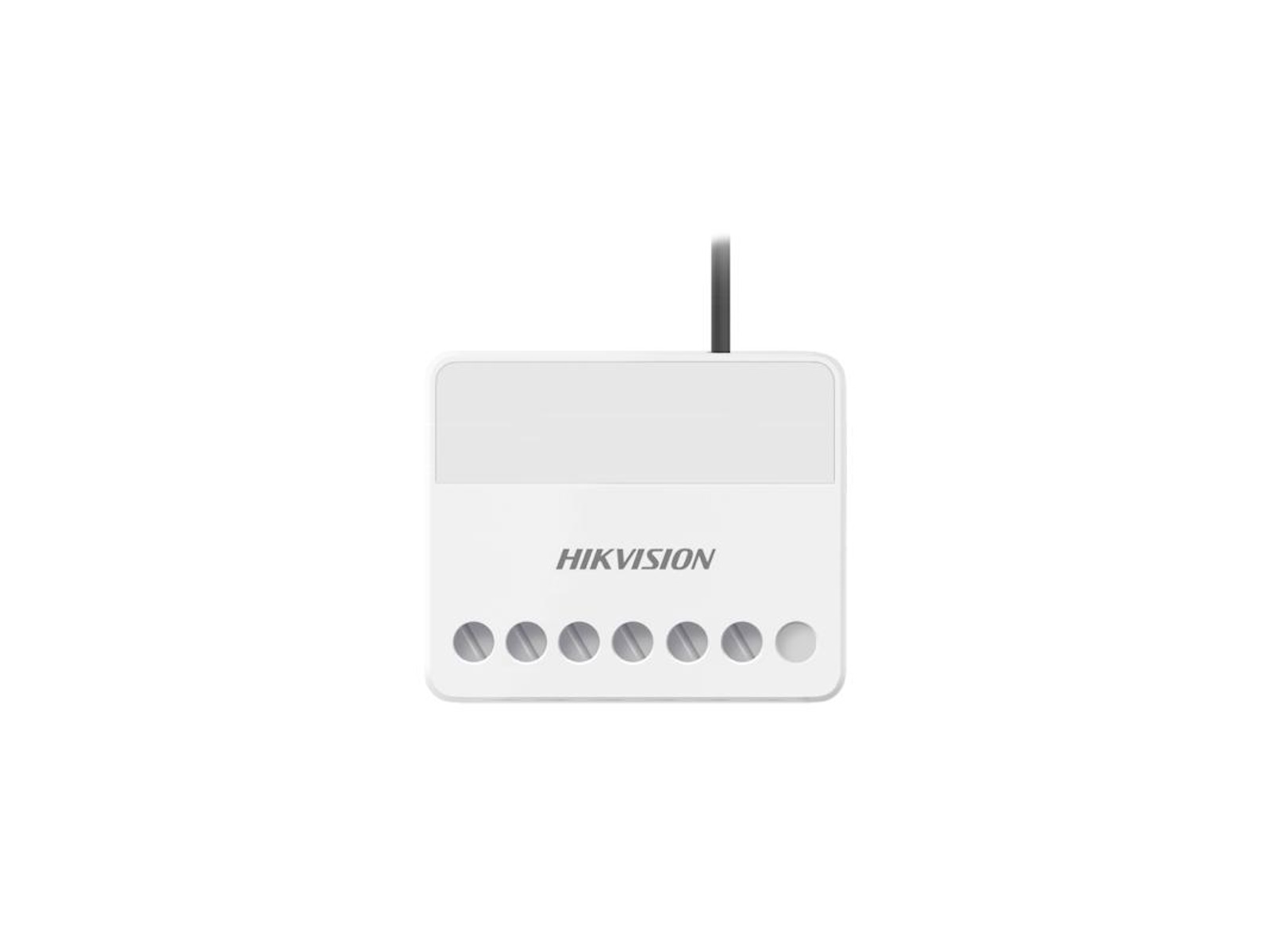

Hikvision 2-Way Wireless Relay Module

Software features

• Scenario setting : By Alarm, By Operation, By Fault, By Schedule, By Manual
• Learning button : 1, For register

Hardware features

• Serial port 1, for debug

Electrical characteristics

• Power supply DC 7 V to 24 V
• Operation humidity 10% to 90%
• Operation temperature -10 °C to 55 °C

Wireless transmission

• RF frequency 868 MHz
• RF method Two way communication
• RF modulation 2GFSK
• RF distance 1800 m
• Wireless security AES-128

Display

• LEDs status 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)

General

• Installation method Wall Mounting
• Dimension(W x H x D) 38 x 25 x 18 mm
• Shell material Plastic
• Color White
• Weight 28.5 g

Device management

• Alarm input 1 for tamper, NO/NC
• Relay output 1, NO/NC (0~36 V DC, Max 5 A)
