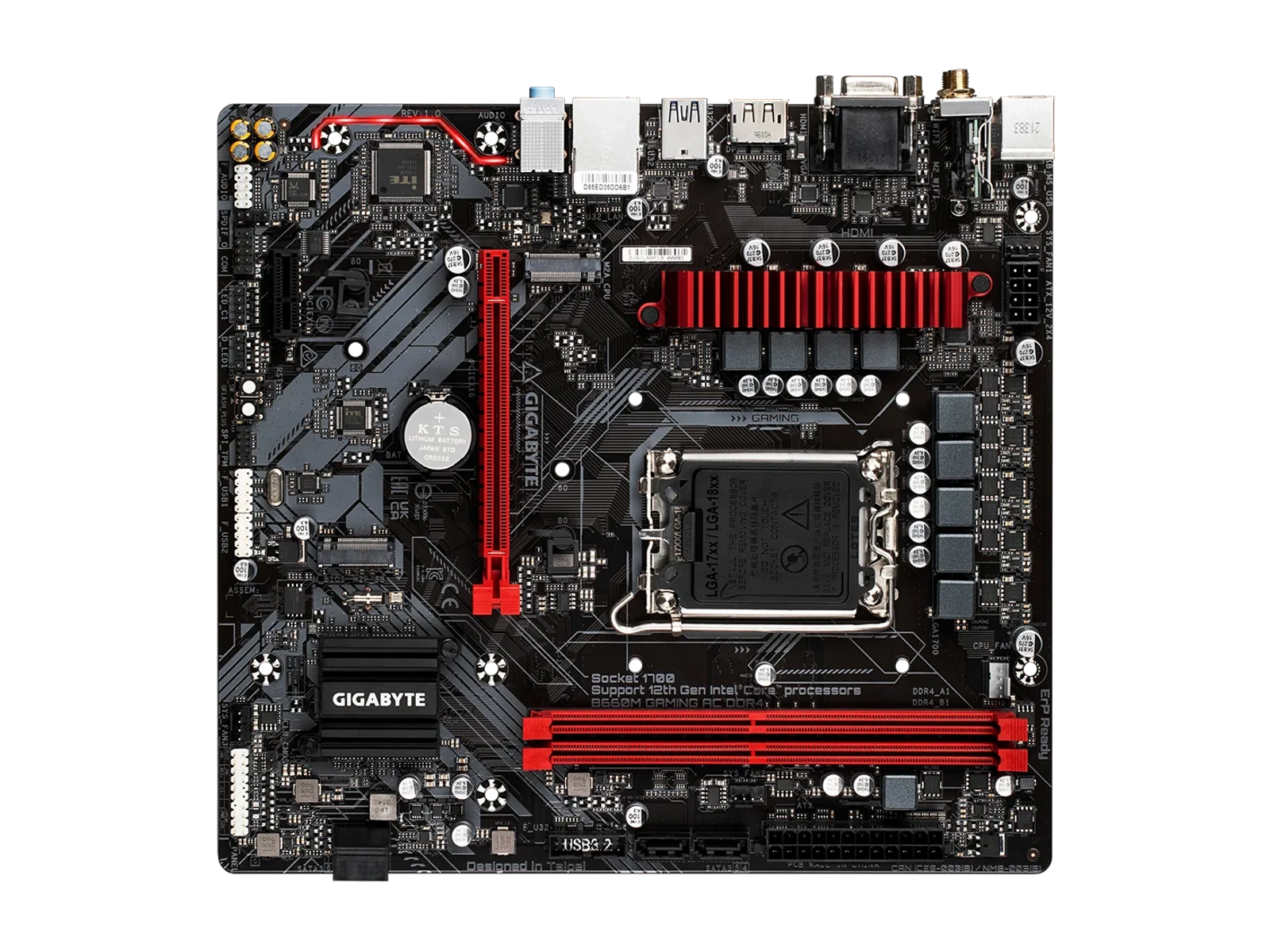

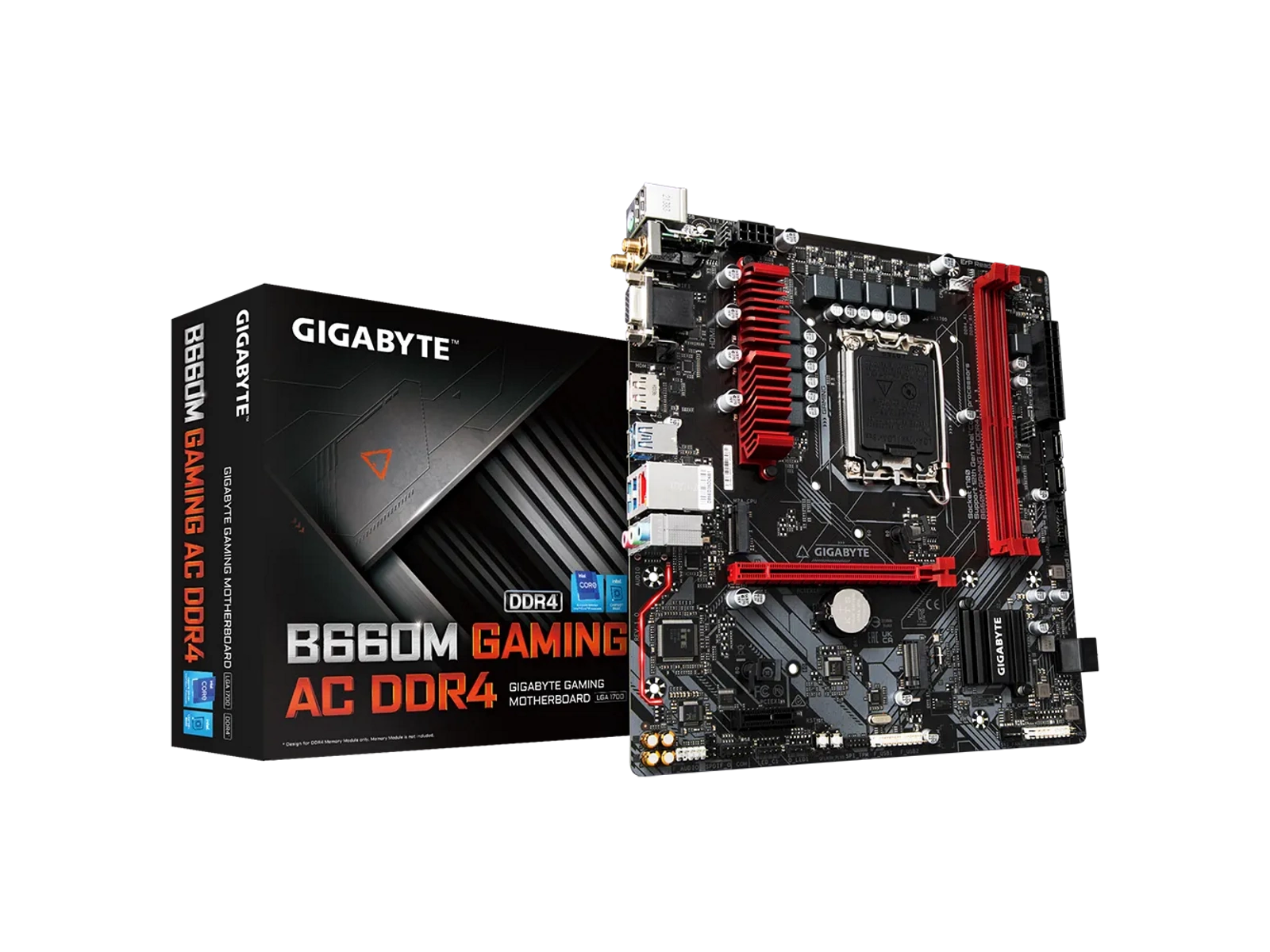

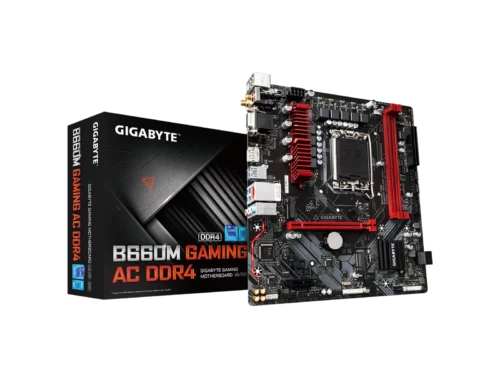

Gigabyte B660M GAMING AC DDR4 LGA 1700 Motherboard

Name: Gigabyte B660M GAMING AC DDR4 LGA 1700 Motherboard
Brand: Gigabyte
SKU: GA-B660M-GAMING-AC-DDR4
Availability: OutOfStock

Original price was: R2,459.00.Current price is: R2,229.00.

Price includes a 2% EFT discount. Card payment price is R2,274.00.

SKU: GA-B660M-GAMING-AC-DDR4 Categories: Components, Motherboards Brand: Gigabyte

Description
Delivery & Collection

Supports 12th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
Fast 2.5 GbE GAMING LAN with Bandwidth Management
WIFI 802.11ac & BT with AERO Antenna
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
Rear SuperSpeed USB 3.2 Gen 1 TYPE-C^® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU
1. LGA1700 socket: Support for 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. L3 cache varies with CPU* Please refer to “CPU Support List” for more information.
Chipset
1. Intel^® B660 Express Chipset
Memory
1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3Support for up to 3 displays at the same time
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel^® Wi-Fi AC 3168 (PCB rev. 1.0)
1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 4.2
3. Support for 11ac wireless standard and up to 433 Mbps data rateIntel^® Wi-Fi AC 9560 (PCB rev. 1.1)
1. WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.1
3. Support for 11ac 160MHz wireless standard and up to 1.73 Mbps data rate.* Actual data rate may vary depending on environment and equipment.
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2. 1 x PCI Express x1 slot
  (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Interface CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectorsSupport for SATA RAID 0, RAID 1, RAID 5, and RAID 10Intel^® Optane™ Memory Ready
  * System acceleration with Intel^® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 2 x USB 2.0/1.1 ports on the back panel
4. 4 x USB 2.0/1.1 ports available through the internal USB headersChipset+2 USB 2.0 Hubs:
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x serial port header
15. 1 x S/PDIF Out header
16. 1 x Q-Flash Plus button
17. 1 x reset button
18. 1 x reset jumper
19. 1 x Clear CMOS jumper＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

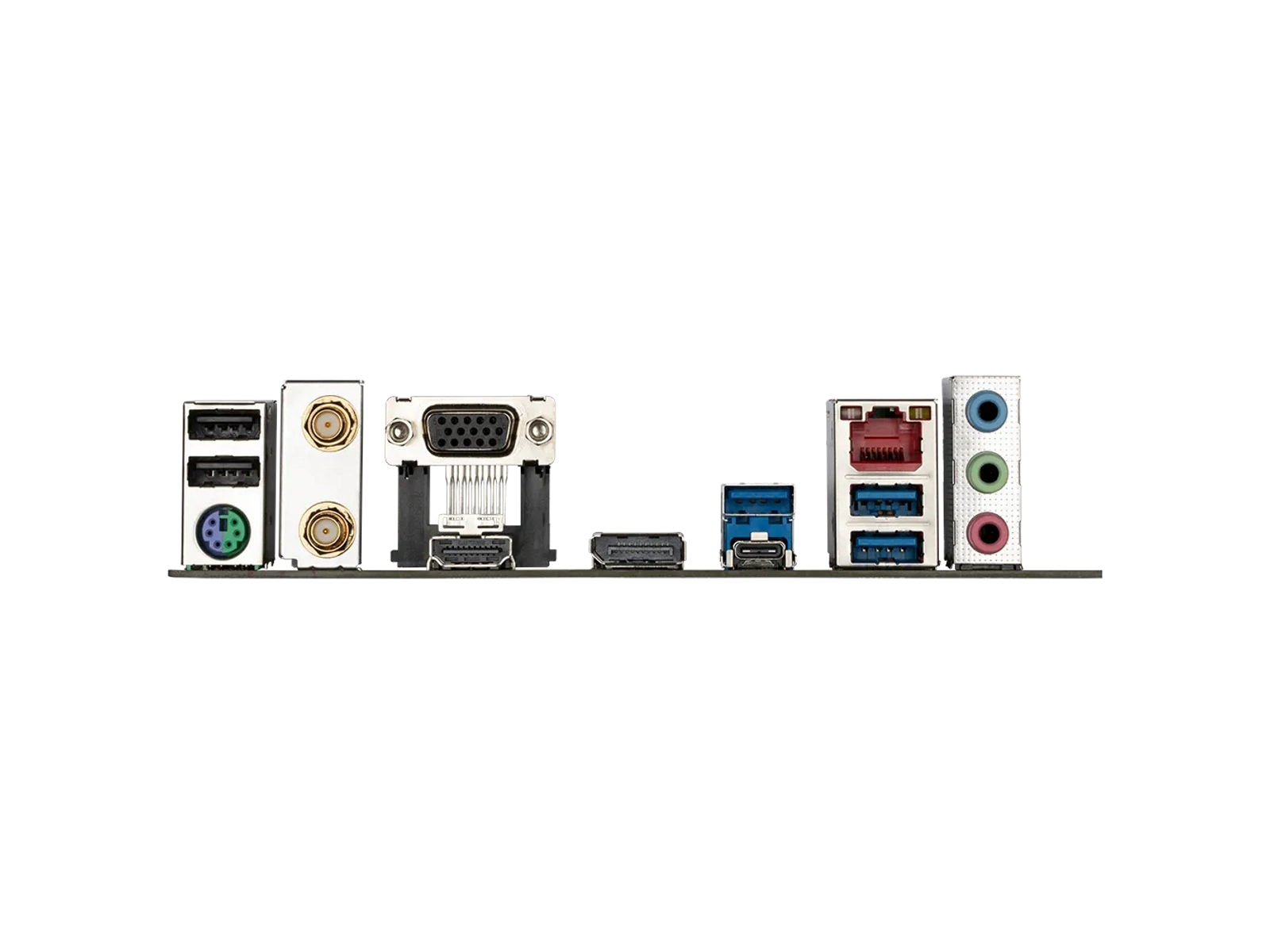

Back Panel Connectors
1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 2 x SMA antenna connectors (1T1R)
4. 1 x D-Sub port
5. 1 x HDMI port
6. 1 x DisplayPort
7. 3 x USB 3.2 Gen 1 ports
8. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
9. 1 x RJ-45 port
10. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 22.5cm
