Technical Specification
Input
Input Connection: C14
Input Nominal Voltage: 230V default (220/230/240V)
Nominal Frequency: 50/60 Hz
Input Power Factor: >.99
Input Voltage Range: 176-300 V (100 V-300 V with derating)
Input Frequency Range: 40-70 Hz
Output

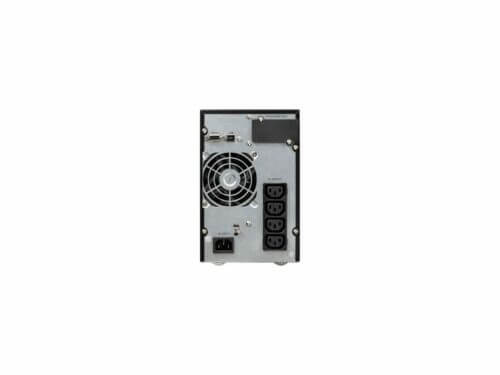

Output connection: (4) C13
Voltage: 230V
VA rating: 1000 VA
Wattage: 800 W
Output power factor: 0.8
Output voltage range: 220/230/240 V +/- 2%
Output waveform: Sine wave
Output nominal voltage: 230V default (220/230/240V)
Voltage distortion output (linear load) – max: 3
Feed type: 1
Topology: Online/Double-conversion
Battery
Battery Type: Sealed, lead-acid
Battery Replacement: Replaceable batteries
Warning:
Charging and discharging a battery multiple times a day will significantly deteriorate its performance. Please note the limitations of each battery technology:
- Lead-acid batteries can only be discharged up to 50% before irreversible damage occurs.
- Gel lead-batteries can often be discharged up to 70% before irreversible damage occurs.
- Lithium batteries can be fully discharged if they are protected by a Battery Management System.
Due to the above limitations, loss of battery capacity is not covered under warranty.
