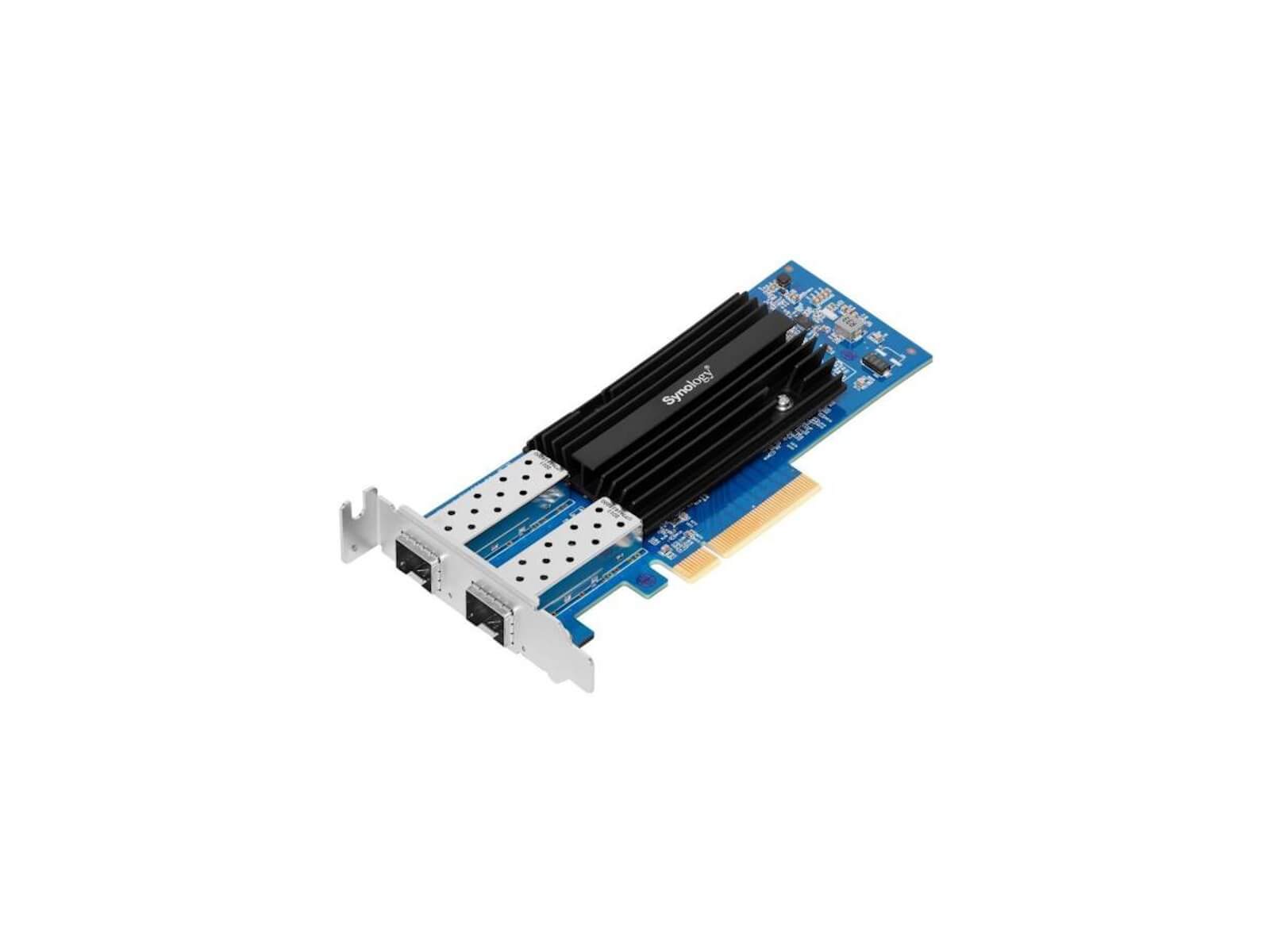

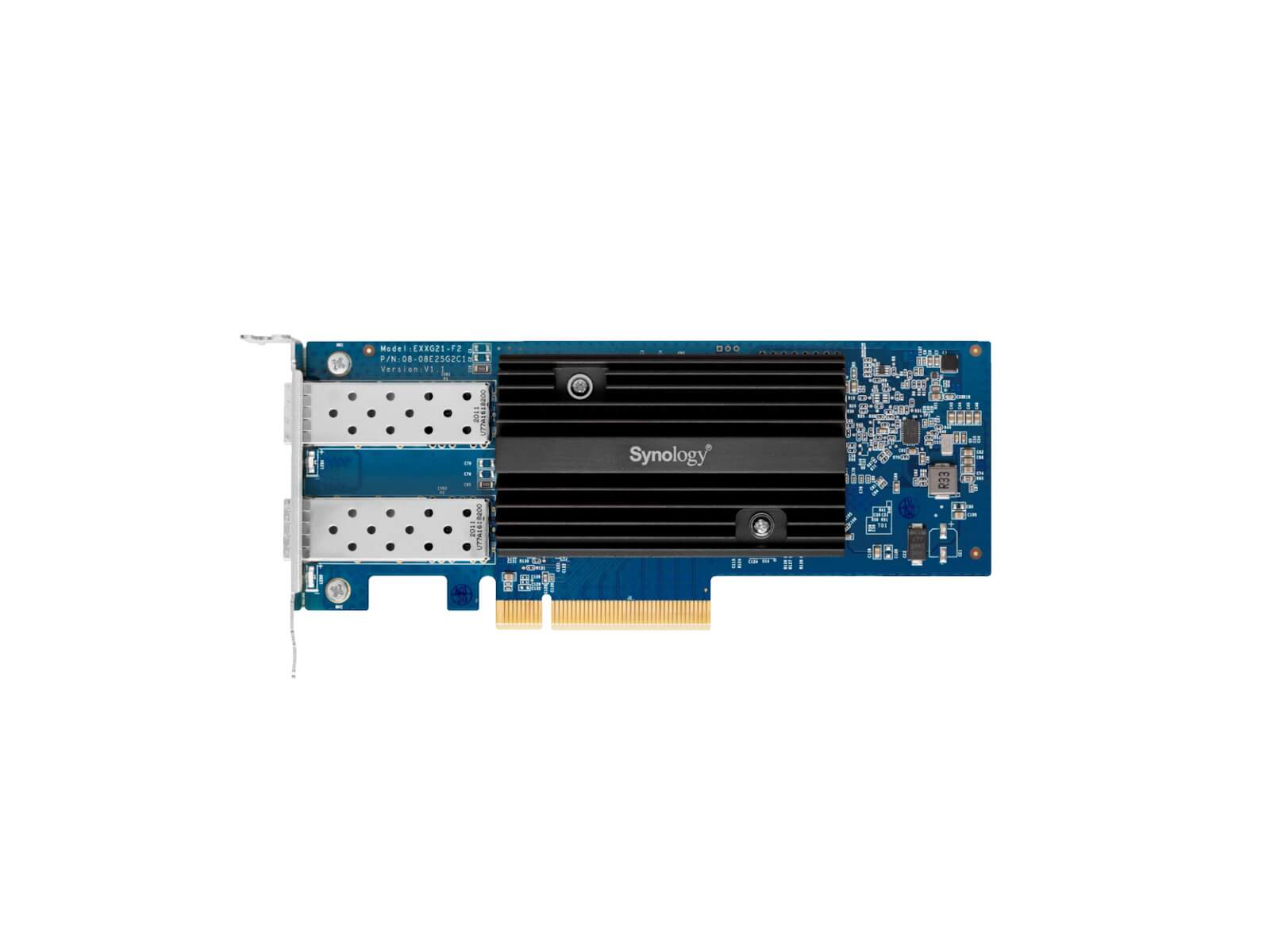

Synology Dual Port 10GbE SFP+ Add-in Card

• High Bandwidth
Two 10GbE ports support high-performance
storage applications
• Flexible SFP+ Options
Supports Optical SR, Optical LR, and DAC
modules to optimize connectivity for distance
or TCO
• Built for Synology by Synology
Built and designed for maximum
performance and reliability in Synology

Technical Specifications
Hardware
Host Bus Interface PCIe Gen: 3.0 x8 (x4 link)
Bracket Height: Low-profile and full height
Size (Height x Width x Depth): 69 mm x 168 mm x 17.3 mm
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity: 5% to 95% RH
Note • Supports PCIe up configure to reduce link width to conserve power

Network
IEEE Specification Compliance • IEEE 802.3ae 10 Gbps Ethernet
• IEEE 802.3ad Link Aggregation
Connector: SFP+
Data Transfer Rate: 10 Gbps
Network Operation Mode: Full Duplex

Supported Features
• Support for 1.5 to 9 KB Jumbo Frames
• Offloaded storage over Ethernet
• Non-offloaded storage over Ethernet
• TCP/UDP Checksum Offloading
• Large Send Offload (LSO)
• Generic Receive Offload (GRO)
• Generic Segmentation Offload (GSO)
• TCP Segmentation Offload (TSO)
• Receive Side Scaling (RSS)
• Transmit Side Scaling (TSS)
