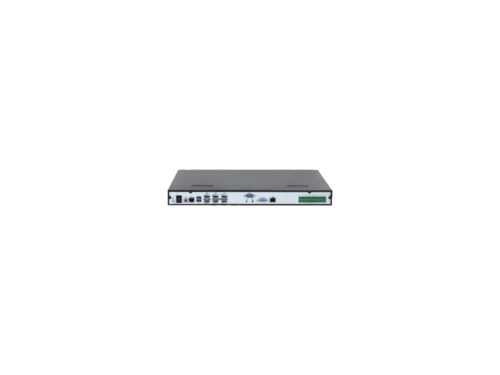

Dahua Ultra-HD Network Video Wall Decoder

Performance
Alarm input channels: 8
Alarm output channels: 8
Operating system software: Linux
Video codecs: H.265+/H.265/H.264/MJPEG/MPEG2/MPEG4
Audio codecs: PCM/G.711/AAC
Maximum frame rate: 30 fps

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
HDMI output: Yes
HDMI ports quantity: 6
RS-485 ports: 1
RS-232 interface: Yes
Line-in: Yes
Microphone in: Yes
DC-in jack: Yes

Features
Rack capacity: 1U
On/off switch: Yes
Product colour: Black

Processor
Built-in processor: Yes

Power
Power consumption (typical): 60 W
Output current: 5 A
Operating voltage: 12 V

Operational conditions
Operating temperature (T-T): -10 – 55 °C
Operating relative humidity (H-H): 10 – 95%

Weight & dimensions
Width: 440 mm
Depth: 322,2 mm
Height: 44 mm
Weight: 3,2 kg
Package weight: 3,5 kg
