Camera
- Image Sensor : 1/2.8″ CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- ROM : 128 MB
- RAM : 512 MB
- Scanning System : Progressive
- Min. Illumination:
- 0.005 Lux@F2.0 (Color,30 IRE)
- 0 lux (Illuminator on)
- S/N Ratio : > 56 dB
Lens
- Lens Type : Fixed-focal
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : 2.8 mm:F2.0
- Field of View :
- Horizontal: 105°;
- Vertical: 58°;
- Diagonal: 118°
- Iris Control : Fixed
- Close Focus Distance : 0.5m
DORI Distance

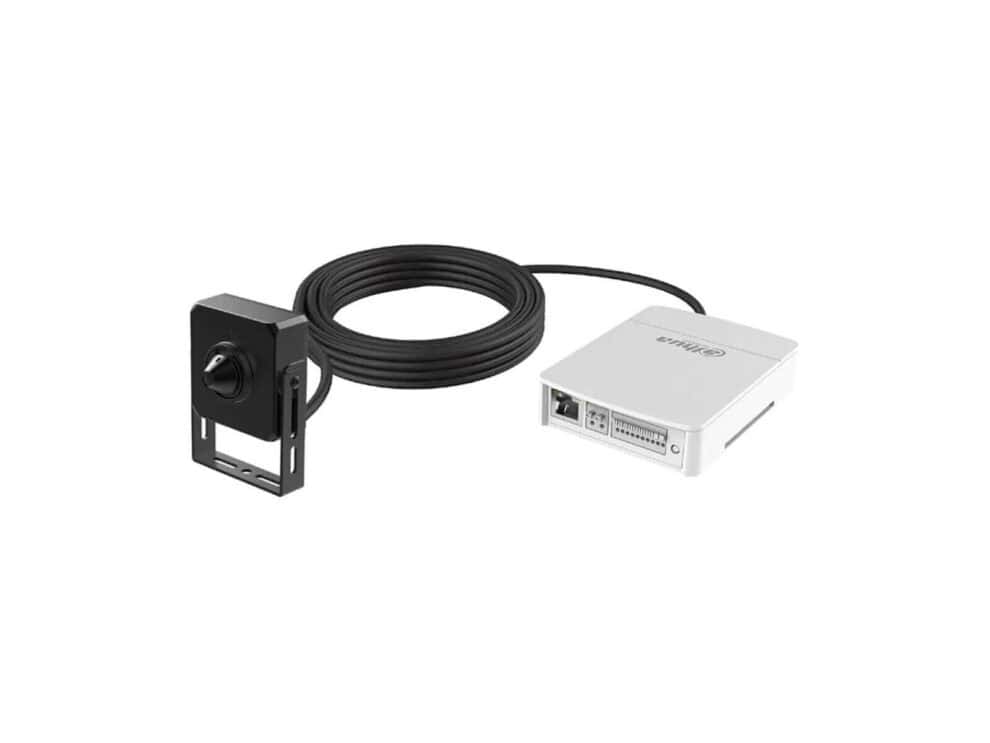

- Lens : IPC-HUM8241-L4
- Detect : 42.1 m (138.1 ft)
- Observe : 16.8 m (55.1 ft)
- Recognize : 8.4 m (27.6 ft)
- Identify : 4.2 m (13.8 ft)
Intelligence
- IVS (Perimeter Protection) : Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection
of vehicle and human); loitering detection, people gathering, and parking detection - Face Detection : Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face
exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and
8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face
or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting - Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event
videos
Video
- Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Smart Codec Smart : H.265+; Smart H.264+
- Video Frame Rate
- Main stream : 1920 × 1080 @25/30 fps
- Sub stream : 704 × 576 @25 fps; 704 × 480 @30 fps
- Third stream : 1920 × 1080 @25/30 fps
- Stream Capability : 3 streams
- Resolution : 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240) - Bit Rate Control : CBR/VBR
- Video Bit Rate
- H.264: 3 kbps–20480 kbps
- H.265: 3 kbps–20480 kbps
- Day/Night : Color/B/W
- BLC : Yes
- HLC : Yes
- WDR : 120 dB
- White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control : Manual; auto
- Noise Reduction : 3D NR
- Motion Detection : OFF/ON (4 areas, rectangular)
- Region of Interest (RoI) : Yes (4 areas)
- Defog : Yes
- Smart Illumination : Yes
- Image Rotation : 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower)
- Mirror : Yes
- Privacy Masking : 4 areas
Audio
- Built-in MIC : Yes
- Built-in Speaker : Yes
- Audio Compression : G.711a; G.711Mu
Alarm
- Alarm Event : No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion
detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking
detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection , and security exception.
Network
- Network Port : RJ-45 (10/100 Base-T)
- SDK and API : Yes
- Network Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- Cyber Security : Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
- Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
- Storage : FTP; SFTP; Micro SD card (Support max. 256 G); NAS
- Browse
- IE: IE8, IE9, and IE11
- Chrome
- Firefox
- Management Software : Smart PSS; DSS; DMSS
- Mobile Client iOS; Android
Port
- Audio Input : 1 channel (3.5 mm JACK port)
- Audio Output : 1 channel (3.5 mm JACK port)
- Alarm Input : 2 channels in: 5 mA 3V–5V DC
- Alarm Output : 2 channels out: 1,000 mA 30V DC/500 mA 50V DC
Power
- Power Supply : 12V DC/PoE (802.3af)
- Power Consumption :
- Basic: 2.3W (12V DC); 2.8W (PoE)
- Max. (Intelligence + WDR): 3.7W (12V DC); 4.5W (PoE)
Environment
- Operating Temperature : –40°C to +60°C (–40°F to 140°F)
- Operating Humidity : ≤ 95%
- Storage Temperature : –40°C to +60°C (–40°F to 140°F)
Structure
- Casing : Metal
- Product Dimensions :
- E1: 110 mm × 83 mm × 24 mm (4.33″ × 3.27″ × 0.94″)
- L4: 35 mm × 35 mm × 26.7 mm (1.38″ × 1.38″ × 1.05″)
- Net Weight : 210 g (0.5 lb)
- Gross Weight : 376 g (0.8 lb)
