Gigabit on Every Port
The 16-Port Unmanaged Gigabit Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
Innovative Design

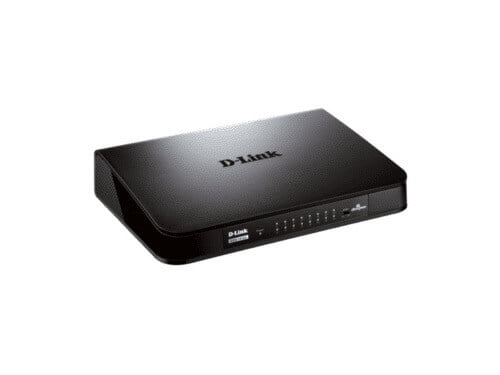

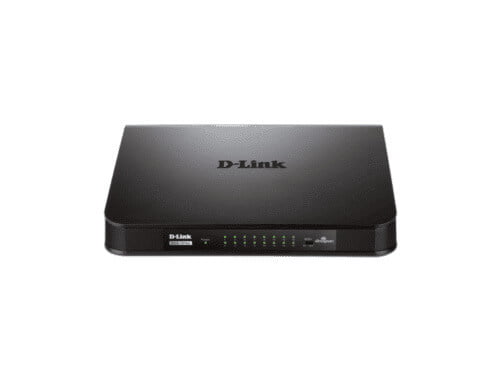

The sleek plastic case of the DGS-1016A series is an industry first for a Gigabit SOHO/SMB switch. Using a compact desktop style helps reduce heat levels and allow for a fanless design, making the switches silent, as well as economical. The 16-Port Unmanaged Gigabit Switch series is small, lightweight, wall-mountable, and ideal for any business with big needs and a small budget.
Conserves Energy
The 16-Port Unmanaged Gigabit Switch series helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.
Management features
Switch type: Unmanaged
Ports & interfaces

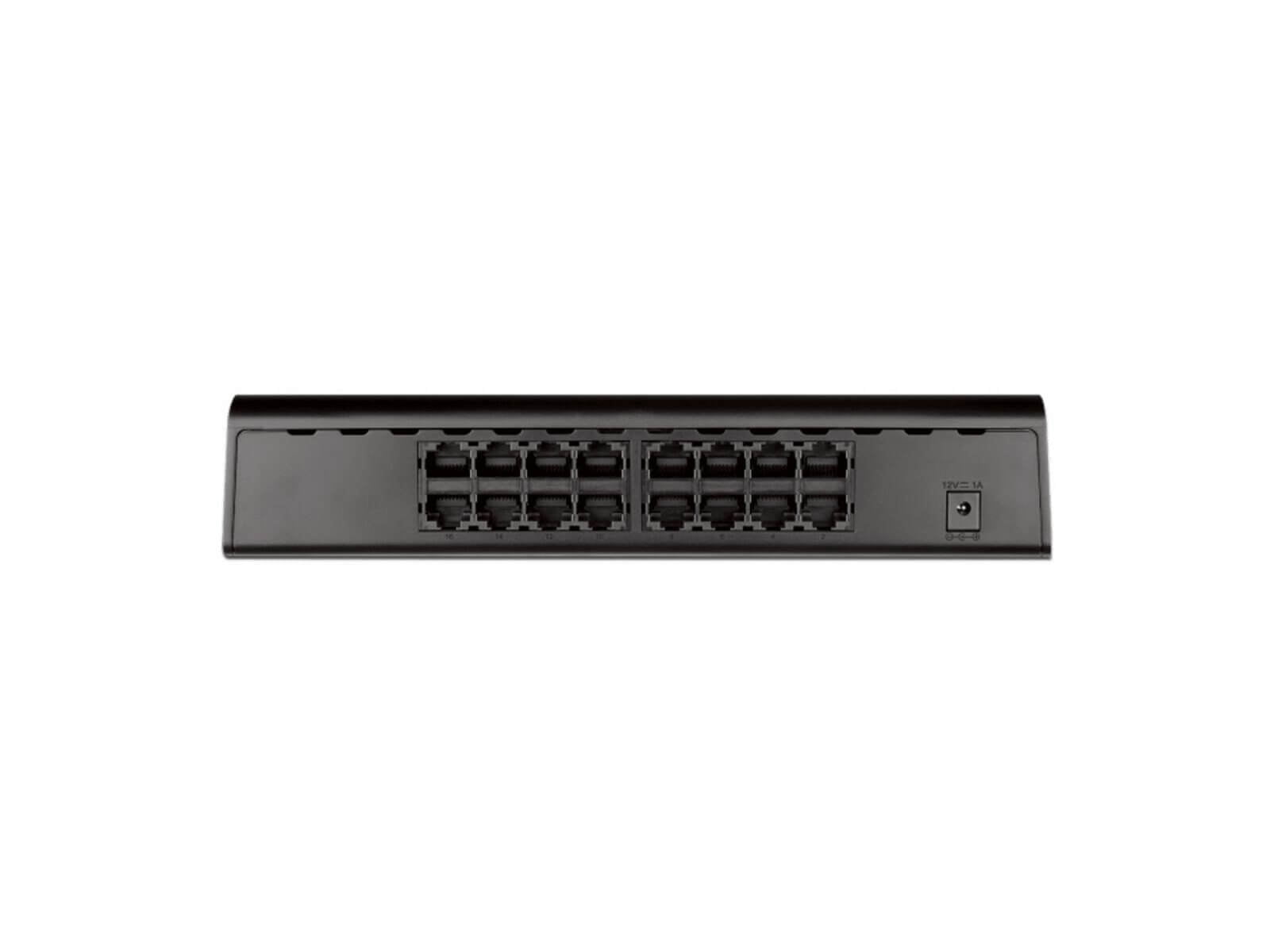

Basic switching RJ-45 Ethernet ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 16
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support: No
Full duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Data transmission
Supported data transfer rates: 10, 100,1000Mbps
Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Store-and-forward: Yes
Maximum data transfer rate: 2 Gbit/s
Jumbo frames support: Yes
