Highly Versatile Layout

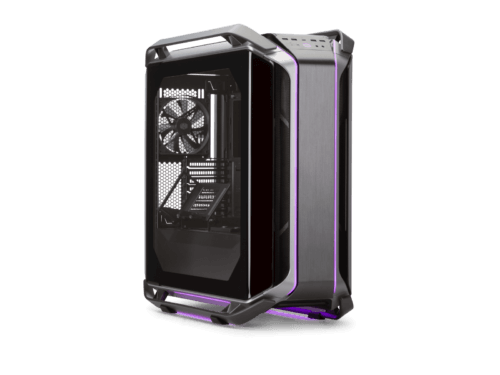

The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. Each part of the frame enables a high level of versatility. From multi-functional brackets to options in component positioning, the COSMOS C700M encourages freedom in building and out-of-the-box customizability.
Materials: Steel
Materials – Side Panel: Curved Tempered Glass, Steel
Dimensions (L x W x H): 650 x 306 x 651mm
Motherboard Support: Mini ITX, Micro ATX, ATX, E-ATX
Expansion Slots: 8
5.25″ Drive Bays: 1
2.5″ / 3.5″ Drive Bays (combo): 4+1 (in the accessory box)
Drive Bays – SSD: 4
I/O Port – USB Ports / USB 3.1 Type-C: 1
I/O Port – USB Ports / USB 3.0 Type-A: 4
I/O Port – Audio – 3.5mm Headset Jack (Audio+Mic): 1
I/O Port – Audio – 3.5mm Mic Jack: 1
I/O Port – Fans/Lighting: Fan Speed Control Button, ARGB Control Button
Pre-installed Fans – Front: 3x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin)
Pre-installed Fans – Rear: 1x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin)
Fan Support – Top: 3x 120/140mm
Fan Support – Front: 3x 120/140mm
Fan Support – Rear: 1x 120/140mm
Fan Support – Bottom: 2x 120/140mm (bracket needed)
Radiator Support – Top: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm)
Radiator Support – Front: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (requires removal of ODD cage)
Radiator Support – Rear: 120mm, 140mm
Radiator Support – Bottom: 120mm, 140mm, 240mm
Clearance – CPU Cooler: 198mm
Clearance – GFX: 490mm (w/o 3.5″ HDD BRK), 320mm (w/ 3.5″ HDD BRK)
