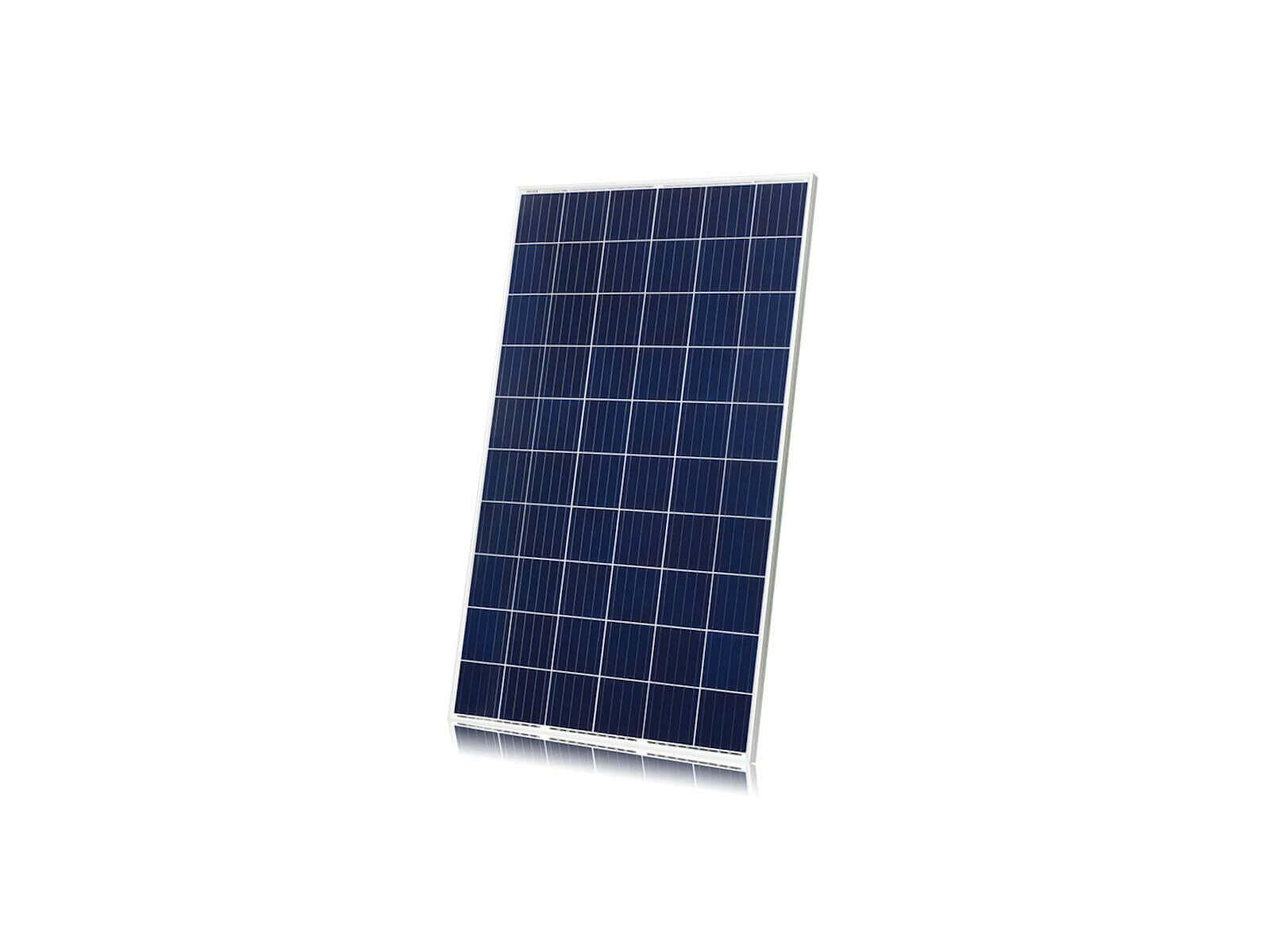

CNBM – Solar Panel, Monocrystalline Silicon Module Solar Panel – 330W, Anti Reflective Glass, High Salt & Ammonia Resistance.
Products Characteristics
- Widely using of the most popular and mature type of modules for off-grid system.
- Leading manufacturing technology in PV industry, strictly controlling the quality of raw materials and the process of producing.
- 100% EL inspection, ensures modules are defects free.
- Cells binned by current to improve module performance.
- Anti-reflective glass. Not only to increase the light absorption, but also to make the module has the function of self-cleaning in water environment, effectively reducing the power loss caused by dust.
- Outstanding performance in low-light irradiance environments.
- Excellent mechanical load resistance: Certified to withstand high wind loads(2400pa) and snow loads(5400pa).
- High salt and ammonia resistance.
- Positive power tolerance:0-+5w.
Electrical Parameters
- Rated Maximum Power: 330W.
- Power Tolerance: 0 – +5W
- Module Efficiency: 24.6%
- Open Circuit Voltage: 53.57V.
- Max Power Voltage: 46.39V.
- Short Circuit Current (Isc): 7.38A.
- Max Power Current(Imp): 7.13A.
- Temperature Coefficient of Isc: +0.6%
- Temperature Coefficient of Voc -0.33%
- Temperature Coefficient of Pmp: -0.45%
