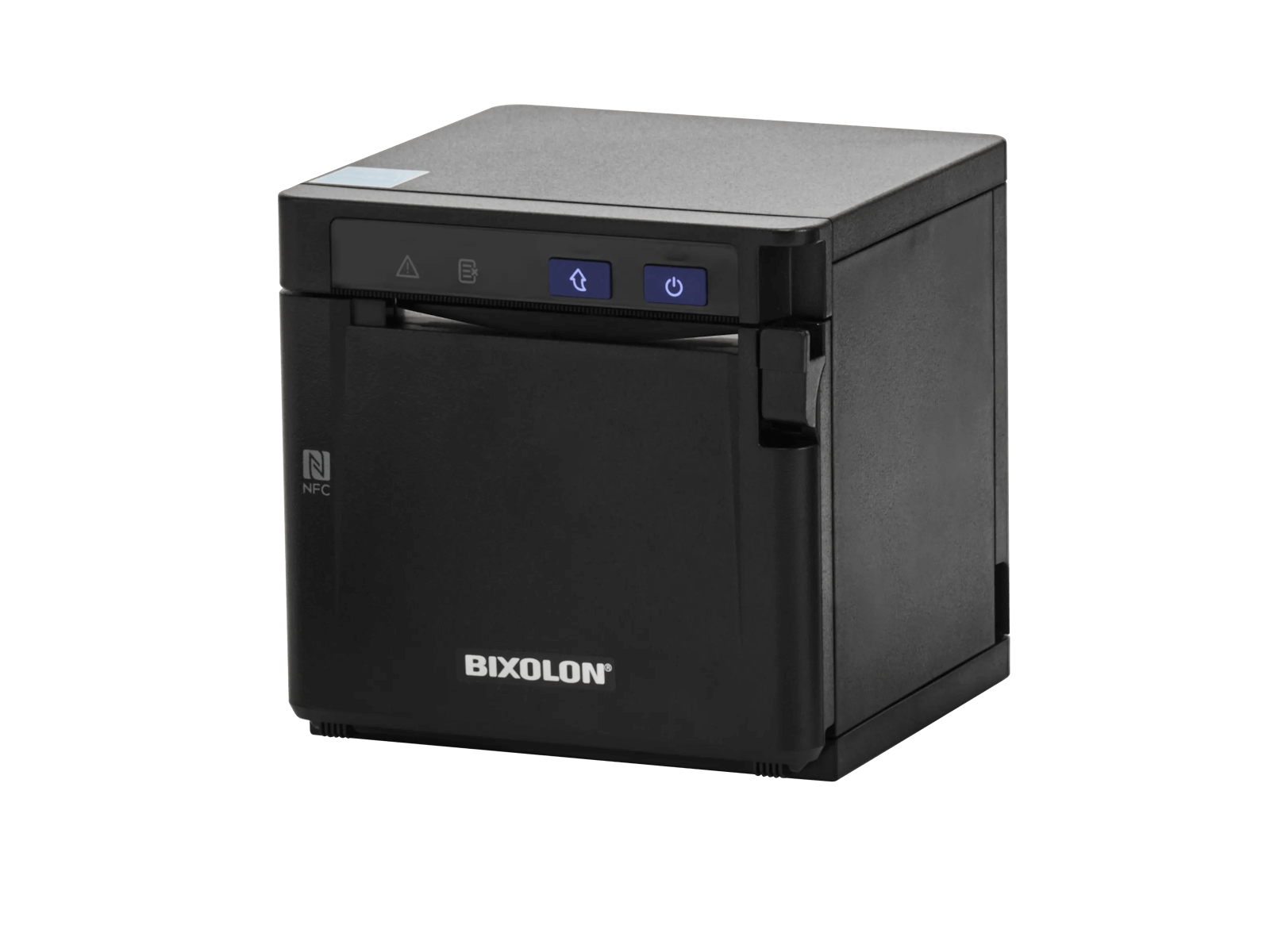

Compact Cube Design
The economic SRP-QE300 is an entry-level printer with USB and Ethernet connectivity. Producing print speeds up to 200mm/sec with a print resolution of 180dpi to produce high quality texts, graphics, barcodes and QR codes. The SRP-QE300 is ideal solution for a range of receipt and ticket applications.
Specifications
| Print Characteristics | |
| Print Method | Direct Thermal |
| Print Speed | “SRP-QE300: Up to 200 mm/sec” |
| Print Resolution | “SRP-QE300: 180dpiSRP-QE302: 203dpi” |
| Print Width | Up to 72mm |
| Sensor | Paper End, Cover Open |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | “80 mmOptional 58 mm” |
| Media Roll Diameter | Up to 80 mm |
| Media Thickness | 0.05 ~ 0.08mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| “Dimensions(WxDxH)” | “SRP-QE300 128 x 125 x 125 mm (5.03 x 4.92 x 4.92 inch)” |
| Weight | SRP-QE300: 1.13 kg (2.49 Ibs.) |
| Electrical | EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | – |
| NV Image Memory | 768 Kbytes (Mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | USB V2.0 FS + Ethernet |
| Environment Characteristics | |
| Temperature | “Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | 150 km |
| Auto Cutter | 1.5 Million Cuts |
