- – 1600 W 100 – 240 V
- – Motherboard power connector: 20+4 pin ATX
- – PC ATX 80 PLUS Titanium
- – Active 13.5 cm
- – Black, Silver
Power
Total power: 1600 W
AC input voltage: 100 – 240 V
Combined power (+3.3V): 100 W
Combined power (+12V): 1600 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over power, Overcharge, Overheating, Overload, Short circuit, Under voltage

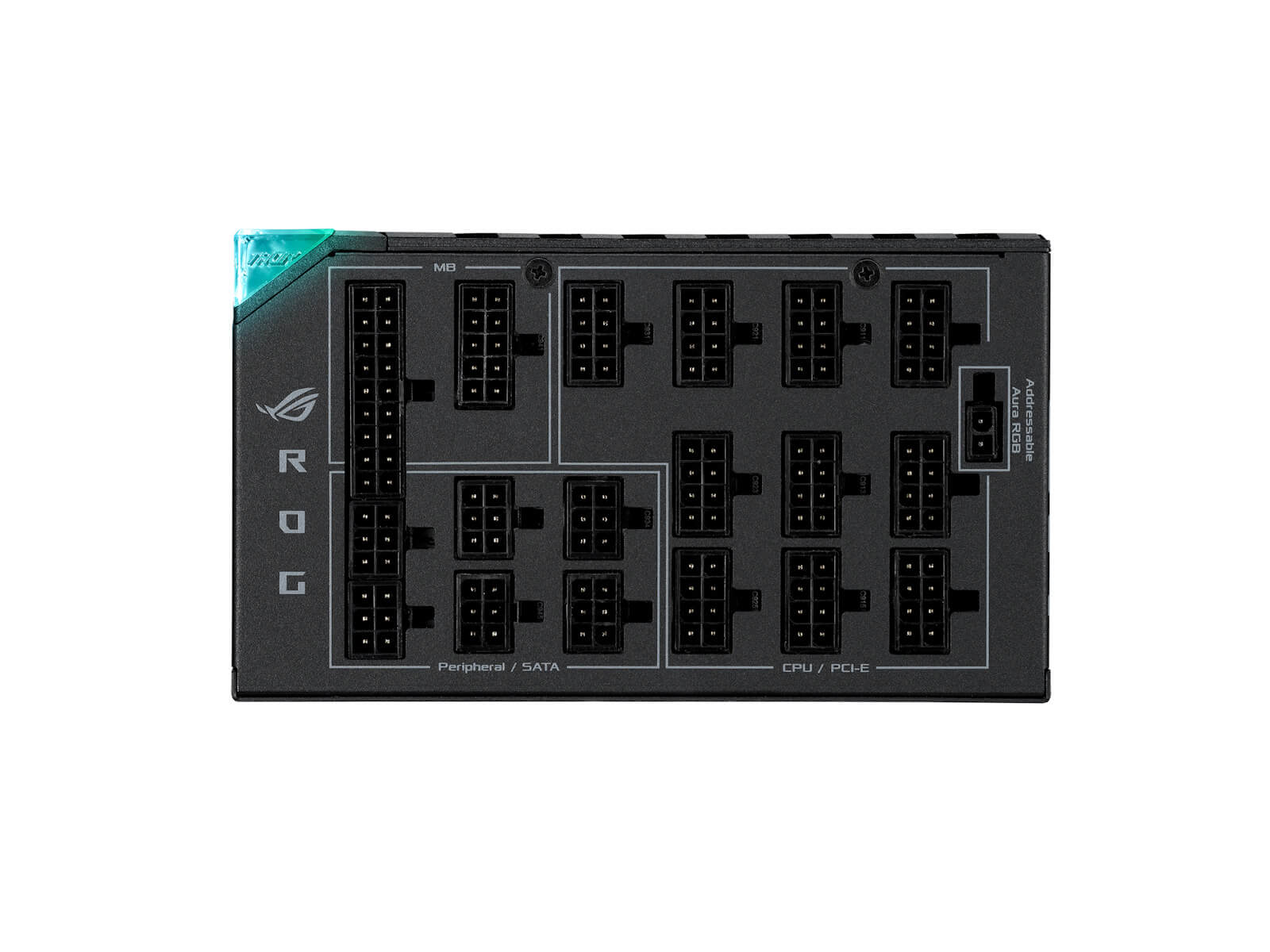

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 12
Peripheral (Molex) power connectors (4-pin): 6
PCI Express power connectors (6+2 pin): 10
PCI Express power connectors (16-pin): 1
CPU P4 connector (4-pin): 2
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
