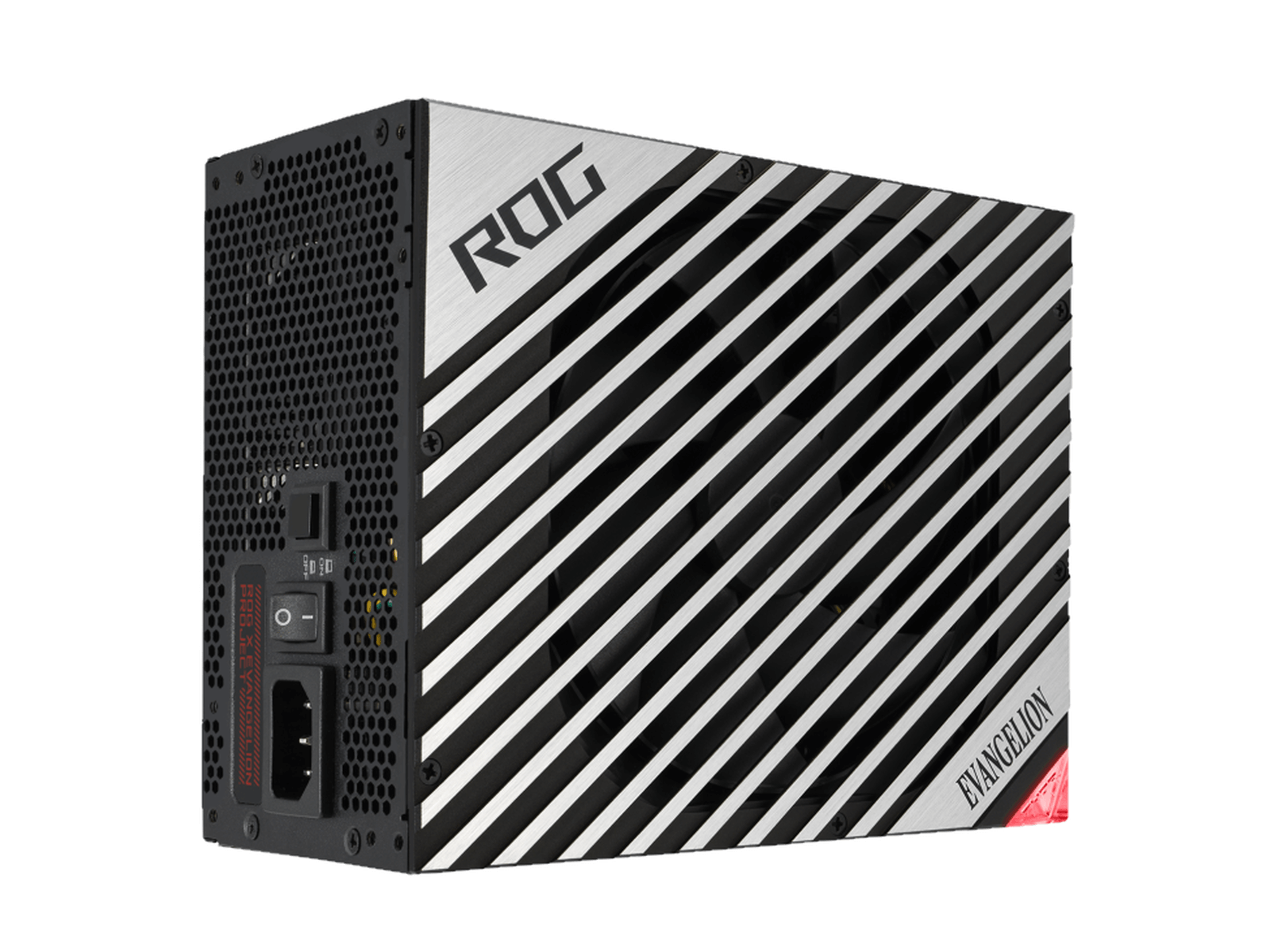

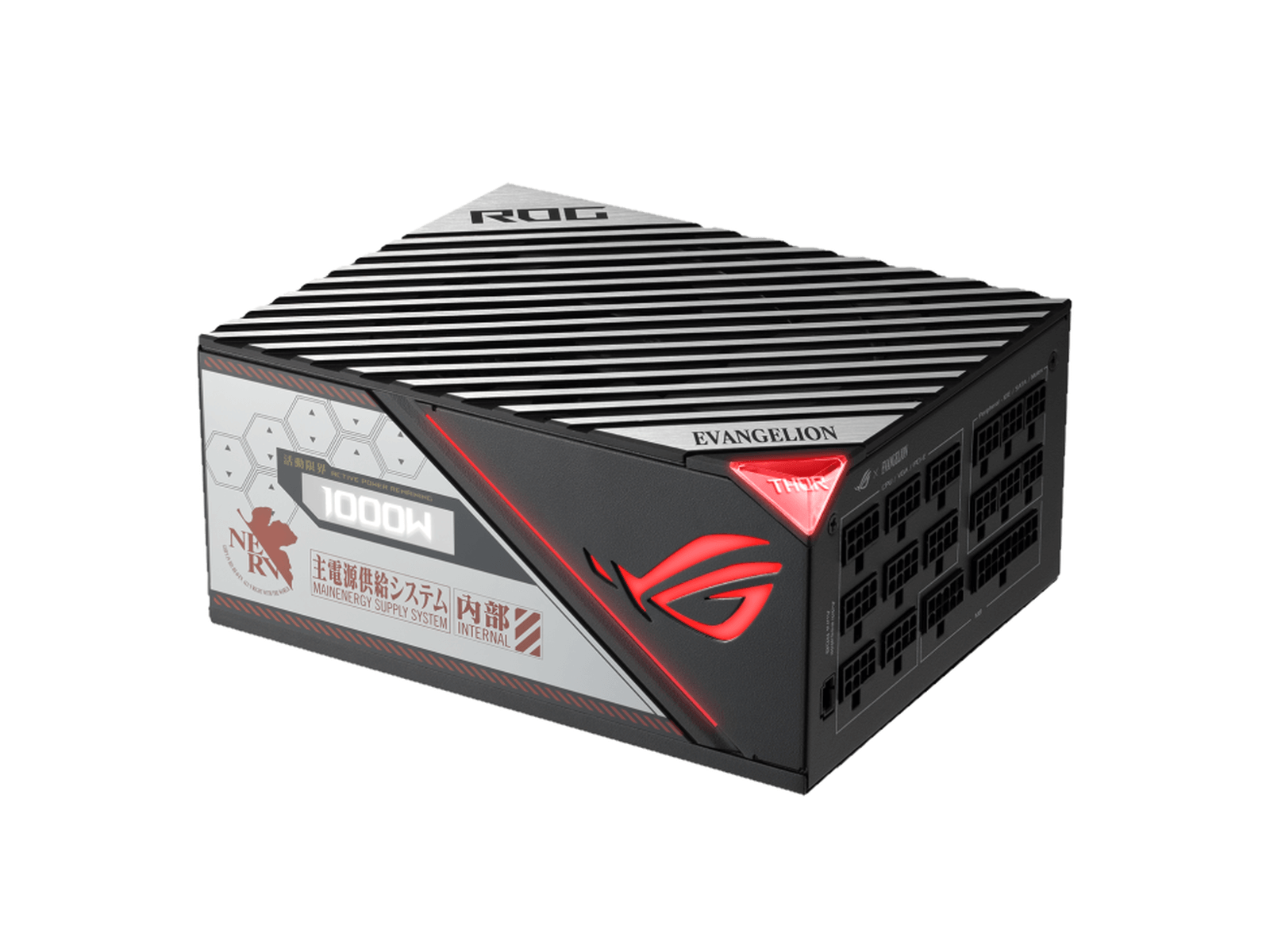

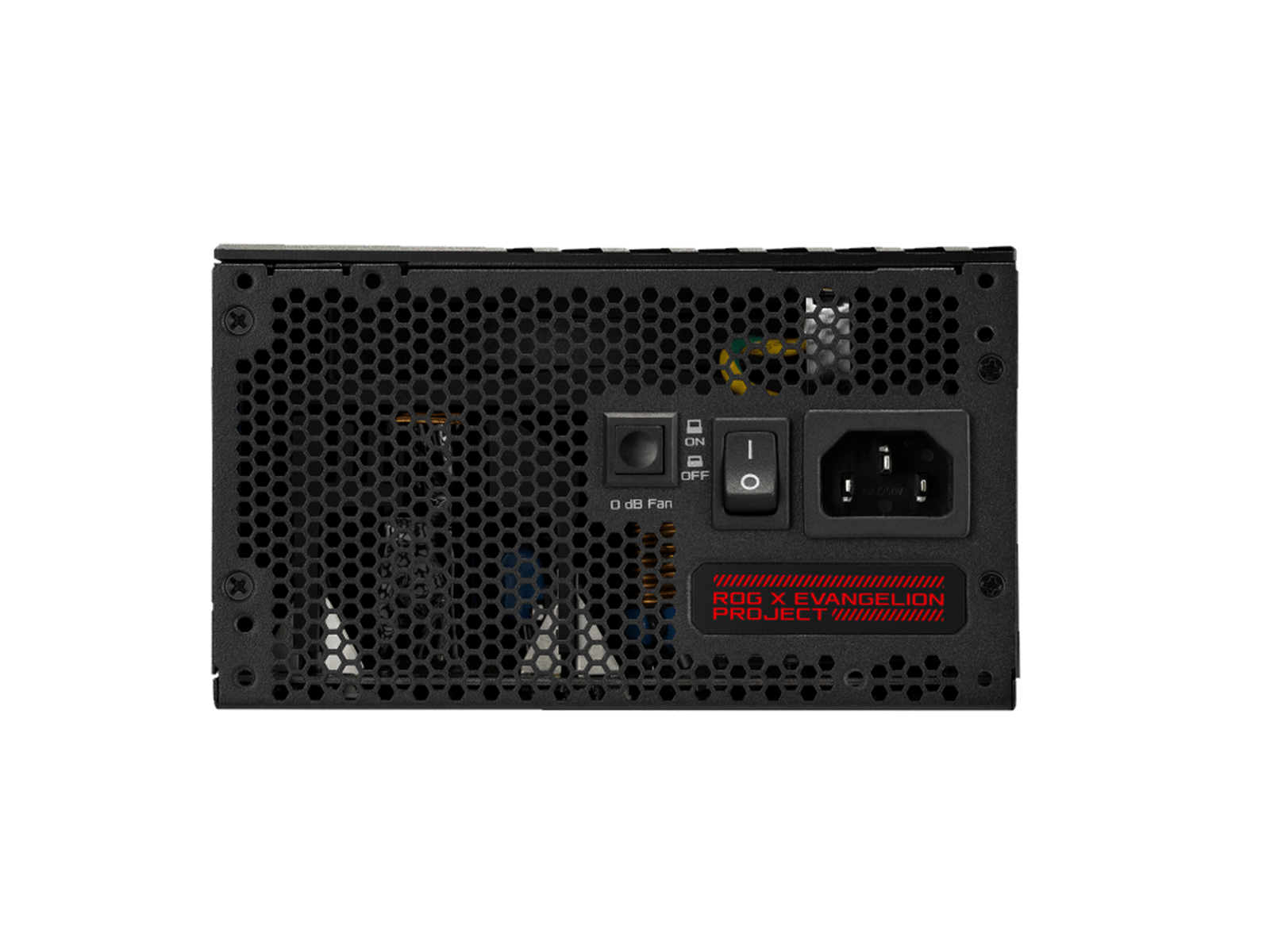

The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Thor II platinum EVA edition wears an EVA-inspired skin and wields component and cooling upgrades that enable the lowest noise levels – even during the most demanding skirmishes with the opposition.
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
Thermal Features
ROG Thermal Solution
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 83A 0.3A 3A
Combined Load
125W 125W 996W 3.6W 15W
Total Output
1000W
Connectors
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 8 SATA x 12 Peripheral x 6
