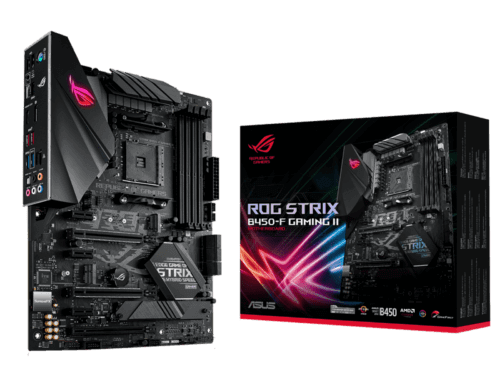

ROG Strix B450-F Gaming II delivers all the essentials needed for a well-balanced build. Designed to handle the latest 3rd Gen AMD Ryzen processors, ROG Strix B450-F Gaming II features amped-up power delivery, optimized thermal design and more stable DDR4 memory. BIOS FlashBack makes upgrading easy to give any dream build a head start, and intuitive ROG software ensures a superior gaming experience.
Processor
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Maximum number of SMP processors: 1
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4400 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Internal I/O
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 1
DisplayPort version: 1.2
S/PDIF out port: Yes
Digital audio optical out: 1
Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I211-AT
Wake-on-LAN ready: Yes
