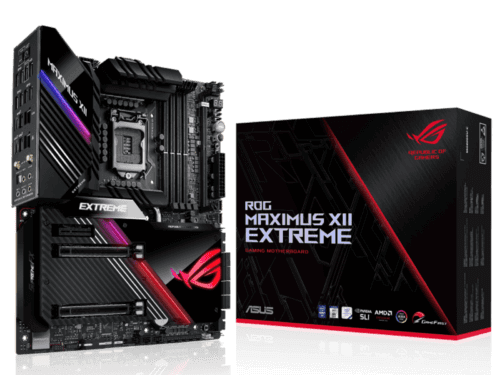

ROG MAXIMUS XII EXTREME
Intel Z490 EATX motherboard with 16 power stages, DDR4 4700 MHz (O.C.), Quad M.2, Dual USB 3.2 Gen 2 front-panel connector, USB 3.2 Gen 2×2 Type-C and Aura Sync RGB lighting
- LGA 1200 socket for 10th-gen IntelĀ® Coreā¢ desktop processors
- Optimization: Automated system-wide tuning, providing AI Overclocking and AI Cooling profiles tailor-made for your rig
- Cooling: dedicated water cooling zones, M.2 heatsink and various fan controls
- Connectivity: MarvellĀ® AQtion 10Gb, IntelĀ® 2.5Gb Ethernet , LANGaurd, Quad M.2, USB 3.2 Gen 2, and IntelĀ® Wi-Fi 6
- Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips and Philips Hue
ROG MAXIMUS XII EXTREME
CPU
IntelĀ® Socket 1200for 10th Gen IntelĀ® Coreā¢, PentiumĀ® Gold and CeleronĀ® Processors
Supports IntelĀ® Turbo Boost Technology 2.0 and IntelĀ® Turbo Boost Max Technology 3.0**
**IntelĀ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports IntelĀ® 14nm CPU
* Refer to www.asus.com for CPU support list
Chipset: IntelĀ® Z490
Memory
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
OptiMem III
* 10th Gen IntelĀ® Coreā¢i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Supports IntelĀ® Extreme Memory Profile (XMP)
Dual Channel Memory Architecture
Multi-GPU Support
Supports NVIDIA 2-Way SLIĀ® Technology
Supports AMD 3-Way CrossFireXā¢ Technology
Expansion Slots
IntelĀ® 10th Gen Processors
IntelĀ® Z490 Chipset
1 x PCIe 3.0 x4 *1
2 x PCIe 3.0 x16 (x16 or dual x8)
Storage
Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
IntelĀ® 10th Gen Processors :
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
IntelĀ® Z490 Chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*3
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
IntelĀ® Rapid Storage Technology supports
Support Raid 0, 1, 5, 10
IntelĀ® Optaneā¢ Memory Ready
8 x SATA 6Gb/s port(s)
LAN
IntelĀ® I225-V 2.5Gb Ethernet
MarvellĀ® AQtion AQC107 10Gb Ethernet
ASUS LANGuard
Wireless Data Network
IntelĀ® Wi-Fi 6 AX201
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports CNVI interface
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports dual band frequency 2.4/5 GHz
Bluetooth
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220
– ESSā¢ ES9023 DAC + RC4580 OP AMP
– Premium Japanese audio capacitors
– Audio Cover
LED-illuminated audio jacks
– SupremeFX Shieldingā¢ Technology
– Supports up to 32-Bit/192kHz playback
– Supports : Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Impedance sense for front and rear headphone outputs
– Optical S/PDIF out port(s) at back panel
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
Rear USB Port ( Total 12 )
1 x USB 3.2 Gen 2×2 port(s)
3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM)
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 10 )
2 x USB 3.2 Gen 2 front panel connector port(s)
4 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Back I/O Ports
1 x LAN (2.5G) port(s)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-CĀ®)
3 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
1 x USB BIOS FlashBackā¢ Button(s)
5 x LED-illuminated audio jacks
1 x Aquantia AQC-107 10G LAN port
1 x Clear CMOS button(s)
1 x ASUS Wi-Fi Module
2 x USB 2.0
1 x Optical S/PDIF out
Internal I/O Ports
1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
2 x W_PUMP+ connector
2 x USB 3.2 Gen 2 front panel connector
1 x FlexKey button
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
8 x ProbeIt Measurement Points
2 x 8-pin ATX 12V Power connector(s)
8 x Radiator Fan Headers
1 x Thunderbolt header(s)
1 x 4-pin EZ_PLUG Power connector(s)
2 x RSVD Switch
1 x WB_SENSOR
1 x BIOS Switch button(s)
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Slow Mode switch(es)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x Start button
2 x Chassis Fan connector(s)
2 x Addressable Gen 2 header(s)
1 x Thermal sensor connector(s)
1 x CPU OPT Fan connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x AAFP connector
1 x System panel connector
1 x Speaker connector
1 x Node Connector(s)
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x 24-pin EATX Power connector(s)
Form Factor
Extended ATX Form Factor
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
