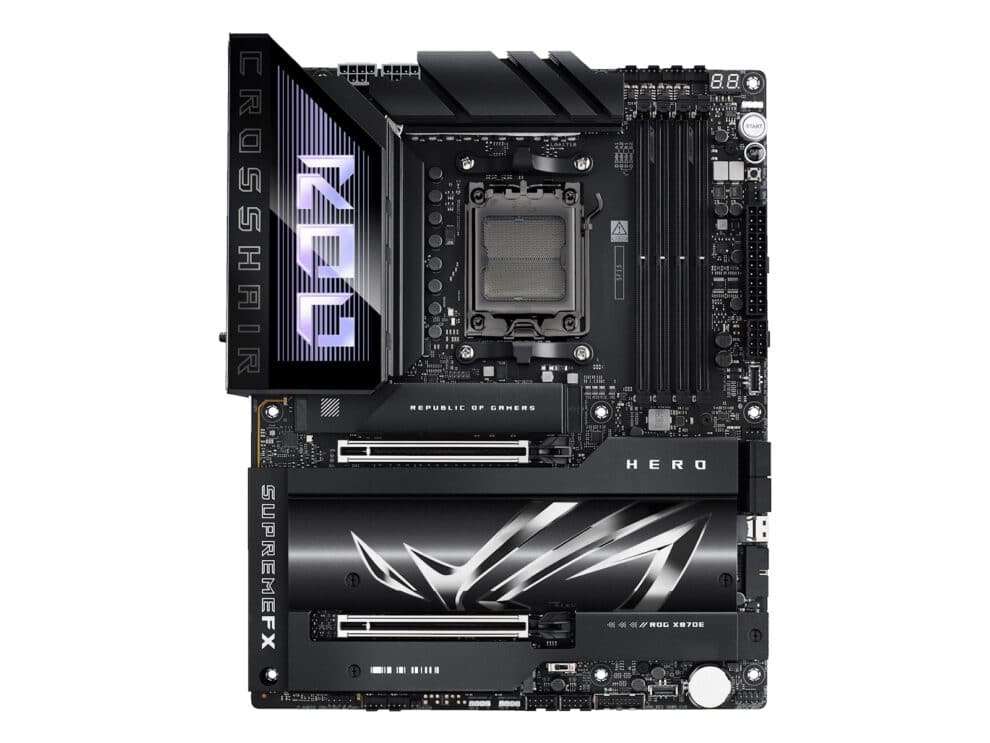

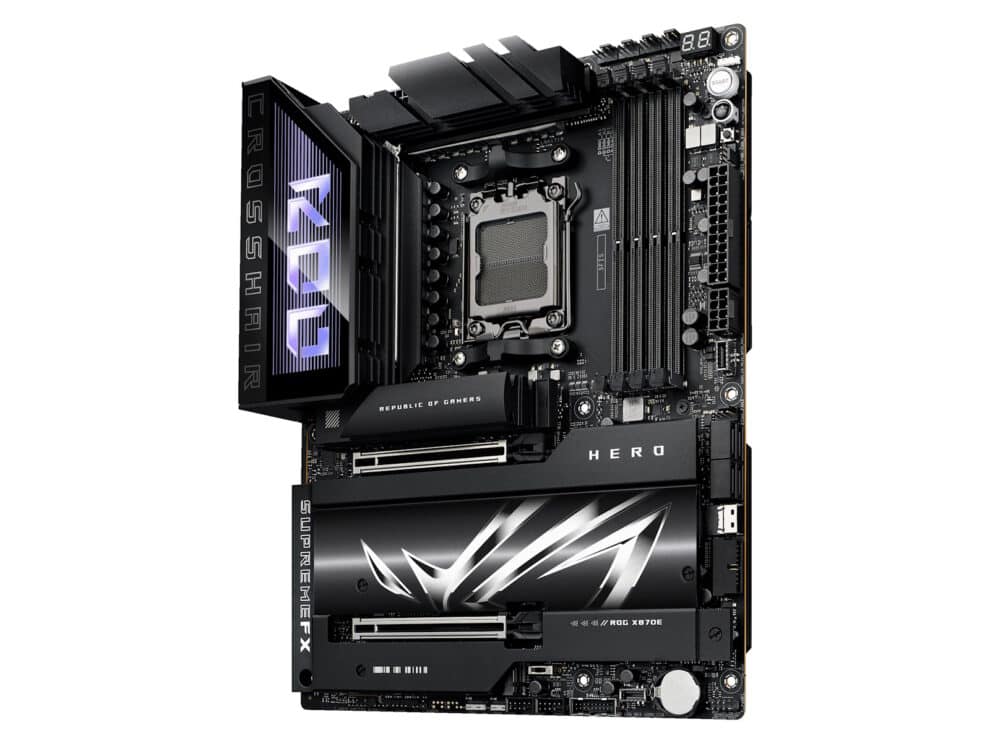

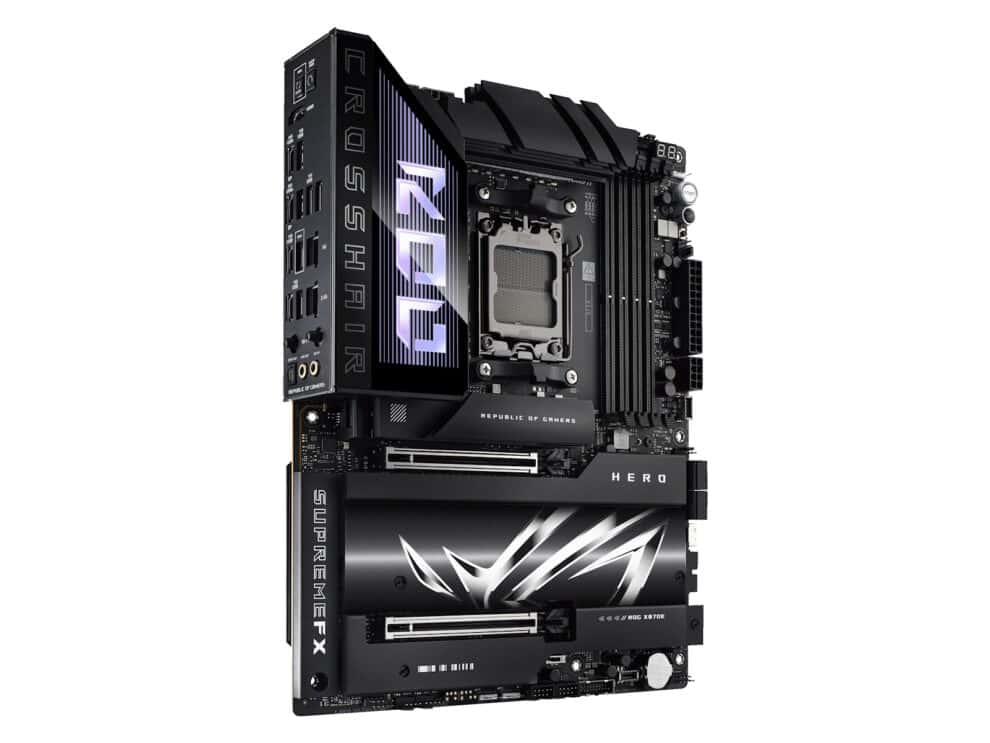

Asus Rog Crosshair X870E Hro AMD Socket AM5 ATX Motherboard

Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC: Yes
Non-ECC: Yes
Maximum memory: 192 GB
Unbuffered memory: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
Included hard drives: 5
Number of storage drives supported: 10
RAID support: Yes
RAID levels: 0, 1, 10, 5

Graphics
Parallel processing technology support: Not supported

Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2×2 connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
12V power connector: Yes

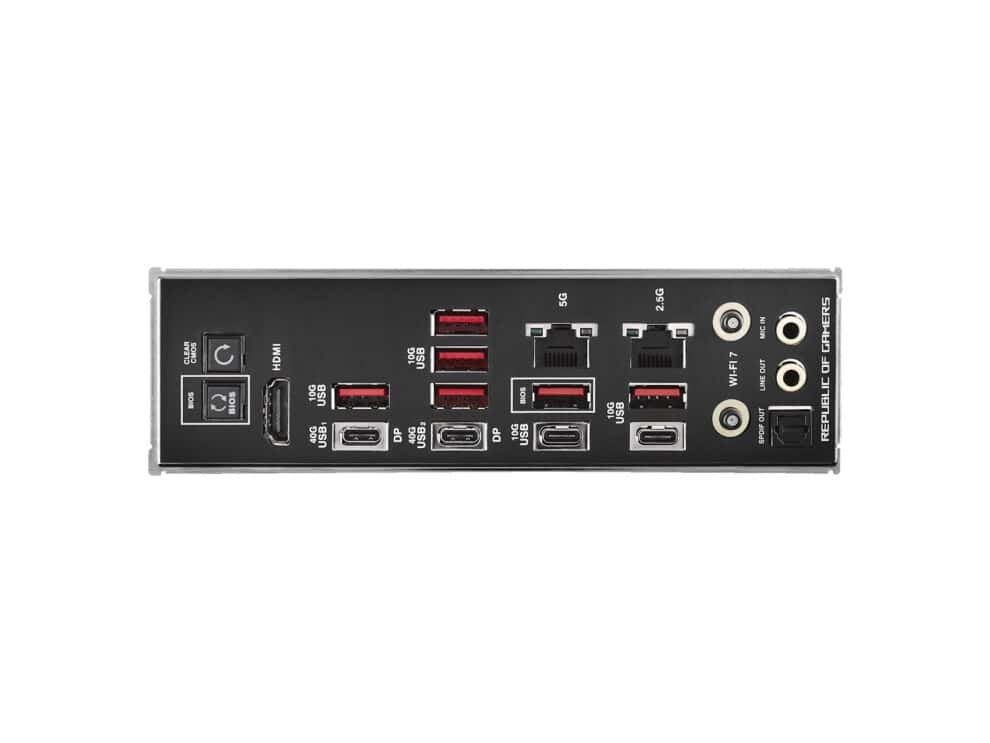

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB4 Gen 2×2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2

Rear panel I/O ports
HDMI ports quantity: 1
Headphone outputs: 1
Microphone in: Yes
S/PDIF out port: Yes
WiFi-AP antenna jack: 1

Features
Chipset: AMD X870E
Audio chip: Realtek ALC4082
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11

Expansion slots
PCI Express x16 (Gen 4.x) slots: 4
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 5

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 50 mm
