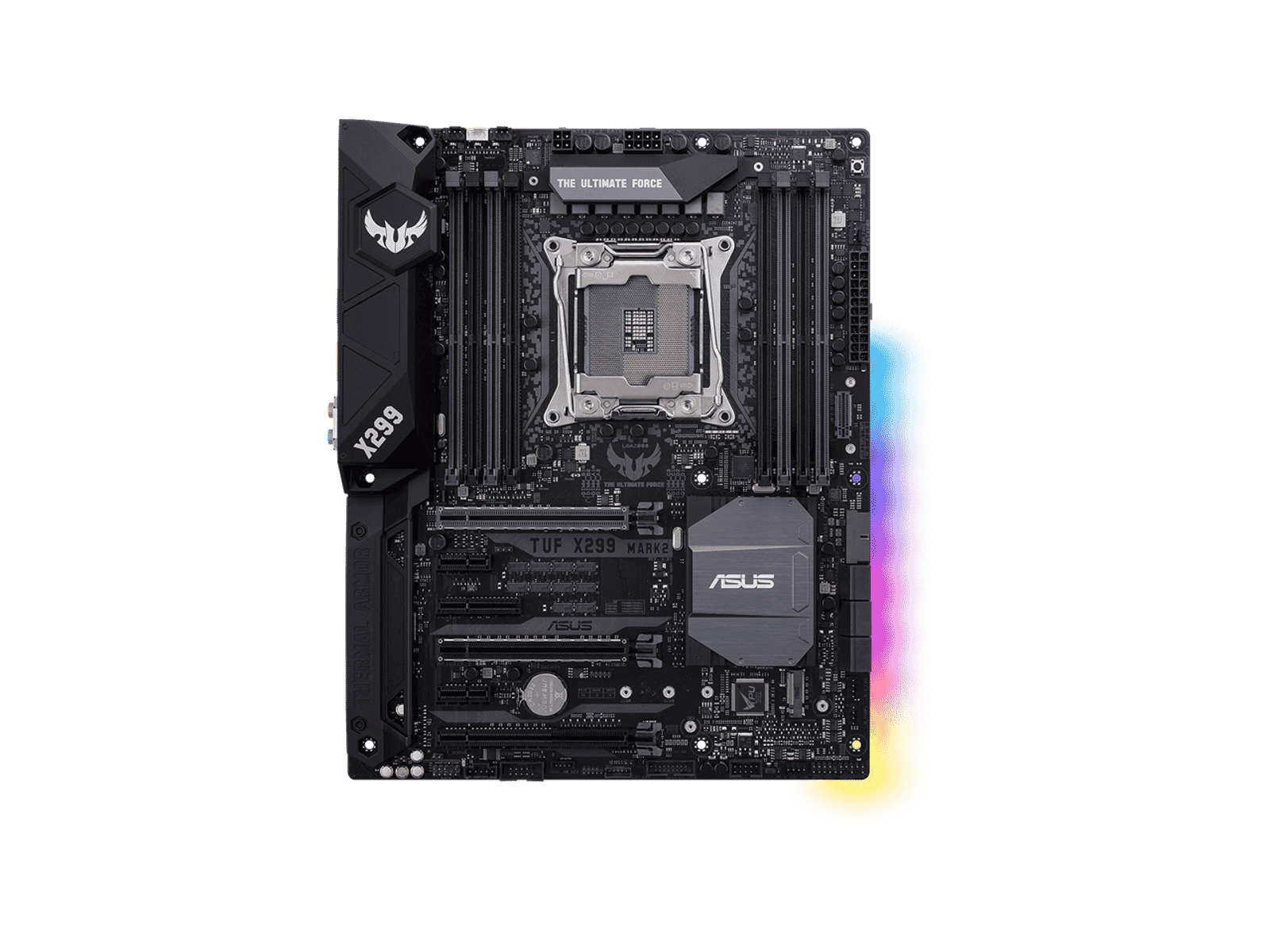

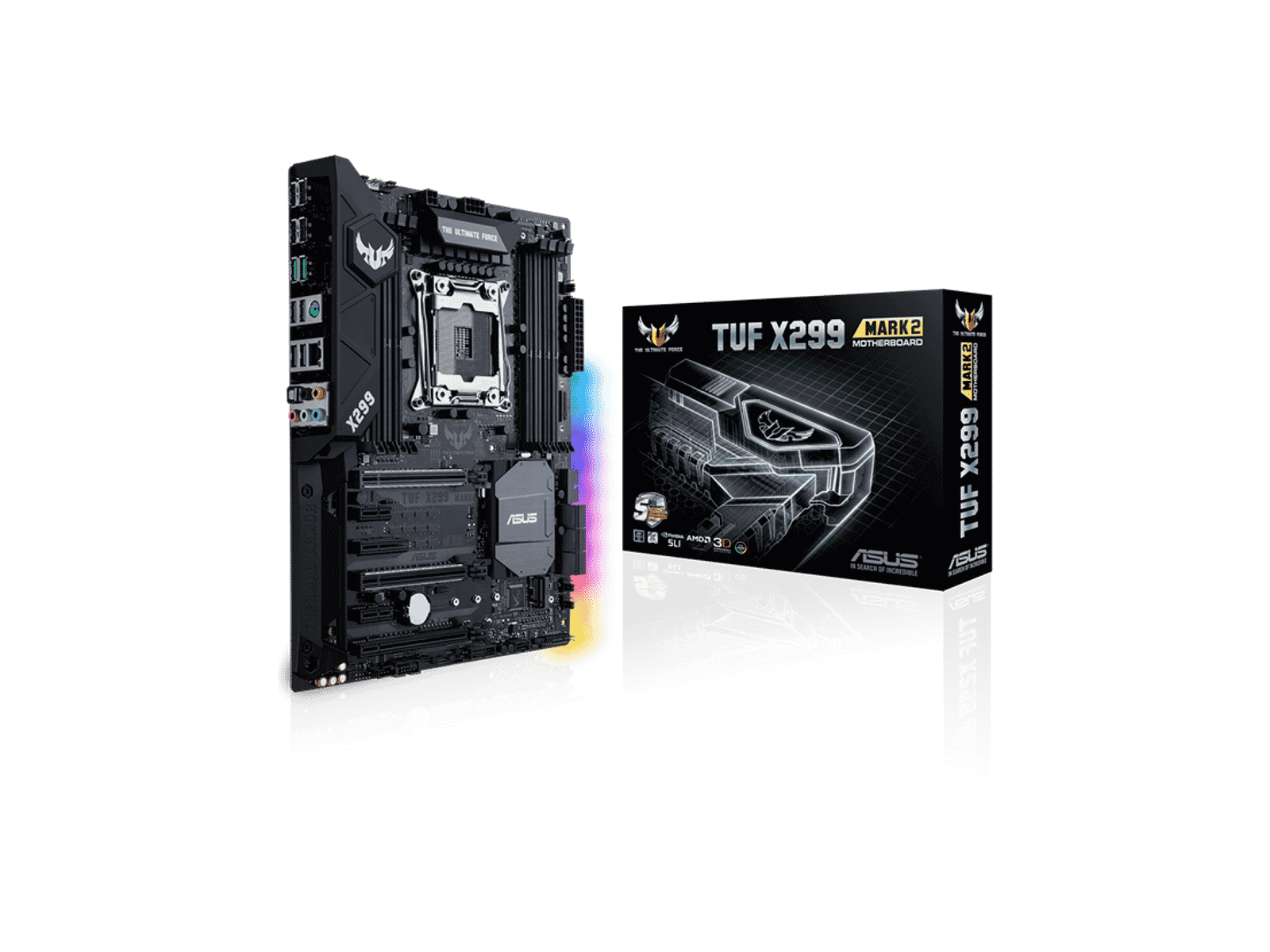

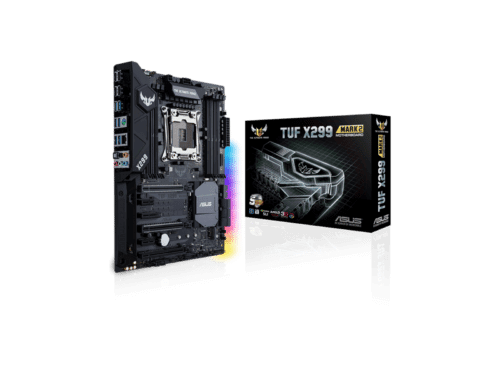

Asus Intel TUF X299 MARK 2 LGA 2066 Motherboard

SKU: 90MB0UB0-M0EAY0 Categories: , Brand:

Original price was: R6,789.00.Current price is: R6,199.00.

Discounted price when paying by EFT

Out of stock

Notify me when the item is back in stock.

🚚 FREE Shipping On Orders Over R900*

Joburg & Pretoria: 1 - 3 business days
Cape Town & Durban: 2 - 4 business days
Rest of SA: 3 - 7 business days
*Click here for our delivery policy

⭐ 600+ 5-Star Reviews

5 Star Reviews

  • Thermal Radar 3 – Designed to keep systems stable while overclocking, Thermal Radar 3 delivers complete system cooling control and temperature monitoring options
  • Pro Clock II & T-Topology – Our Pro Clock II technology provides flexibility for fine-tuning system overclocks, while T-Topology enhances memory stability at higher frequencies
  • TUF components — Certified military-grade caps, chokes & MOSFETs for tough duty
  • Dual PCI Express® slots — Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth
  • ASUS Aura Sync: Synchronize RGB lighting effects across an ever-expanding ecosystem of Aura Sync-enabled products

CPU

Intel® Socket 2066 Core™ X-Series Processors
Optimized for Intel® Core™ X-Series 10000 Processor Family
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

Chipset

Intel® X299

Memory

(Intel® Core™ i9 10000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology

Expansion Slots

44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
16-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1

Storage

1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Intel® X299 Chipset :
Support Raid 1, 0, 10, 5
6 x SATA 6Gb/s port(s)
Supports Intel® Smart Response Technology
Intel® Optane™ Memory Ready
Intel® Rapid Storage Technology 15 support
Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID

LAN

ASUS Turbo LAN Utility
1 x Gigabit LAN Controller(s), featuring Turbo LAN, Intel® I219V

Audio

Audio Feature :
– Optical S/PDIF out port(s) at back panel
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
– Supports : Front Panel Jack-retasking, Jack-detection, Multi-streaming
– Impedance sense for front and rear headphone outputs
Realtek® S1220A 8-Channel High Definition Audio CODEC
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

USB Ports

Intel® X299 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A)
Intel® X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at mid-board, 4 at back panel, )

Special Features

ASUS Exclusive Features :
– Ai Charger
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
File Transfer
– Cloud GO!
– File Transfer
– AI Suite 3
– MemOK!
– Turbo LAN
Ultimate COOL! Thermal Solution :
– TUF Thermal Armor
– Thermal Radar 3
OC Design – ASUS PRO Clock Technology

ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-Slot
– ASUS Q-Connector
– ASUS Q-LED (Boot Device LED, CPU, DRAM, HDD LED, VGA)
– ASUS Q-DIMM
TUF ENGINE! Power Design :
– 7 +1  Digital Phase Power Design
– TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
AURA :
– Aura Lighting Effects Synchronization with compatible ASUS ROG devices
– Aura Lighting Control
TUF Features:
ASUS EZ DIY :
– Multi-language BIOS
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Safe & Stable! Guardian Angel :
– TUF LANGuard
– TUF ESD Guards 2

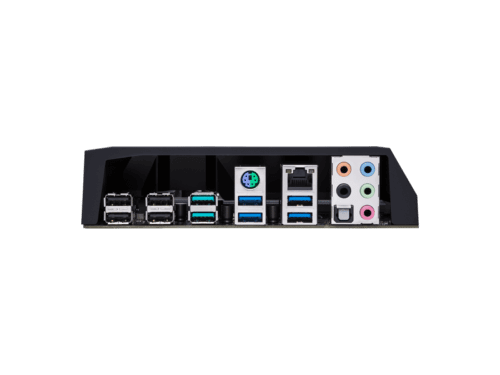

Back I/O Ports

2 x USB 3.1 Gen 2 Type-A
1 x PS/2 keyboard/mouse combo port(s)
4 x USB 3.1 Gen 1
1 x LAN (RJ45) port(s)
4 x USB 2.0
5 x Audio jack(s)
1 x Optical S/PDIF out

Internal I/O Ports

1 x 24-pin EATX Power connector(s)
1 x VROC_HW_Key
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
1 x H_AMP fan connector
1 x 4-pin ATX 12V Power connector(s)
1 x MemOK! button(s)
1 x CPU Fan connector(s)
1 x Thunderbolt header(s)
1 x CPU OPT Fan connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x Clear CMOS jumper(s)
1 x AAFP connector
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x AIO_PUMP connector
1 x CPU_OV jumper
1 x W_PUMP+ connector
6 x SATA 6Gb/s connector(s)
2 x Chassis Fan connector(s)
1 x Thermal sensor connector(s)
2 x 3D Mount screw port(s)
1 x M.2_FAN connector
1 x System panel(s) (Q-Connector)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

Accessories

1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x TUF 5 Year Warranty manual(s) (by region)
User´s manual
1 x TUF Inside sticker(s)(white)
1 x Supporting DVD
ASUS Q-Shield
1 x Q-Connector
1 x TUF Certification card(s)
1 x M.2 Screw Package
1 x SLI HB BRIDGE(2-WAY-M)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc

Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12  inch x 9.6  inch ( 30.5  cm x 24.4  cm )

Note

1. When using 28-lane & 16-lane CPUs, PCIEX16_3 will be disabled.

More info : https://www.asus.com/Motherboards-Components/Motherboards/Others/TUF-X299-MARK-2/techspec/
