- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
- This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
- OC edition:Boost clock 1800 MHz (OC mode)/1770 MHz (Gaming mode).

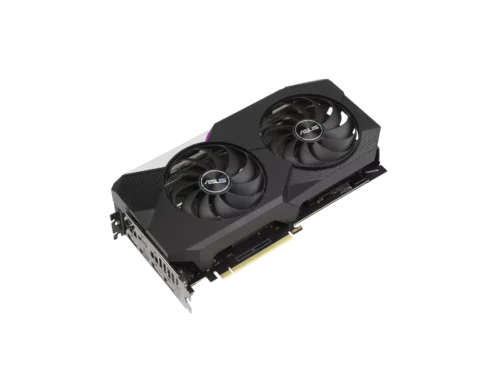

- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring
that increases downward air pressure. - Auto-Extreme Technology uses automation to enhance reliability.
- A protective backplate secures components during transportation and installation.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Graphic Engine
NVIDIA® GeForce RTX™ 3070
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
8GB GDDR6
Engine Clock
OC Mode – 1800 MHz (Boost Clock)
Gaming Mode – 1770 MHz (Boost Clock)
CUDA Core
5888
Memory Speed
14 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection card
1 x Speedsetup manual
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
10.51 ” x 5.31 ” x 2.05 ” Inch
26.7 x 13.5 x5.2 Centimeter
Recommended PSU
750W
Power Connectors
2 x 8-pin
Slot
2.7 Slot
More info : https://www.asus.com/Motherboards-Components/Graphics-Cards/Dual/DUAL-RTX3070-O8G-V2/techspec/
