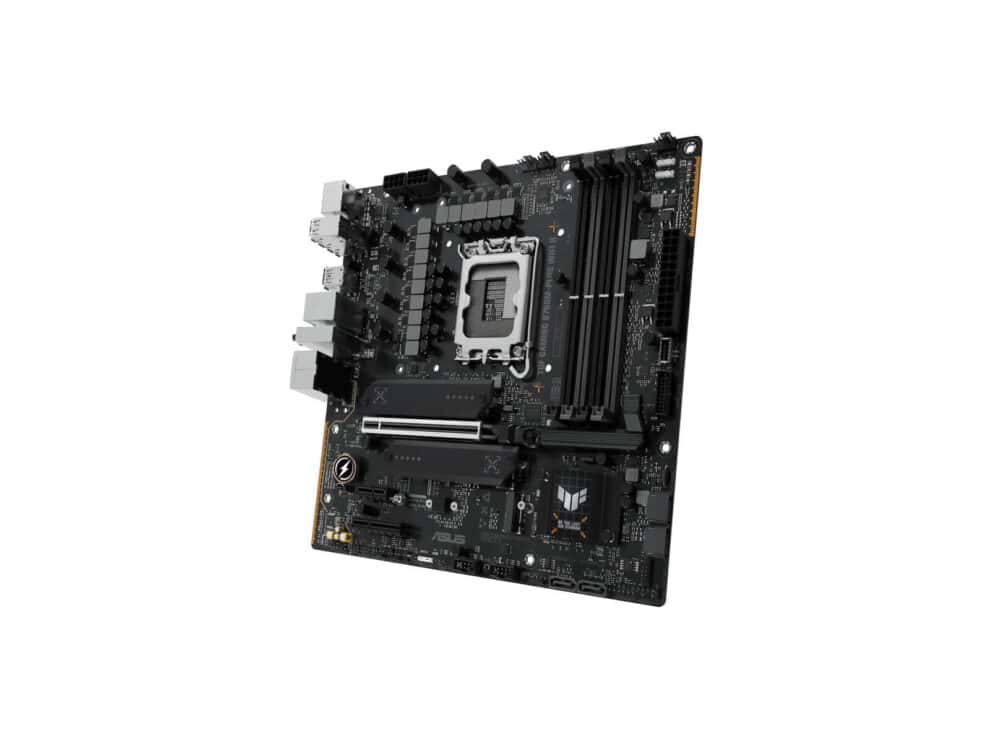

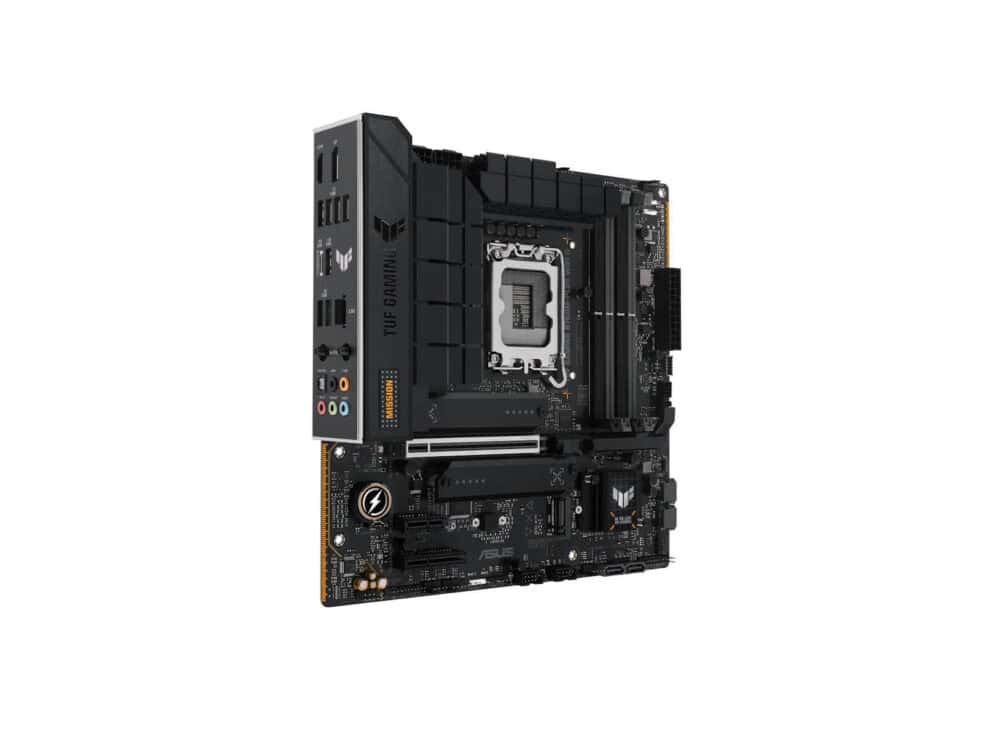

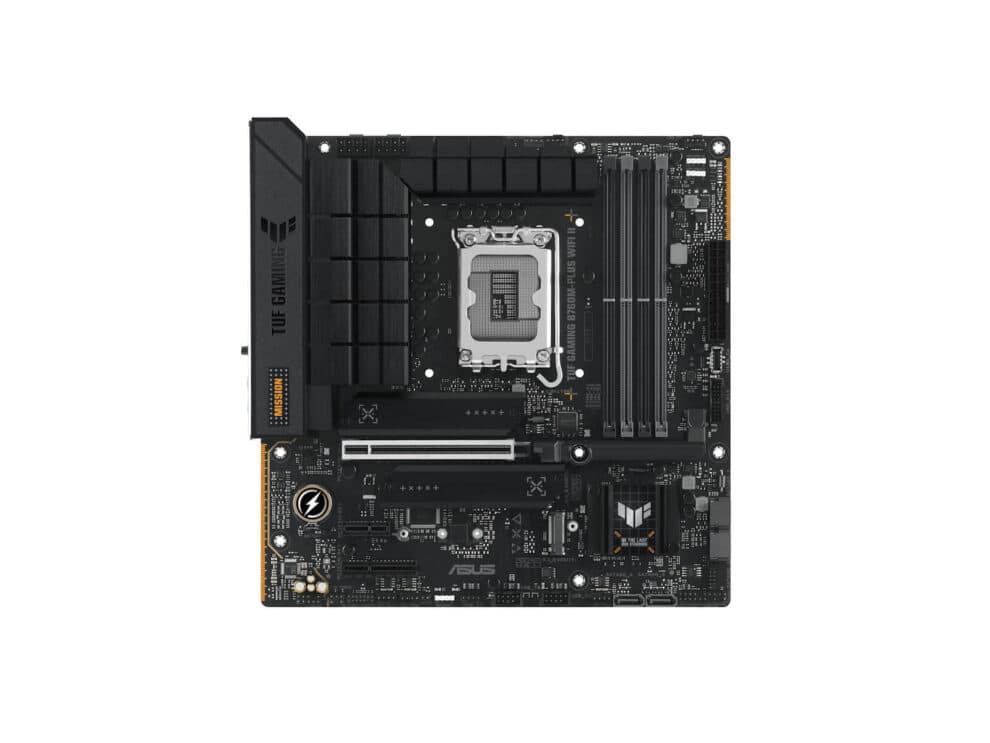

Asus B760M LGA 1700 micro ATX Gaming Motherboard

• – Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
• – PC micro ATX Intel B760 7.1 channels
• – DDR5-SDRAM 4 DIMM Non-ECC Maximum memory: 192 GB
• – HDD & SSD M.2, SATA III Number of storage drives supported: 7
• – 128 Mbit
• – 2.5 Gigabit Ethernet Wi-Fi 6E (802.11ax) 5.3

Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets: LGA 1700

Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual channel
Non-ECC: Yes
Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7800 MHz
Supported memory clock speed (max): 7800 MHz
Maximum memory: 192 GB
Unbuffered memory: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Included hard drives: 4
Number of storage drives supported: 7
RAID support: Yes
RAID levels0, 1, 5, 10

Graphics
Parallel processing technology support: Not supported

Internal I/O
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes

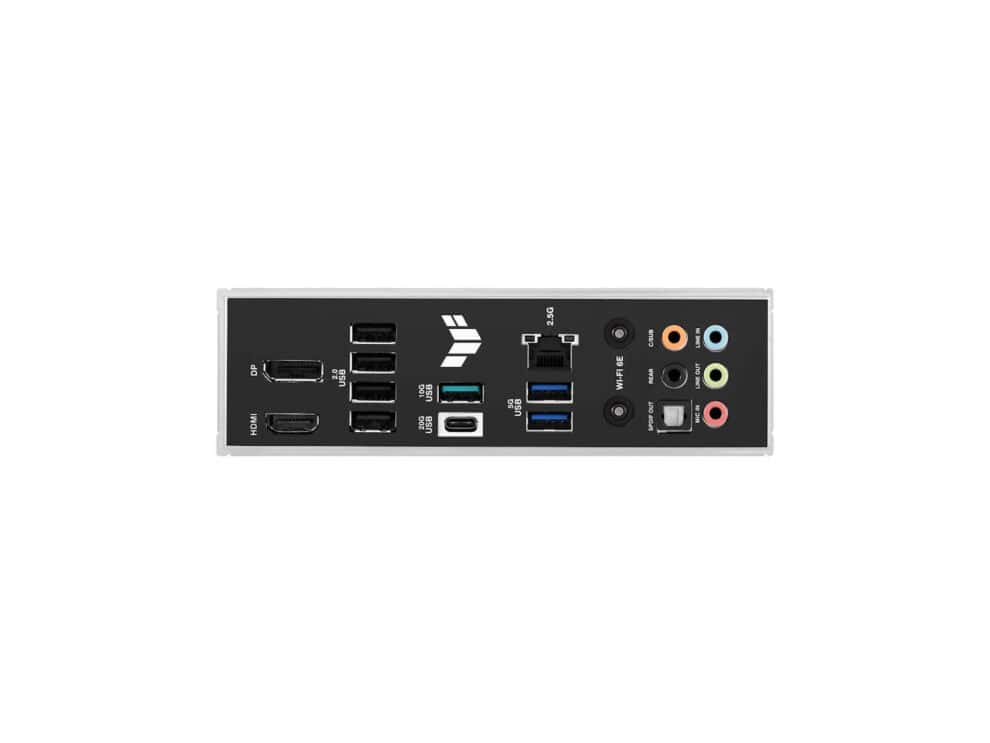

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort’s quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
S/PDIF out port: Yes
Wi-Fi-AP antenna jack: 2

Network
Ethernet LAN connection: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.3

Features
Chipset: Intel B760
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11

Weight & dimensions
Width: 244 mm
Depth: 244 mm
