CertificationsEN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltagePower over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately
Wi-Fi antennaIntegrated down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
Connectivity, standardIEEE 802.11ax
Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
MountingThe access point ships with a white mount clip that can attach to both wall and ceiling.
You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.
Power consumptionMax power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio coverageDual Radio for simultaneous dual-band operation
5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
WarrantyAruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

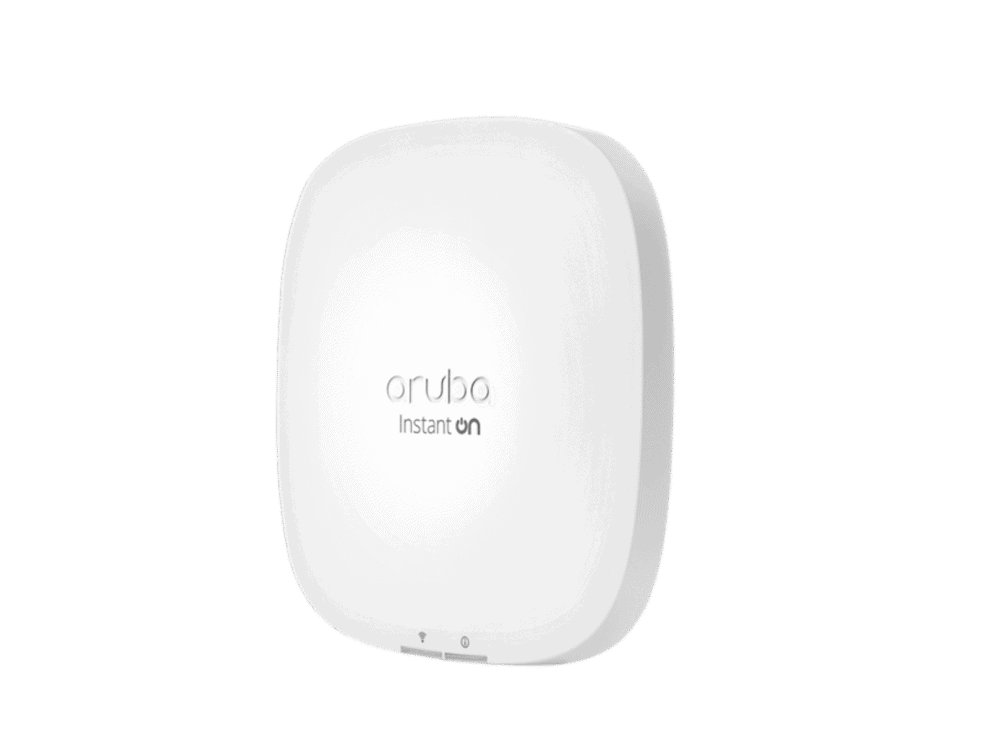

DifferentiatorAruba Instant On AP22 Indoor Access Points offer a reliable, affordable, and business-grade 802.11ax Wi-Fi experience for high performance, high-density small business environments like hotels, restaurants, and professional offices. Supporting Wi-Fi 6 standard, these access points have a peak data rate of 1.2 Gbps and scale up to 25 access points, without additional cost and complexity. For use in those countries and regions where no specific regulatory domain is required.
