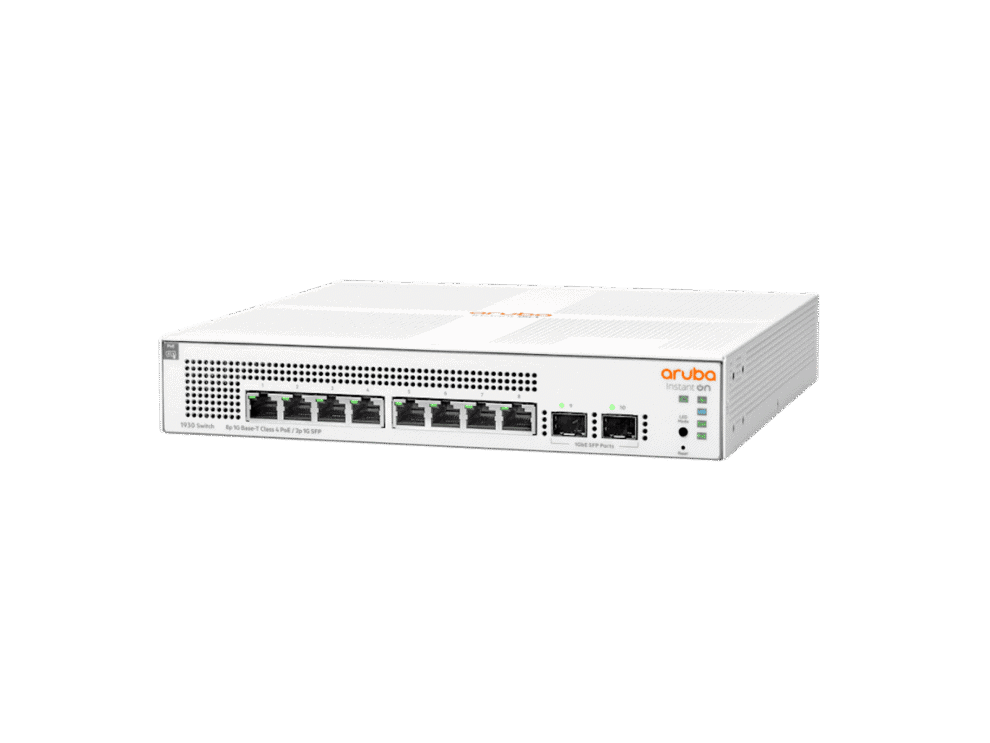

deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 and 2 SFP 1GbE ports. Provides 124 W Class 4 PoE power.
Power consumption150.2 W maximum, 11.7 W idle
Input voltage100 – 127 / 200 – 240 VAC
Ports8 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports
Switching capacity20 Gbps
Throughput14.88 Mpps, maximum
Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer
PoE capability124 W Class 4
Management featuresAruba Instant On Portal, Web browser, SNMP Manager
