Specifications
Battery type | Lead-acid battery |
Extended runtime | 0 |
Number of battery filled slots | 0 |
Number of battery free slots | 0 |
Battery recharge time | 3 h |
Number of battery replacement quantity | 1 |
Replacement battery | APCRBC124 |
Battery charger power | 72 W rated |
Physical | |
Number of rack unit | 2U |
Number of cables | 1 |
Colour | Black |
Height | 8.6 cm |
Width | 43.2 cm |
Depth | 40.6 cm |
Net weight | 20.52 kg |
Mounting location | Front |
Mounting preference | Lower |
Mounting mode | Rack-mounted |
Two post mountable | 1 |
USB compatible | Yes |
Input | |
Main Input Voltage | 230 V |
Other Input Voltage | 220 V 240 V |
Input Connection Type | IEC 320 C14 |
Input voltage limits | 170…300 V adjustable 180…287 V |
Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
Output | |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V 240 V |
Rated power in W | 600 W |
rated power in VA | 1000 VA |

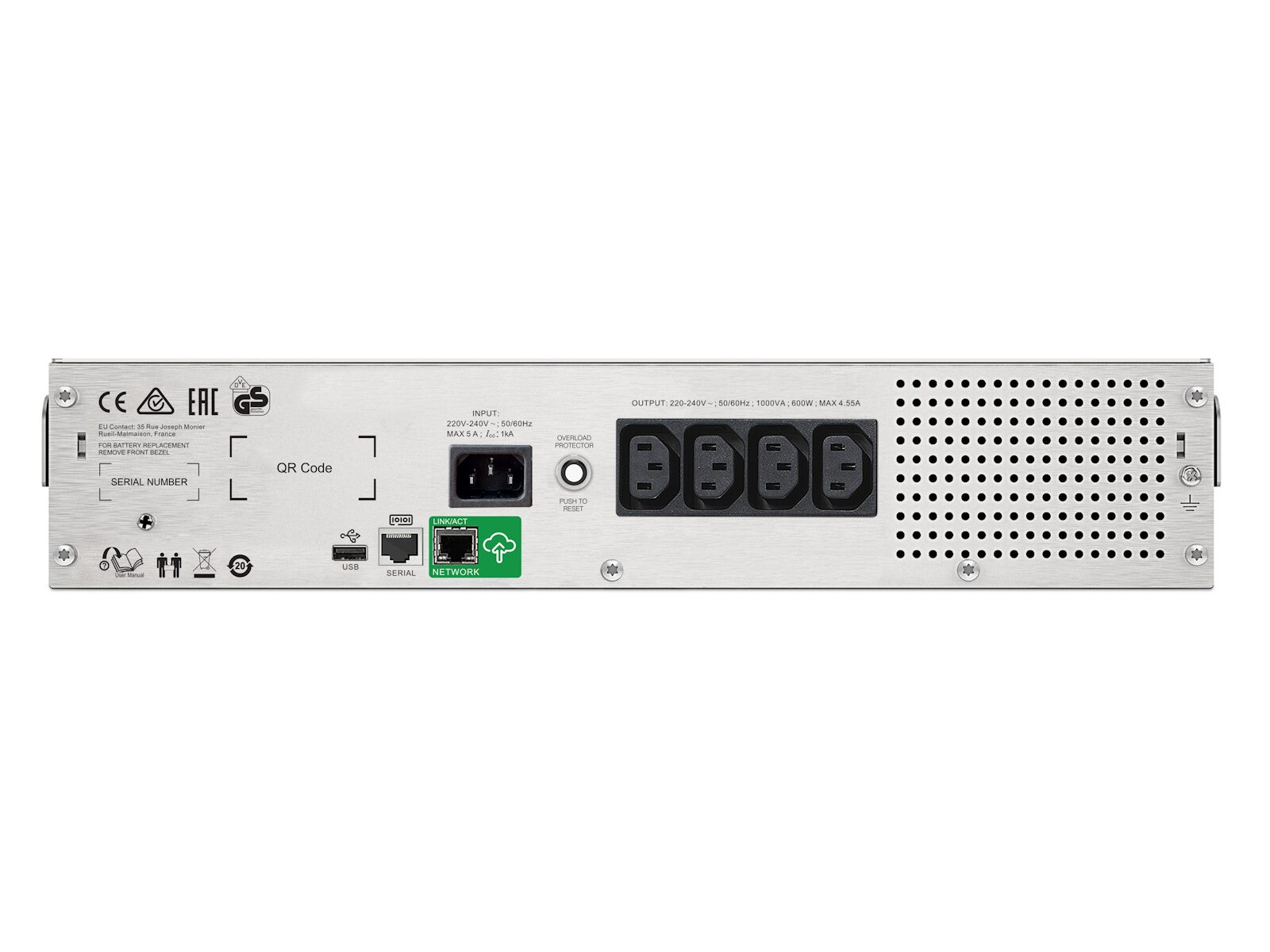

output connection type | 4 IEC 320 C13 2 IEC Jumpers |
Harmonic distortion | Less than 5 % |
Maximum configurable power in VA | 1000 VA |
Maximum configurable power in W | 600 W |
Transfer time | 6 ms typical : 10 ms maximum |
UPS type | Line interactive |
Wave type | Sine wave |
Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
More info: | https://www.se.com/za/en/product/SMC1000I-2UC/apc-smartups-c-line-interactive-1000va-rackmount-2u-230v-4x-iec-c13-outlets-smartconnect-port-usb-and-serial-communication-avr-graphic-lcd/ |
