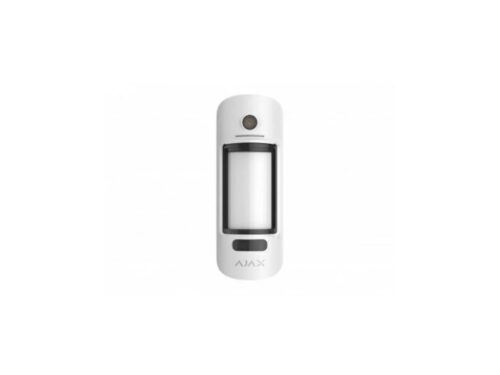

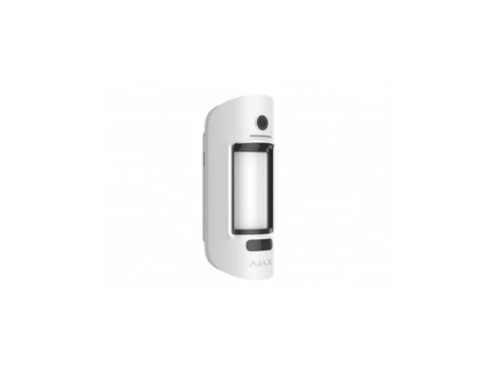

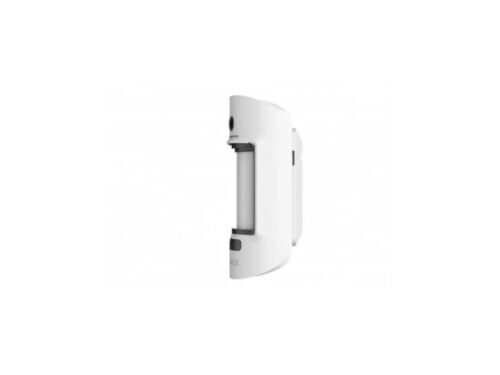

AJAX Security – Wireless Outdoor Motion Detector

Intelligent false alarm filter
MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which help to instantly distinguish real threats from interferences.

Correlation analysis
Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real time. If forms are similar, the alarm is activated.Photo verification

Outdoor surveillance and alarm confirmation
MotionCam Outdoor is equipped with a camera to quickly assess the situation at the protected facility. The detector takes an automatic series of photos as soon as it detects an intrusion into the territory. A series of photos combines into an animation showing the situation development in the dynamics. MotionCam Outdoor PhOD can take a series of photos by request of the user from the Ajax mobile app, regardless of the security mode. Furthermore, the device can take photos on a set schedule or when selected devices in the system trigger an alarm.Camera

Features:
Two-way communication.
Advanced anti-sabotage.
Block encryption featuring a dynamic key.
Instant notifications.
Remote configuration via the Ajax apps.
Specifications:

Compatibility

Control panels
Hub 2 (2G) Jeweller
Hub 2 (4G) Jeweller
Hub 2 Plus Jeweller
Hub Hybrid (2G)
Hub Hybrid (4G)
Range extenders

ReX 2 Jeweller
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio signal range: up to 1,700 m
Frequency hopping: Radio communication uses frequency hopping to prevent interception and jamming.

Detection
Sensitive elements: 2 × PIR sensor
Motion detection distance: up to 3–15 m, When installed at a height of 0.8–1.3 m. Adjusted with a scrollbar on the device enclosure.
Motion detection angles: horizontal – 90°, vertical – N/A
Motion detection speed: from 0.3 to 2.0 m/s, The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity: 3 levels
Pet immunity: weight: not relevant, height: up to 80 cm
False alarm prevention: LISA, SmartDetect, Software algorithms.
Temperature compensation: Effective motion detection at temperatures from −25°C to +60°C.
Photo verification
Photo by Alarm: A built-in camera is activated if the detector is armed, and motion is detected.
Photo on Demand: User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Photo by Scenario: A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.
Photo by Schedule: The detector automatically takes photos at a specified time. This feature is available for hubs (except Hub Jeweller) with firmware version OS Malevich 2.19 or higher.

Photo resolution:
640 × 352 px
320 × 176 px (by default)

Camera viewing angles: horizontal 105°, vertical 50°

IR backlight: For night photography and low light conditions.
Pictures in a series: from 1 to 5 images with resolution of 320 × 176 px, from 1 to 3 images with resolution of 640 × 352 px
Photo delivery time: up to 9 s – 320 × 176 px resolution, up to 20 s – 640 × 352 px resolution
TV distortion (EBU standard): barrel – 17%
