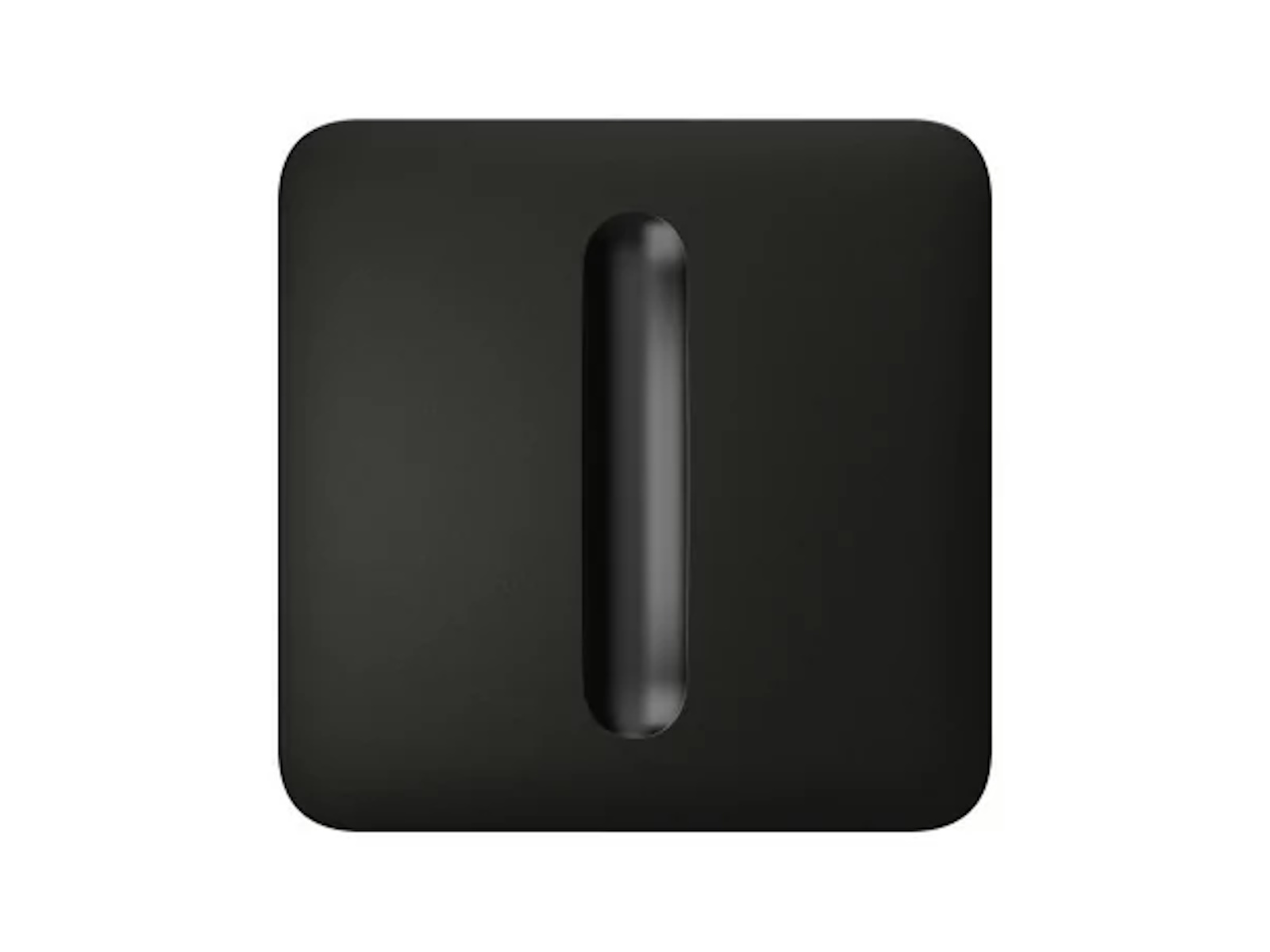

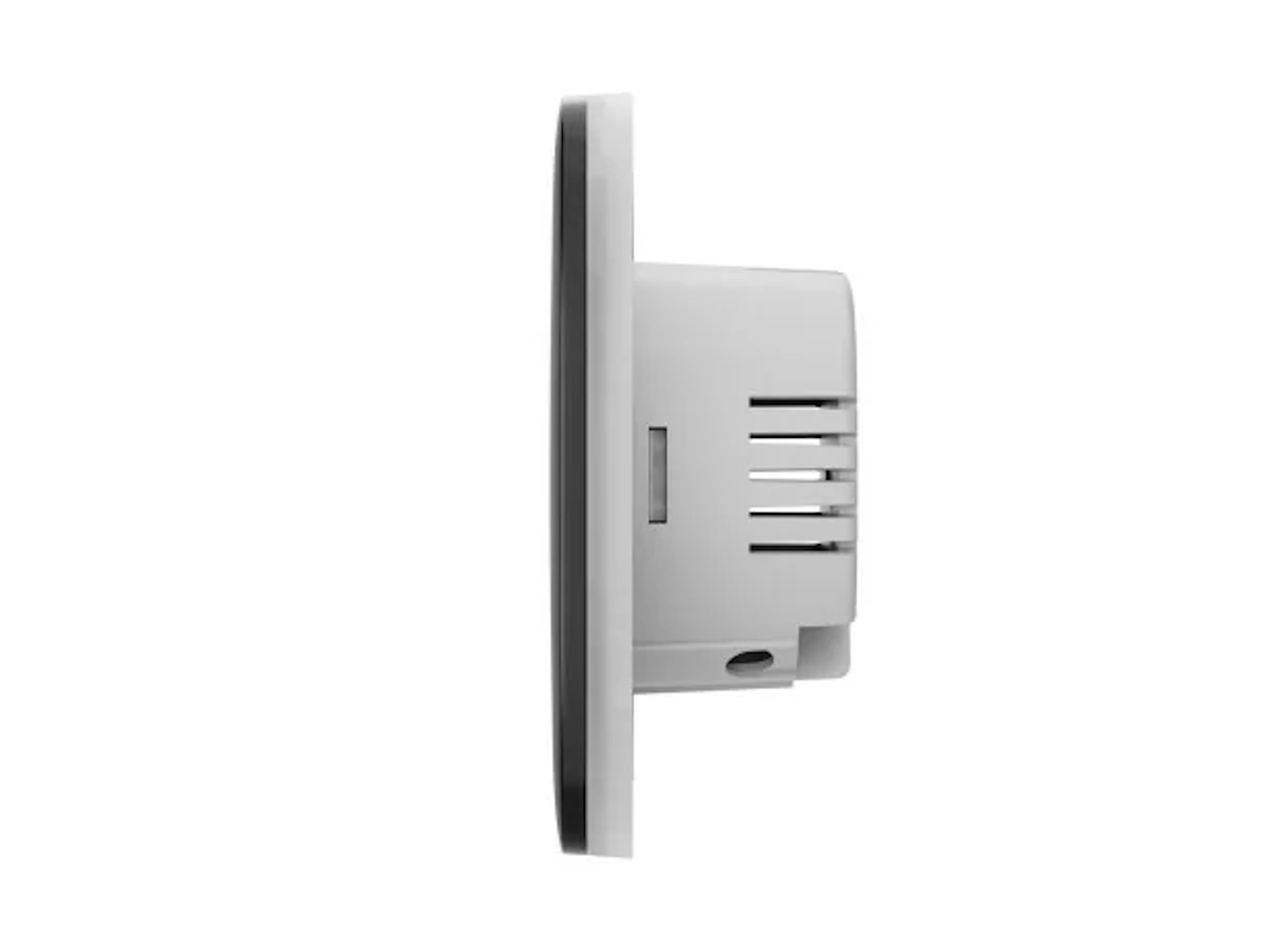

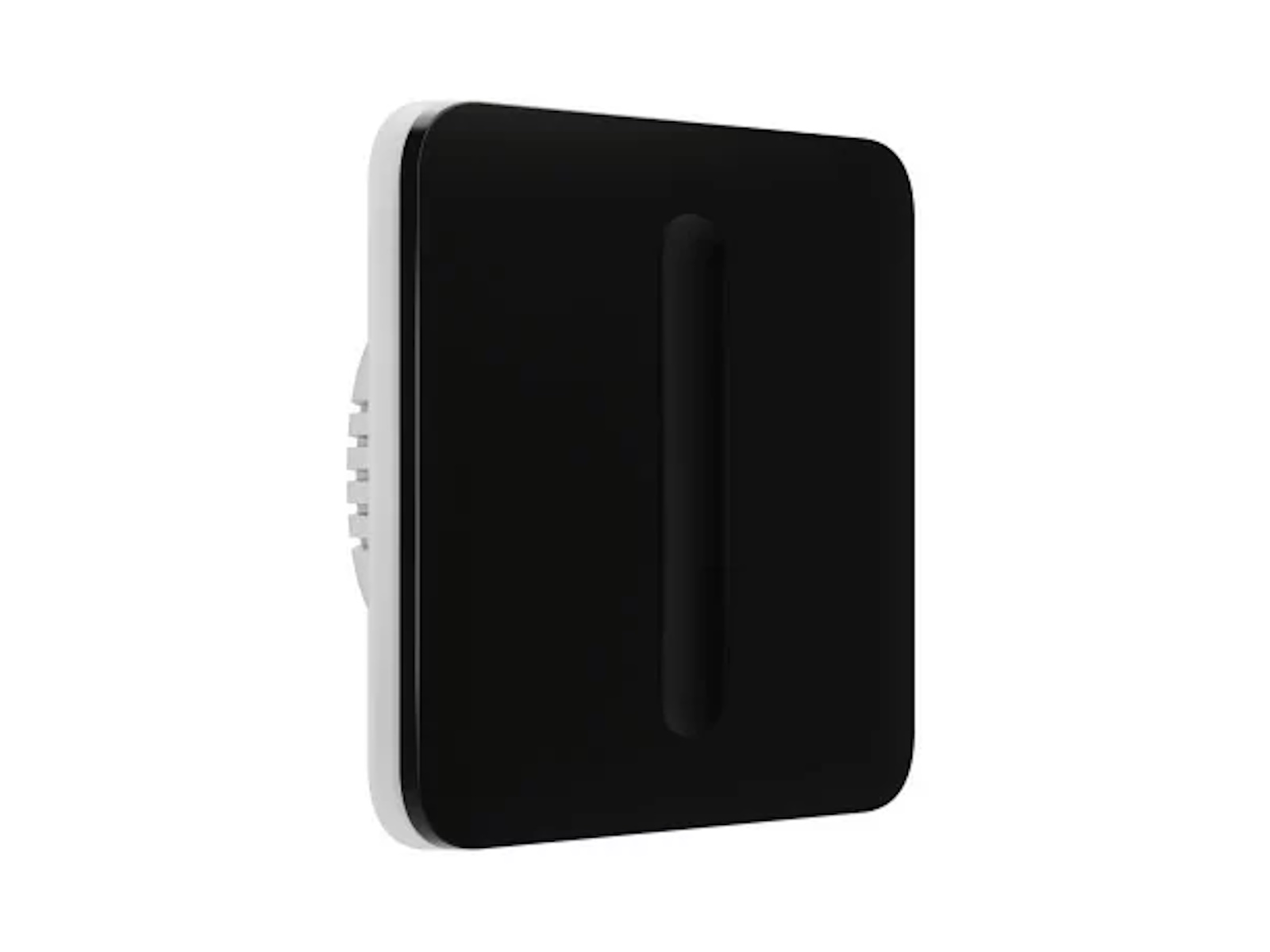

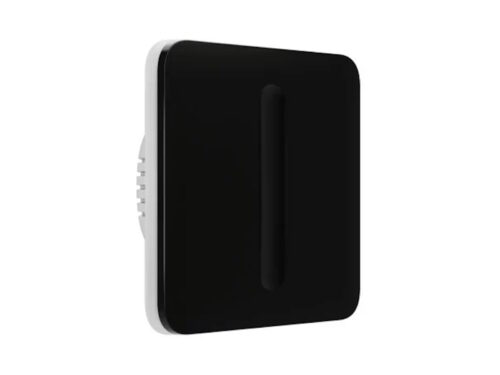

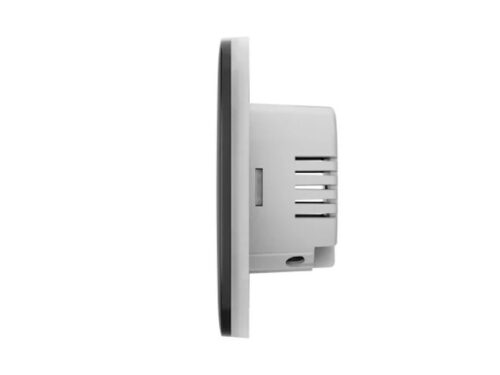

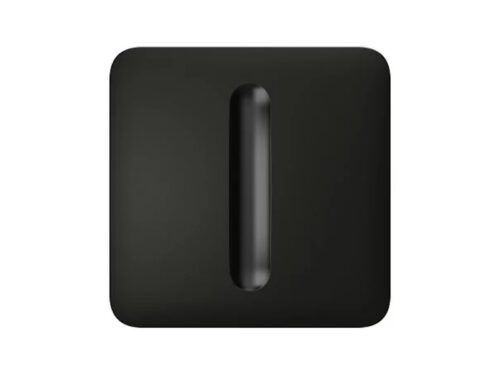

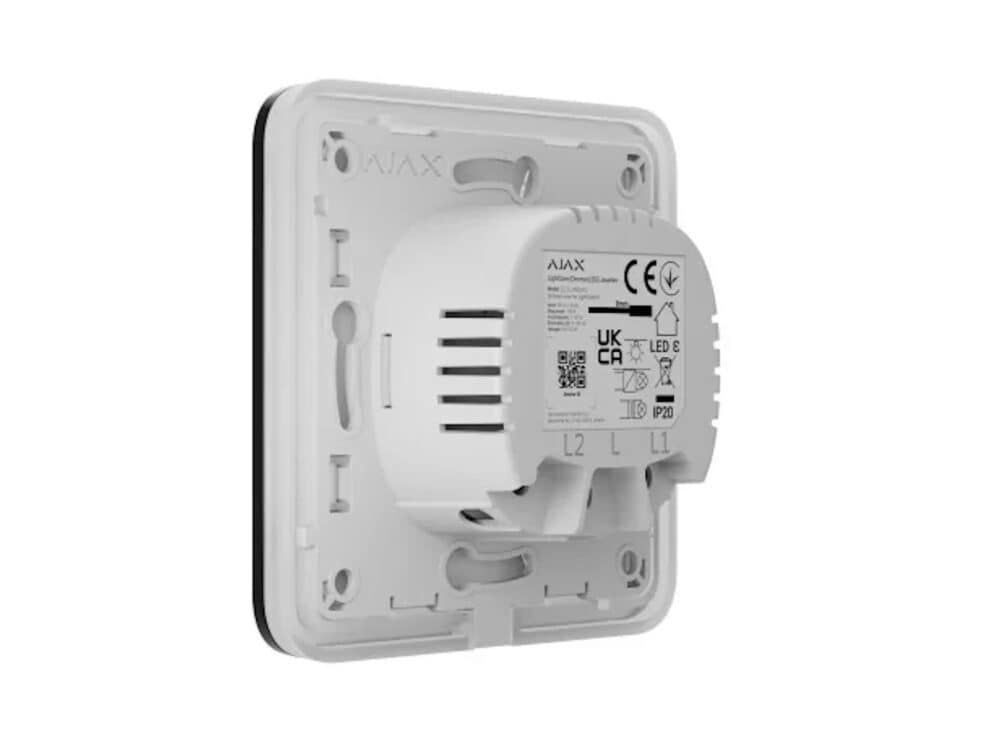

AJAX Security SoloButton – Dimmer

Compatibility
Hubs
Hub Plus Jeweller
Hub 2 (2G) Jeweller
Hub 2 (4G) Jeweller
Hub 2 Plus Jeweller
Hub Hybrid (2G)
Hub Hybrid (4G)

Range extenders
ReX Jeweller
ReX 2 Jeweller

Communication with Hub
Communication range: up to 900 m

Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Maximum effective
radiated power (ERP)
up to 20 mW
In an open space
Depends on the sales region

Features
Scenarios
. by alarm
. by security mode change
. by temperature
. by humidity/СО₂ concentration
. by schedule
. by activating another
LightSwitch/Button

Power supply
Input: 230 V, 50 Hz
Power of switched device: 8-150 VA

Supported lamp types
Incandescent light bulb: 8-150 VA
Dimmable LED: 8-150 VA
Halogen light bulb: 20-150 VA
Current protection: more than 0.75 A
Temperature protection: more than +60 C
