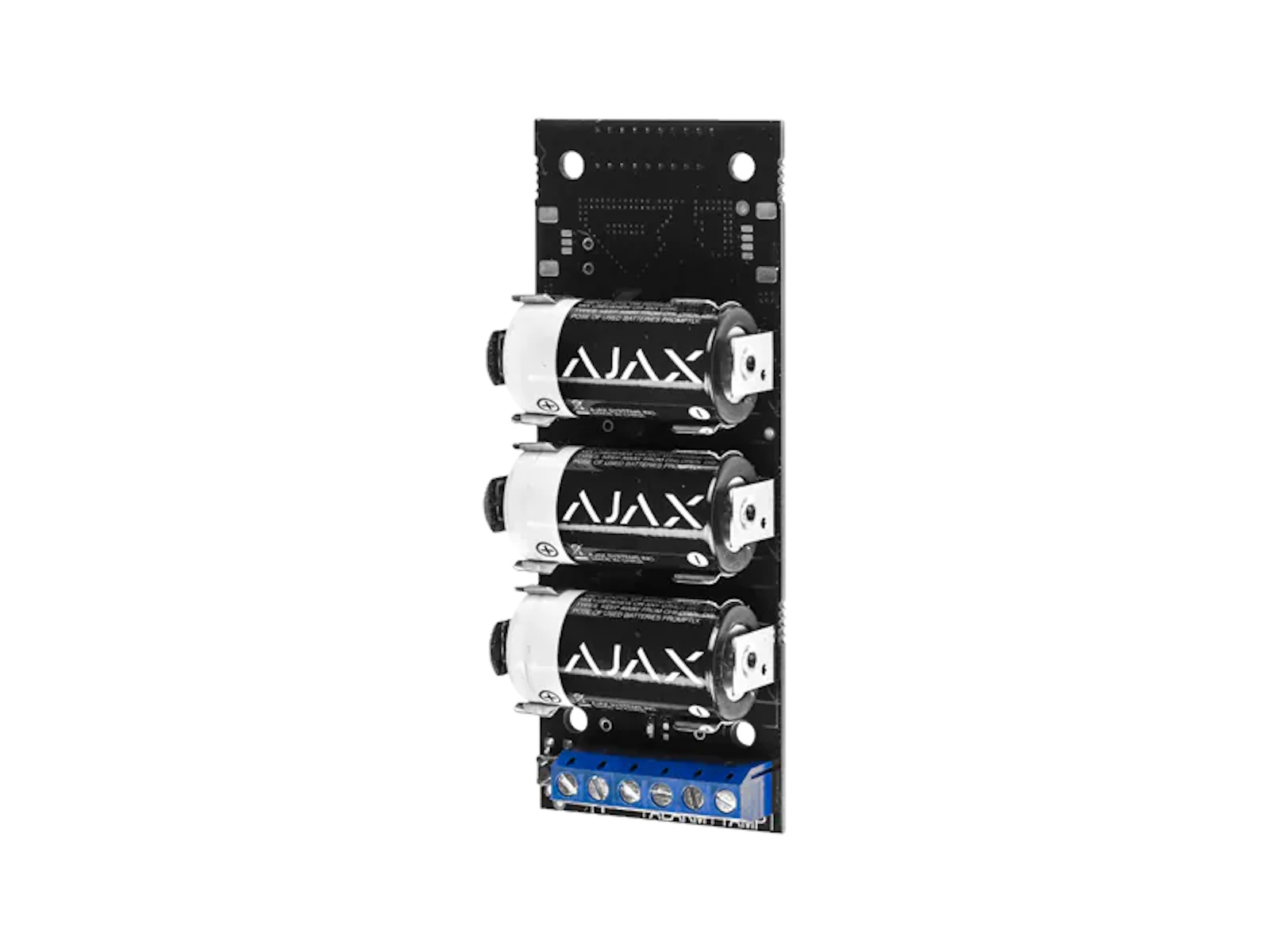

AJAX Security – Single WiFi Transmitter Module Indoor

Principle of operation

Transmitter allows you to connect a third-party wired detector or device to the Ajax security system. The module receives information about alarms and events via a wired connection. Having received an event, it transmits it to the hub via the Jeweller radio protocol, and the hub notifies the security company and system users.

Features

Transmitter works with any detector, keypad, or device with NC/NO contact type. The module supports numerous event types: intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage, etc. The type of event determines the alarm code sent to the security company monitoring station and the text of notification received by the user. This ensures an accurate response to the threat.

Installation and set up

Scan the QR code in the Ajax app to add Transmitter to the security system. You can specify the type of connected wired device in the Ajax mobile or desktop apps. The compact module is easy to install inside the detector body or mounting box. And the built into Transmitter accelerometer will notify of sabotage attempts.

Specifications:

Compatible control panels: All Ajax hubs

Compatible range extenders: All Ajax range extenders

Compatible wired devices: All Ajax detector or device with NC/NO contact type

Alarm input: 1

Tamper input: 1

Power supply output for the wired detector or device: 3.3 V

Module power supply: 3 x CR123A battery
