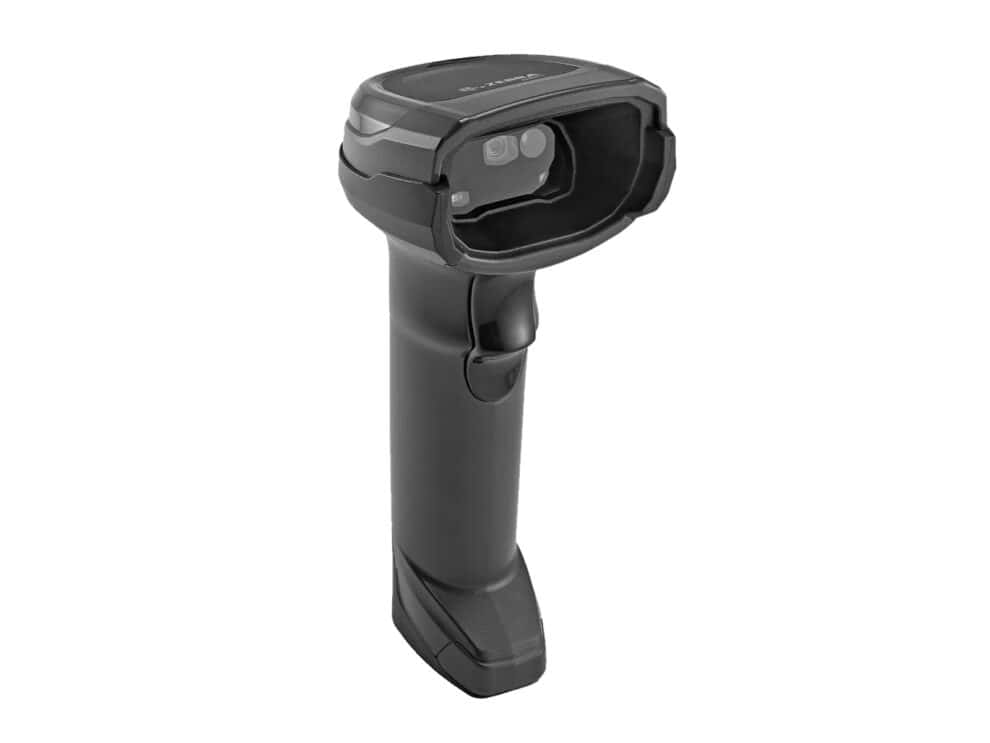

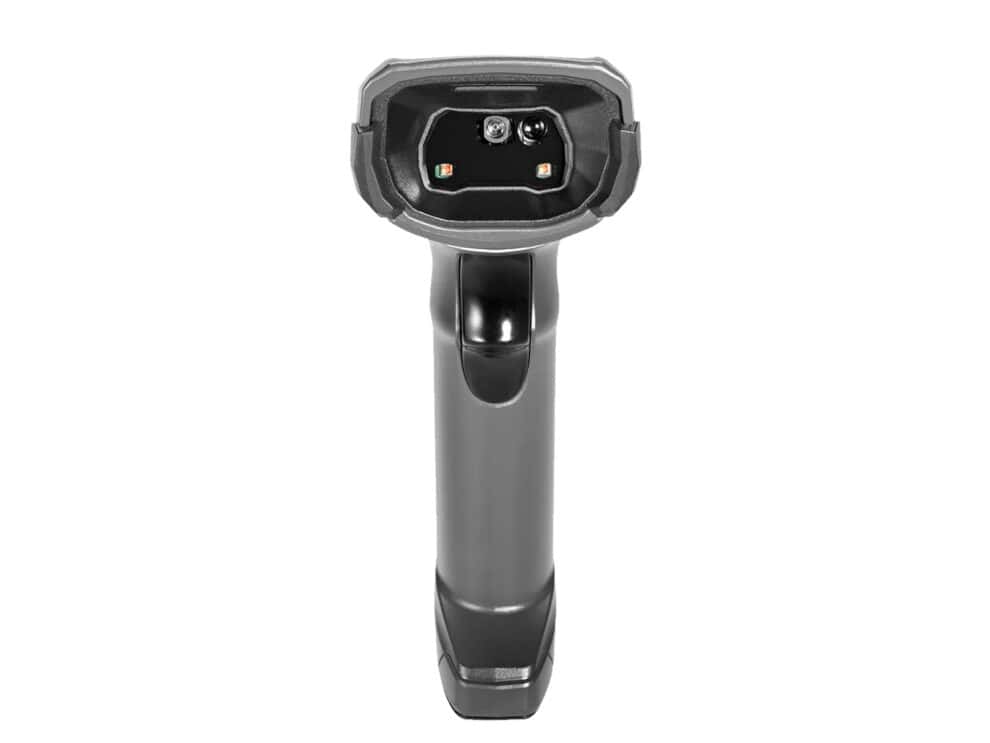

title: Zebra DS8108-SR Handheld Bar Code Reader, Scanner
date: 2024-09-19T07:06:10Z
modified: 2026-05-05T16:47:06Z
permalink: "https://tech.co.za/product/zebra-ds8108-sr-handheld-bar-code-reader-scanner/"
type: product
status: publish

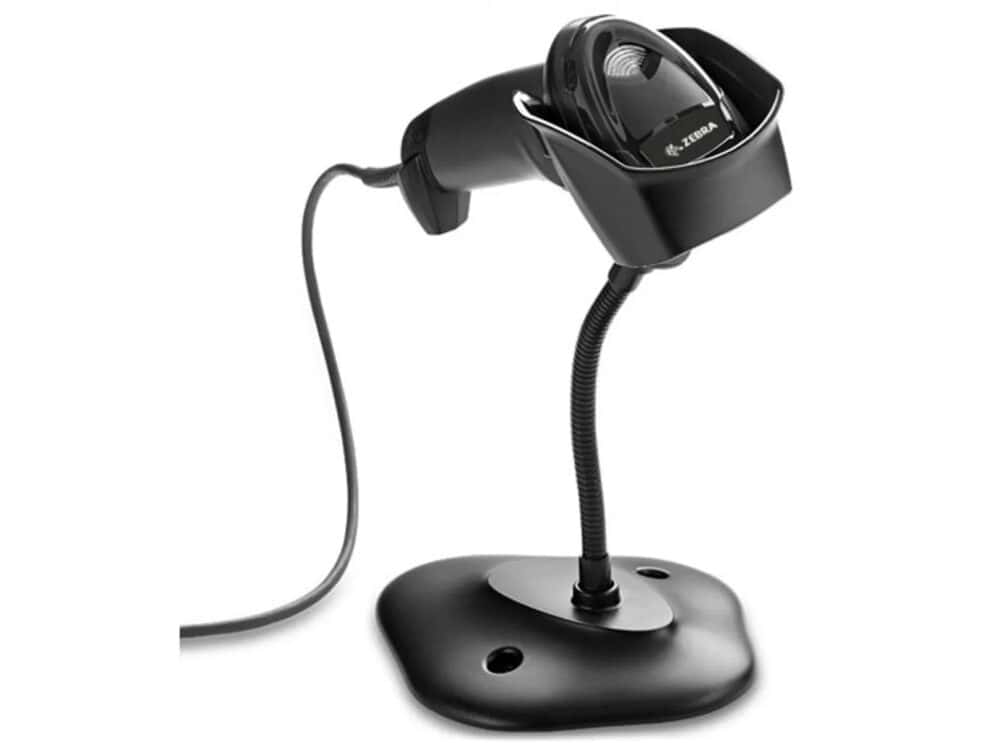

excerpt: "Zebra DS8108-SR BLACK (WITH STAND) USB KIT: DS8108-SR00007ZZWW SCANNER; CBA-U21-S07ZBR SHIELDED USB CABLE; 20-71043-04R STAND"
wpid: 508525
product_brand:
  - Zebra
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Barcode Scanners
  - POS
  - POS Accessories
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/scanner-2.jpg"
---

**Scanning**
Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported: Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength: 617 nm
Tilt reading angle: 0 – 360°
Pitch reading angle: -60 – 60°
Yaw reading angle: -60 – 60°

**Ports & interfaces**
Connectivity technology: Wired
Standard interfaces: USB

**Performance**
International Protection (IP) code: IP42

**Power**
Input voltage: 5 V
Power consumption: 450 mA
