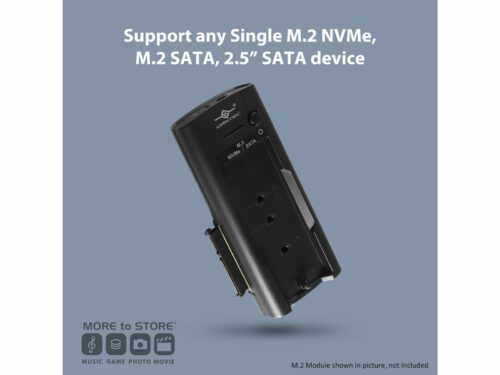

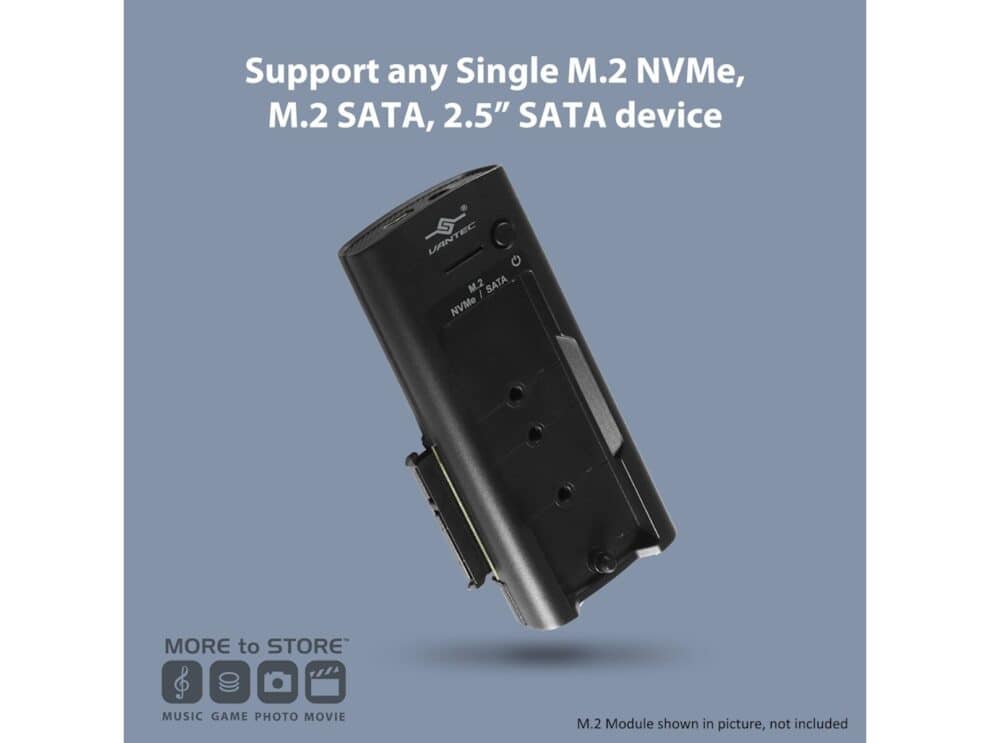

Adapter interfaces: M.2 NVMe, M.2 SATA, 2.5”/3.5”* SATA III HDD/SSD/Hybrid Drive

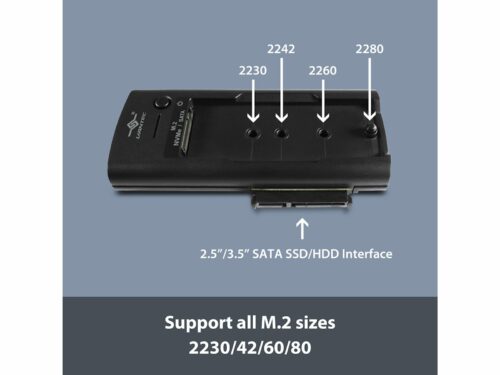

M.2 Size Support: 2230/2242/2260/2280 without or with HeatSink
M.2 with HeatSink Measurement: (W) <=30mm x (L) 80mm x (Db) 2.5mm (Df) >8.5mm
SATA Size Support: 2.5”/3.5”* SATA SSD/HDD/Hybrid Drive
Internal Interface: M.2 NVMe or M.2 SATA or 2.5”/3.5”* Standard SATA III/II/I

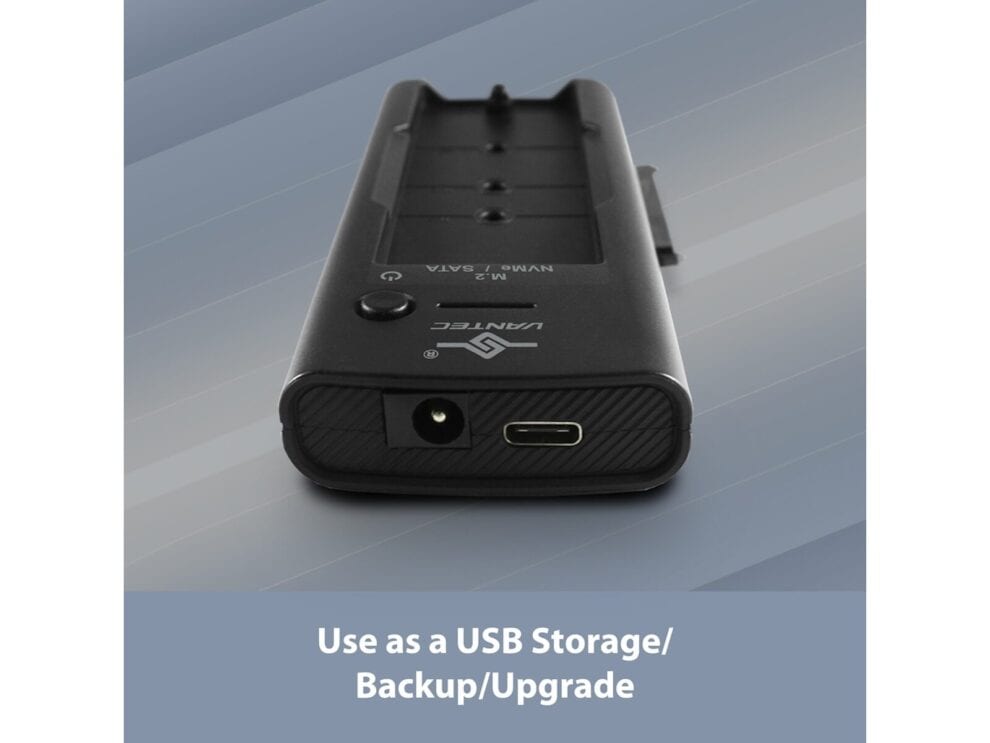

External Interface: USB 3.2 Gen2x1 Type C
Interface Cable: USB C to C/A
USB cable Length: 380 mm / 14.9 inches
Power Supply: None, Bus-powered, Comes with Power Port for Optional AC Adapter
Optional AC adapter: Universal Auto-Switching AC adapter, Output, 12VDC, 2A-3A, Center Pin Positive, Outer Dia: 5.5mm, Inner Dia: 2mm, Barrel Length: 10mm
Storage Capacity: M.2 NVMe/SATA (1/2/4/8TB or more), SATA III (4TB or more)
Material: Heavy Duty ABS

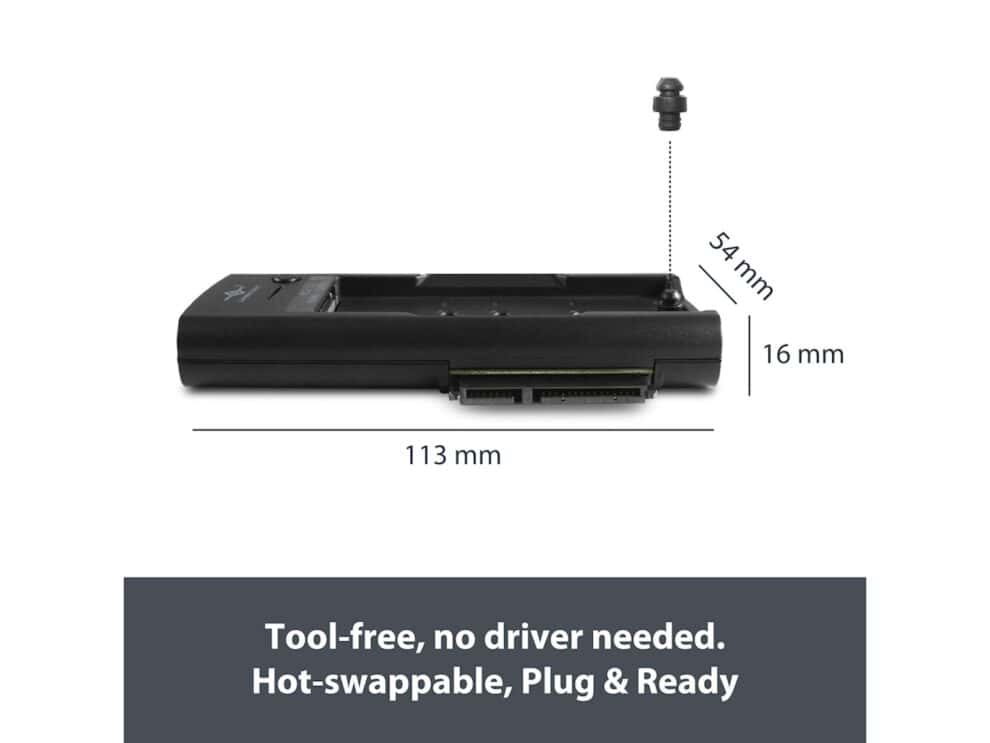

Dimension (LxWxH): 4.45 x 2.13 x 0.63 inches / 113 x 54 x 16 mm
Weight: 1.66 oz. / 47g (Adapter only)
* 3.5” SATA requires more power. MUST use Optional AC adapter to power the drive
NOTE: Since this is a BUS-POWERED Adapter, your USB port MUST provide enough power to your Storage device else it will not work. If your USB Port does not provide enough, you MUST use the Optional AC adapter, See Specifications above.
System Requirements:
• Windows OS (7/8/10/11) / OS X 10.6 or later / Latest Linux OS
• Computer with USB 3.2 Gen2 Type C/A preferred
• Your USB Port MUST provide enough power to your device, else the Optional AC adapter is required
