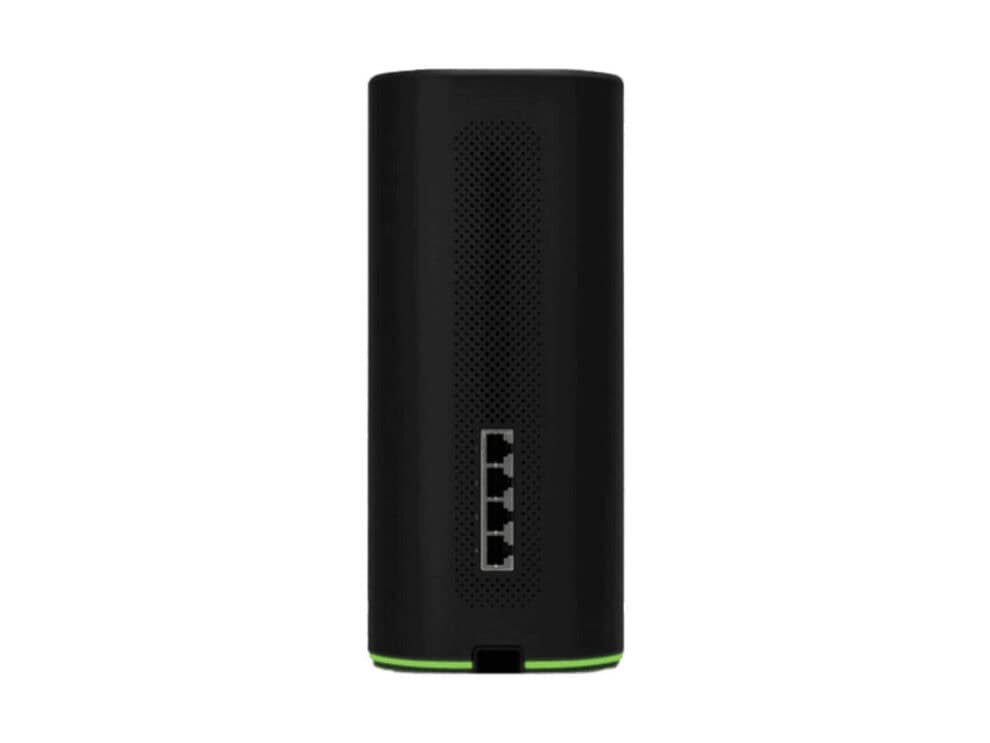

Ubiquiti’s AFI-ALN-R features a tri-band radio with 4×4 2.4GHz and 8×8 5GHz 802.11ax (WiFi 6) radios optimised for Wi-Fi 6 performance. The third radio (4×4) can be enabled to enhance the performance of 5GHz 802.11ac (Wi-Fi 5) devices. These radios deliver 7685Mbps total capacity and 16 spatial streams from a single unit. For larger areas, additional AmpliFi Alien Routers can be meshed together to extend coverage.

**Specifications**
Antenna Gain: 2.4GHz: 3dBi ; 5.8GHz: 6dBi
Beam-width: 360°
Data Rate: 2.4GHz: 1148Mbps, 5.8GHz: 1733Mbps (low band) / 4804Mbps (high band)
Ethernet Ports: 1x 10/100/1000 (WAN); 4x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 35W
Mounting: Desktop
Operating System: AmpliFi OS
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 1x Figure 8 Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100 to 240VAC
USB Ports: None

Dimensions: 110 x 110 x 250 mm
Weight: 1.2kg
