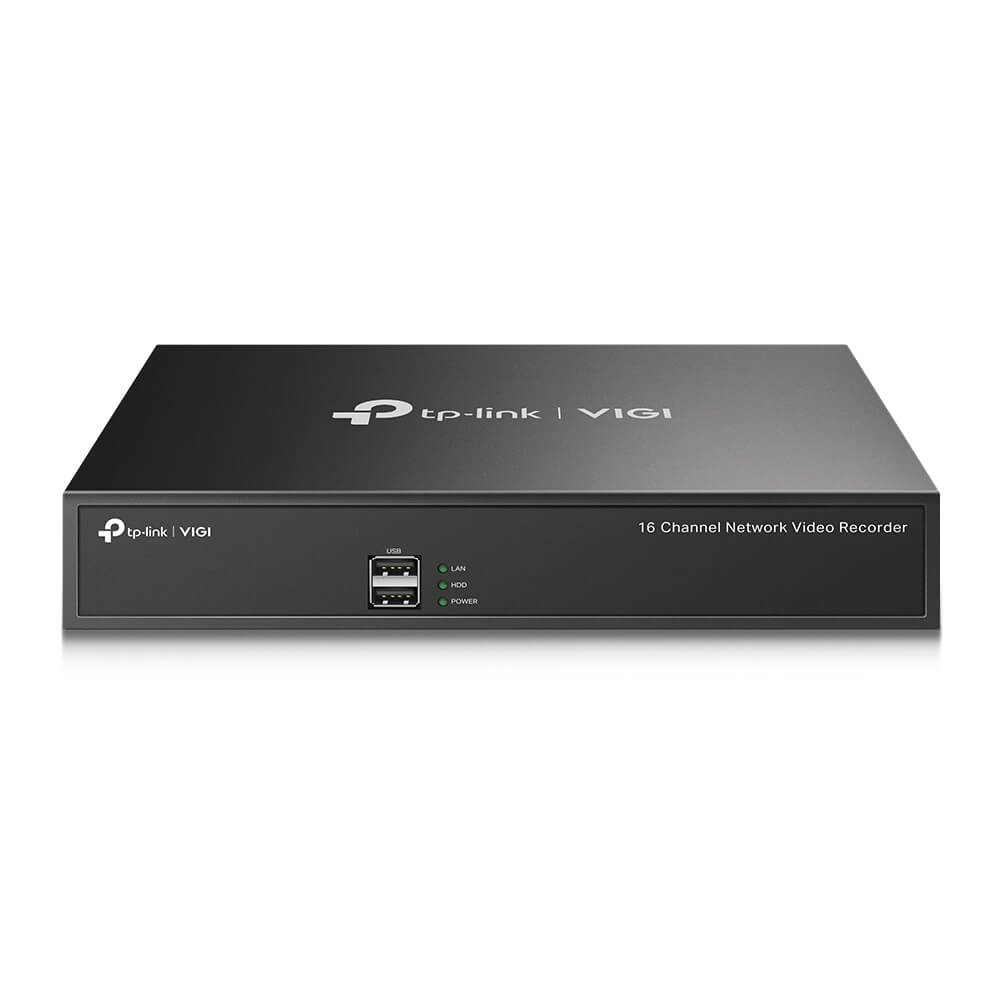

title: TP-Link VIGI NVR1016H VIGI 16 Channel Network Video Recorder
date: 2024-07-02T12:35:32Z
modified: 2026-05-22T11:05:12Z
permalink: "https://tech.co.za/product/tp-link-vigi-nvr1016h-vigi-16-channel-network-video-recorder/"
type: product
status: publish
excerpt: TCP/IP, DHCP, DNS, NTP, UPnP, 80 Mbps, 4.25 W (without disk), 13.10 W (with disk), 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
wpid: 493627
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Networking
  - CCTV
featured_image: "https://tech.co.za/wp-content/uploads/2024/08/NVR1016HUN-1.0-1_large_1614068236928n.jpg"
---

- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility\*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

**NETWORK**
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP

Incoming Bandwith: 80 Mbps

Outgoing Bandwidth: 60 Mbps

**GENERAL**
Operating Temperature: -10–55 °C

Weight: 578.5 g

Package Contents:
– VIGI Network Video Recorder
– Power Adapter
– HDD Screws
– Mouse
– Quick Installation Guide

Dimensions( W X D X H ): 246.2 × 148.2 × 45 mm

External Power Supply: 12V DC/1.5 A

Power Consumption:
– 4.25 W (without disk)
– 13.10 W (with disk)

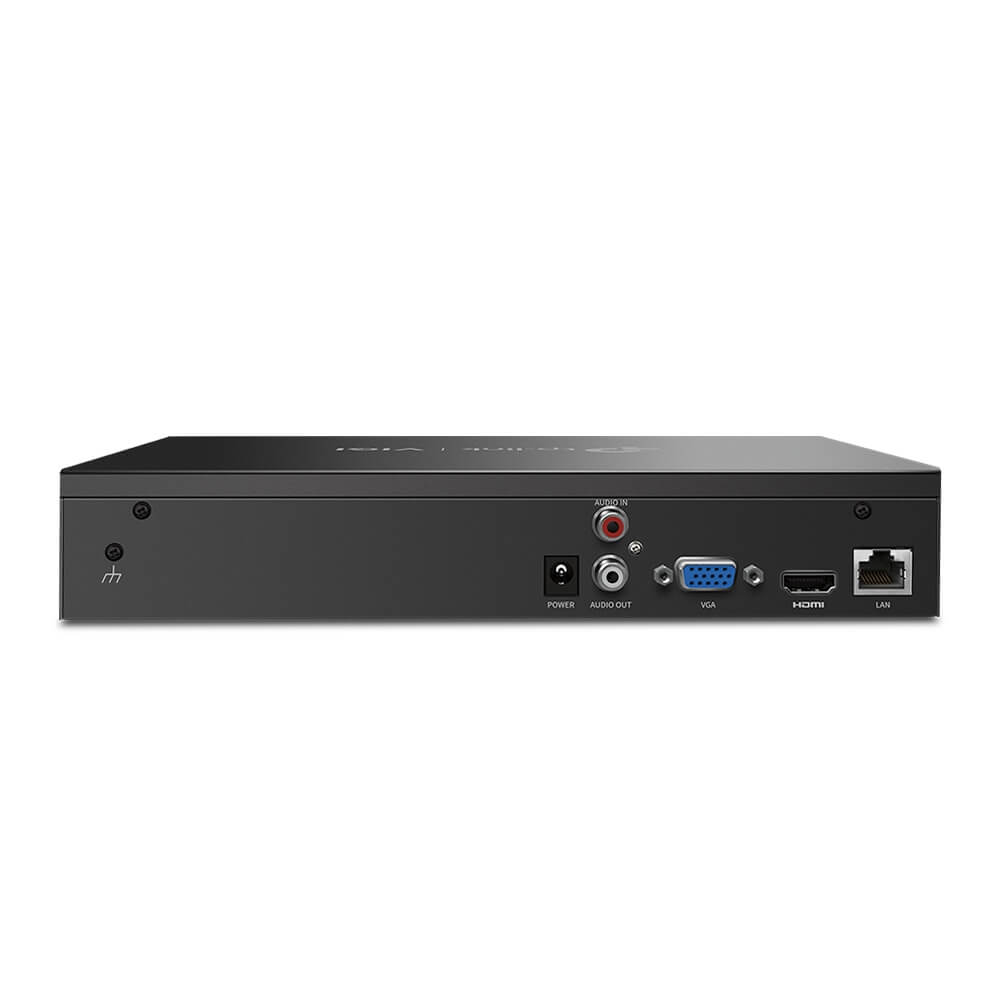

**INTERFACES**
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface: 2× USB 2.0

**HARD DISK**
SATA: 1 SATA Interface

Capacity: Up to 10 TB

**VIDEO/IMAGE**
Synchronous Playback: 16-Channel

Video Input: 16-Channel IP Video Input, up to 8 MP Resolution

Video Output:
– Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI/VGA
– Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz

Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz,1280×720/60Hz

VGA Output Resolution: 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

**DECODING**
Decoding Format: H.265+/H.265/ H.26+/H.264

Live View/Playback Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Capability: 1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP
