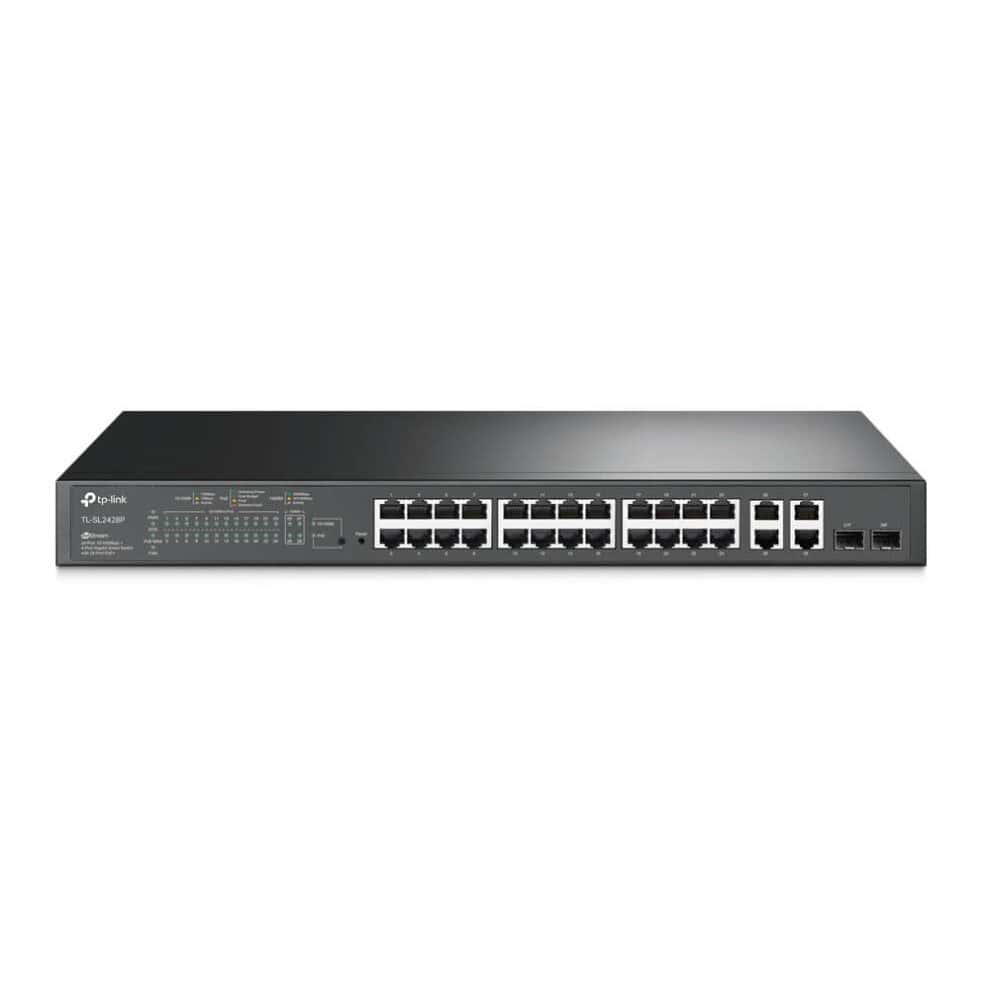

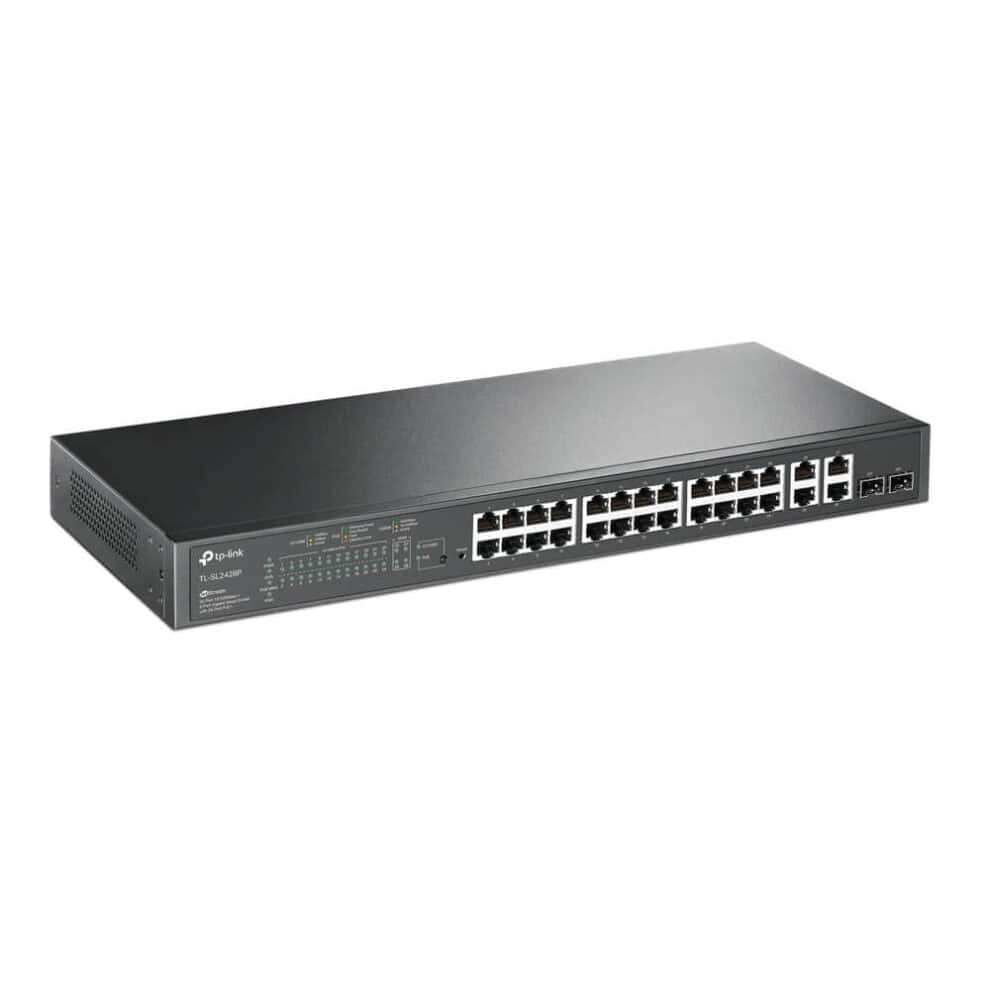

- 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W.
- Gigabit Ports: 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP Ports provide high-speed connections. Integrated into Omada SDN: Zero-Touch Provisioning*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
HARDWARE FEATURES
Standards and Protocols:
– IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad,
– IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w,
– IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface:
– 24× 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
– 2× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
– 2× Combo Gigabit Uplink RJ45/SFP Ports
Network Media :
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
– (maximum 100m)
– 1000BASE-X: MMF, SMF
Fan Quantity: 2
Physical Security Lock: Yes
PoE Budget: 250 W
Dimensions ( W x D x H ): 17.3×7.1×1.7 in.(440×180×44 mm)
Mounting: Rack Mountable
Max Power Consumption:
– V4.2: 286.7 W (220 V / 50 Hz with 250 W PD connected); 18.8 W (220 V / 50 Hz with no PD connected)
– V5: 293.6 W (110 V / 60 Hz) (with 250 W PD connected)
– V6: 291.6 W (110 V / 60 Hz) (with 250 W PD connected)
Max Heat Dissipation:
– V4.2: 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected); 64.1 BTU/h (with no PD connected)
– V5: 1001.2 BTU/hr (110 V/60 Hz) (with 250 W PD connected)
– V6: 995.09 BTU/hr (110V/60Hz) (with 250 W PD connected)
