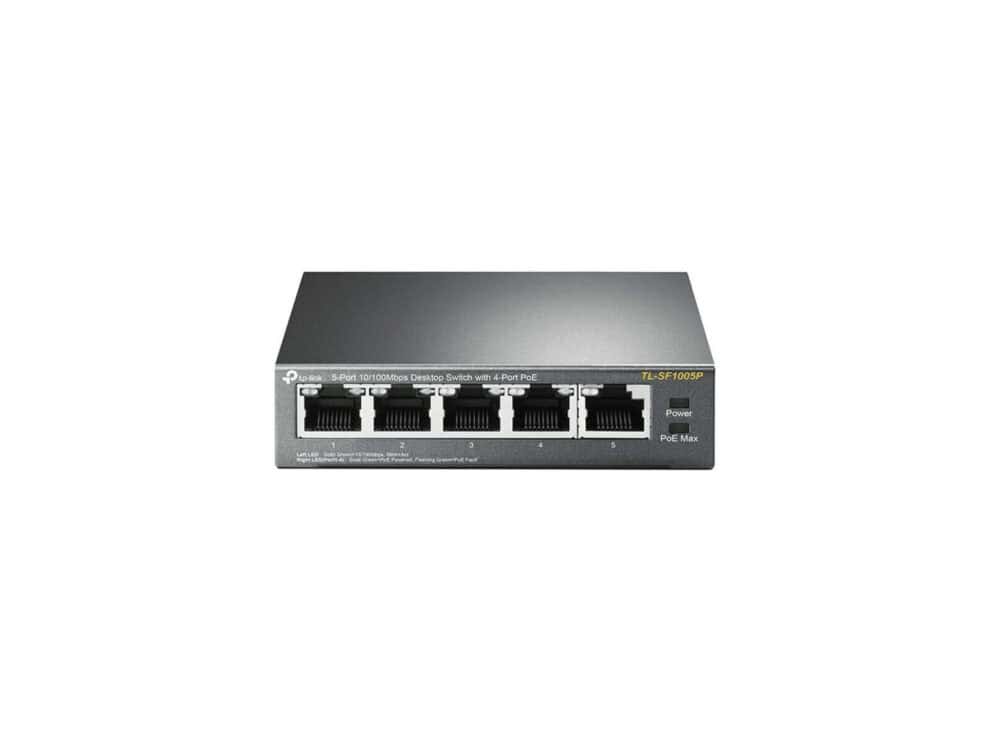

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
- 5× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and play with no configuration required
HARDWARE FEATURES
Interface:
– 5 10/100Mbps RJ45 Ports
– AUTO Negotiation/AUTO MDI/MDIX
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45):
– Standard: 802.3 af compliant
– PoE Ports: Port1- Port4
– Power Supply: 58W
Mac Address Table: 2K
Switching Capacity: 1Gbps
Dimensions ( W x D x H ): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Transmission Distance: Store-And-Forward
Max Power Consumption:
– 1.678W (max. no PD connected)
– 64.82W (max. with 58w PD connected)
Max Heat Dissipation:
– 5.73BTU/h(no PD connected)
– 221.17BTU/h(with 58W PD connected)
