Hardware Features

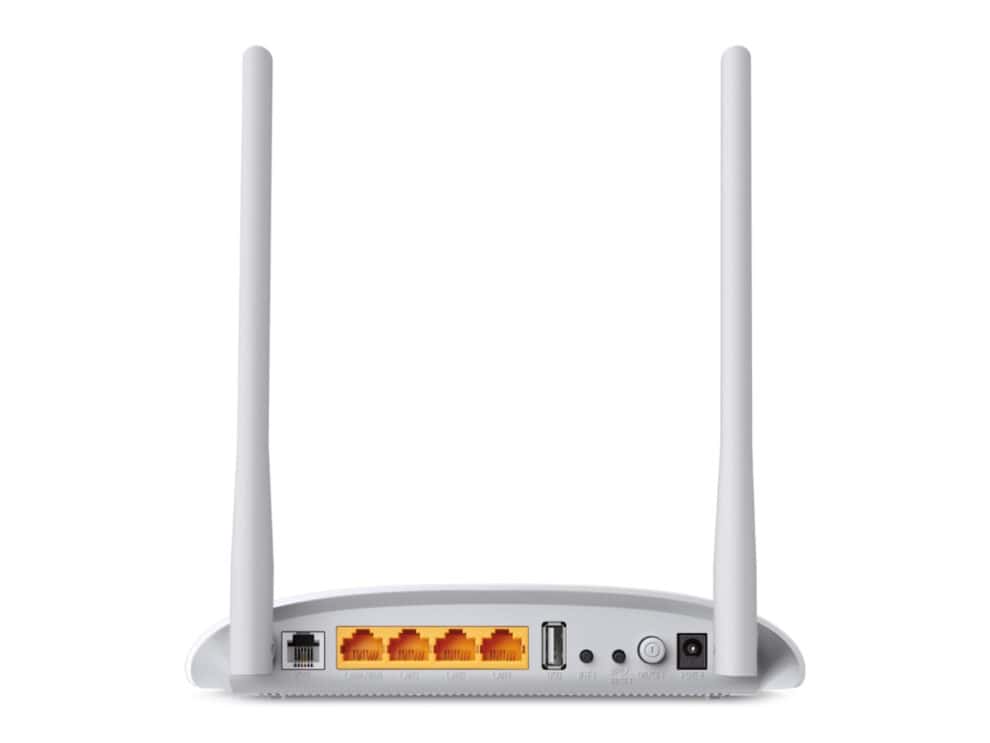

- Interface: 4 10/100Mbps RJ45 Ports
- 1 RJ11 Port
- 1 USB 2.0 Port
- Ports: 1× 10/100 Mbps LAN/WAN Port, 3× 10/100 Mbps LAN ports, 1×
- RJ11 port, 1× USB 2.0 Port
- Button: 1 Power On/Off Button
- 1 WPS/RESET Button
- 1 Wi-Fi On/Off Switch
- External Power Supply: 12VDC/1A
- IEEE Standards: IEEE 802.3, 802.3u
- VDSL2 Standards: ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP）
- ADSL Standards: Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
- ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis)
- ADSL2+ Standards: ITU-T G.992.5
- Dimensions ( W x D x H ): 7.75.11.4 in. (195×130×36mm)
- Antenna 2 × 4dBi Fixed Omni-Directional Antennas
- Antenna Type: Omni directional, Fixed
- Antenna Gain: 2 x 5dBi
Wireless Features
- Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
- Wireless Speeds: 300 Mbps at 2.4 GHz
- Frequency: 2.400-2.4835GHz
- Signal Rate: 300 Mbps at 2.4 GHz
- Transmit Power: <20dBm(EIRP)
- Wireless Functions: Enable/Disable Wireless Radio, WMM,
- Wireless Statistics
- Wireless Security: Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
- Wireless MAC Filtering
