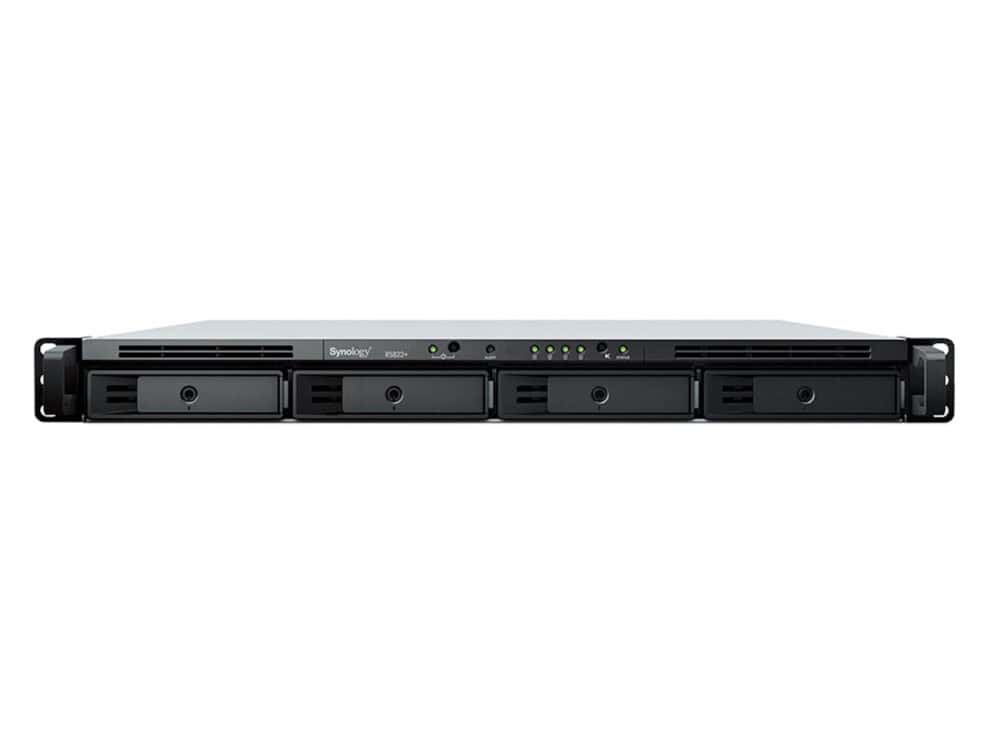

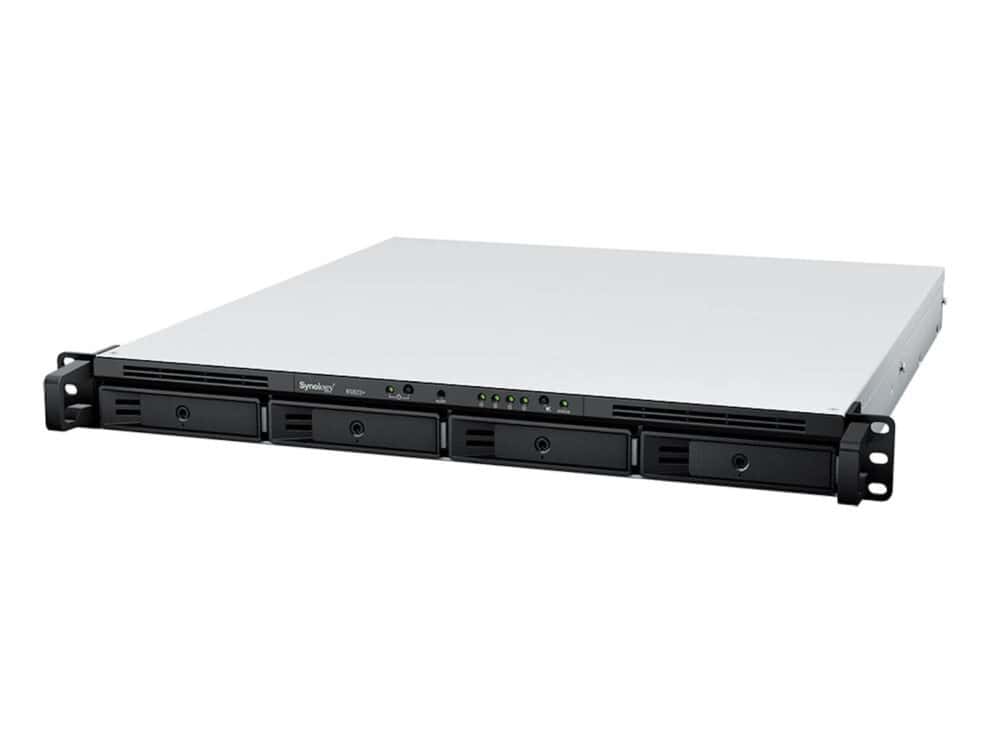

title: Synology RackStation RS822+ NAS Server Ryzen Embedded
date: 2026-01-09T12:12:37Z
modified: 2026-05-19T07:22:32Z
permalink: "https://tech.co.za/product/synology-rackstation-rs822-nas-server-ryzen-embedded/"
type: product
status: publish
excerpt: "The compact 1U 4-bay Synology RackStation RS822+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.\\nDownload Datasheet"
wpid: 563694
product_brand:
  - Synology
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Data Storage
  - Internal HDD (Hard Disk Drive)
featured_image: "https://tech.co.za/wp-content/uploads/2026/01/RS822a.jpg"
---

| Hardware Specs |  |  |
| --- | --- | --- |
| Hardware Specifications | RS822+ |  |
| CPU | CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 |  |
| CPU Core | 4 |  |
| CPU Architecture | 64-bit |  |
| CPU Frequency | 2.2 GHz |  |
| Memory | System Memory | 2 GB DDR4 ECC SODIMM |
| Total Memory Slots | 2 |  |
| Maximum Memory Capacity | 32 GB (16 GB x 2) |  |
| Storage | Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 8 (RX418 x 1) |  |
| Drive Type [(See all supported drives)](https://www.synology.com/en-us/compatibility?search_by=drives) | 3.5″ SATA HDD 2.5″ SATA SSD |  |
| Hot Swappable Drive\* |  |  |

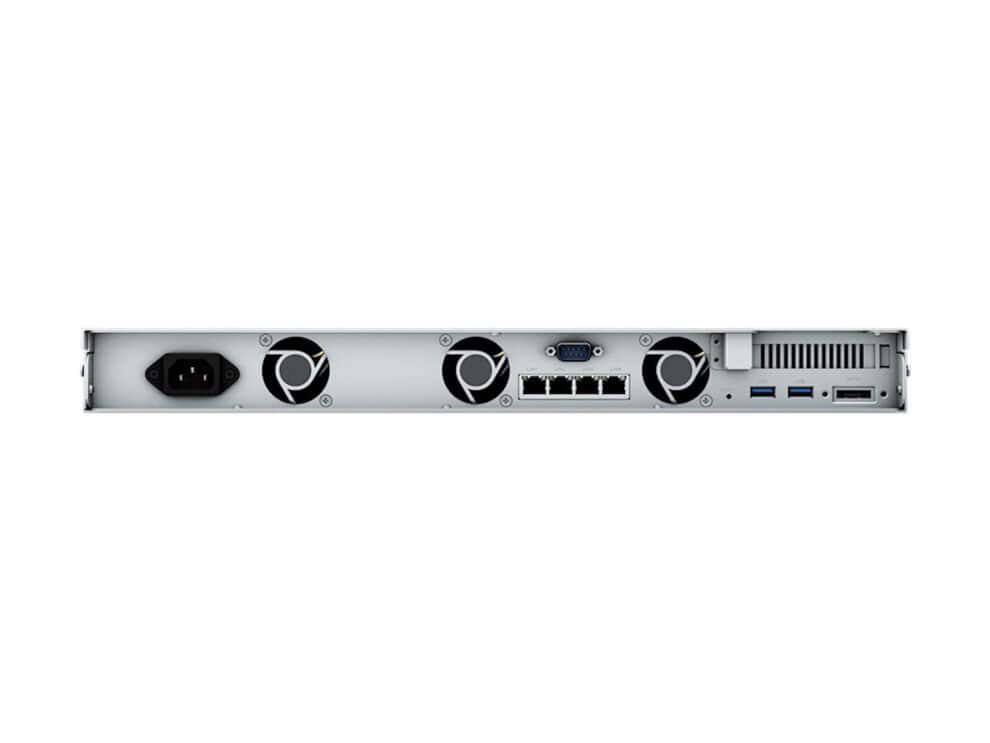

| External Ports | RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port | 2 |  |
| Expansion Port | 1 |  |
| Expansion Port Type | eSATA |  |
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 480 mm x 492.6 mm |  |
| Weight | 6.4 kg |  |
| Rack Installation Support\* | 4-post 19″ rack (Synology Rail Kit – [RKM114](https://www.synology.com/en-us/products/RKM114)/[RKS-02](https://www.synology.com/en-us/products/RKS-02)) |  |
| Others | System Fan | 40 mm x 40 mm x 3 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |  |
| Noise Level\* | 27.4 dB(A) |  |
| Scheduled Power On / Off |  |  |
| Power Supply Unit / Adapter | 150 watts |  |
