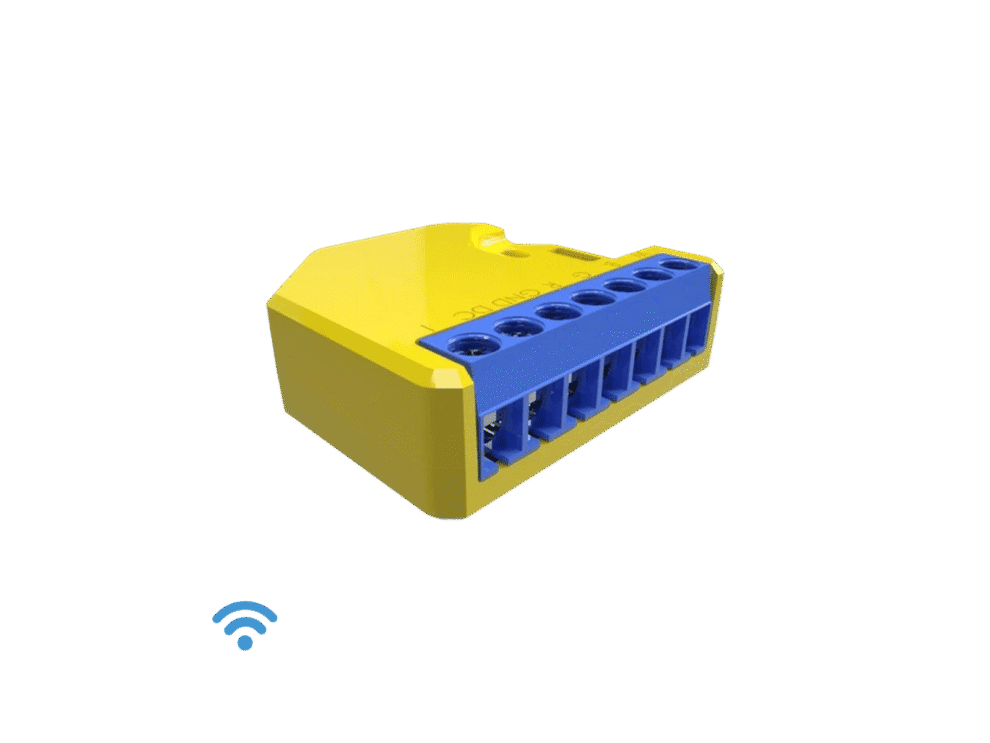

Wi-Fi-operated relay for LED smart strips
- Connects like any LED controller.
- Supports any 12v or 24v White, RGB, RGBW led strips and 12/24v led bulbs, with up to 288W combined power.
- Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
- Has an embedded web server and connects to your Wi-Fi network
Specifications
| POWER | |
|---|---|
| Power supply AC | No |
| Maximum load | 12A |
| Power supply DC | 12 – 24V |
| Channels | 4 Channel |
| DC Power Output 12V per channel | 45W |
| DC Power Output 24V per channel | 90W |
| DC Power Output 12V combined power | 144W |
| DC Power Output 24V combined power | 288W |
| SPECIAL FUNCTIONS | |
| Device temperature protection | No |
| Overload protection | No |
| Power measurement | Yes |
| Dimming | Yes |
| Working without a neutral line | No |
| FEATURES | |
| Colour changing | Yes |
| Predefined effects | Yes |
| Operational temperature | 0°C to + 40 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 – 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 43mm x 38mm x 14mm |
