AMD Ryzen™ Embedded Performance.

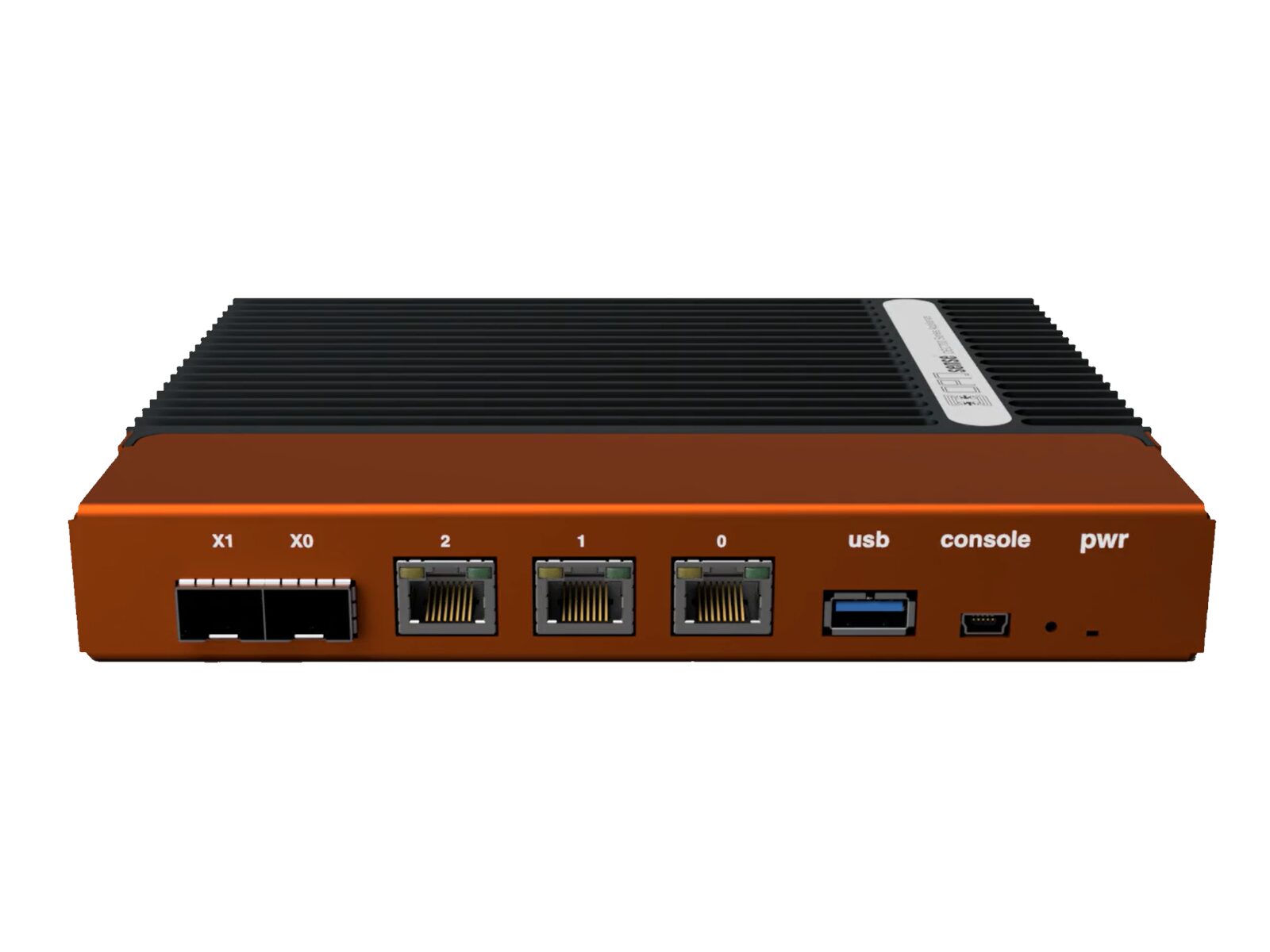

A fan less desktop appliance, the full package in a compact housing at an affordable price.
Exceptional performance for businesses & enterprise in a 1U rack enclosure.
This model includes 8GB DDR4 RAM, 256GBSolid State Flash and can handle upto 8.5Gbps Firewall & 1.2Gbps IPsec throughput (AES256GCM16).
Package Contents
- Fan less Desktop appliance
- Power supply with Matching power-cord
- Configuration cable
- Quickstart guide
Full Specifications
| Models | DEC750 |
 | |
| Software | |
| Preinstalled software | OPNsense® |
| License | Open Source + 1 year free Business Edition |
| Hardware Specifications | |
| Typical Applications | Firewall / Routing, VPN, IDPS & Webproxy |
| 2.5GbE RJ45 Ports [ 100/1000/2500Mbps ] / 10Gbps SFP+ Ports | 3 / 2 [5 Ports Total] |
| USB Ports | 1 |
| Console Port | 1 |
| Internal Storage | 256GB Solid State Flash |
| Memory | 8GB DDR4 |
| CPU Cores | 4 / 8 Threads (max frequency 2.2Ghz) |
| Virtual Interfaces (802.1q VLANS) | 4093 |
| System Performance | |
| Firewall Throughput | 10Gbps |
| Firewall Packets Per Second | 830Kpps |
| Firewall Port to Port Throughput | 8.5Gbps |
| Firewall Port to Port Packets Per Second | 719Kpps |
| Concurrent Sessions | 7000000 |
| Firewall Latency (average) | 150us |
| Firewall Policies (Recommended Maximum) | 10000 |
| IPsec VPN Throughput (AES256GCM16) | 1.2Gbps |
| IPsec VPN Packet Per Second (AES256GCM16) | 107Kpps |
| Threat Protection Throughput Packet Per Second | ~85Kpps |
| Threat Protection Throughput | ~1Gbps |
| High Availability with State Synchronisation | Requires Two |
| Dimensions | |
| Height x Width x Length (mm) | 28 x 190 x 160 |
| Height x Width x Length (inches) | 1.1 x 7.5 x 6.3 |
| Form Factor | Desktop |
| Weight (appliance only) | 842g |
| Environment | |
| Power Requirements | 100-240VAC, 50-60Hz |
| Maximum Current (AC) | 0.8A |
| Power Consumption (Typical) | 15W |
| Heat Dissipation (Typical) | 51.2 BTU/hr |
| Operating Temperature | 0 to +45°C |
| Storage Temperature | -20 to +70°C |
| Humidity | 10-90% non-condensing |
| Regulatory Compliance | |
| FCC part 15 Class A, CE, Rohs | |
| More Info: | https://shop.opnsense.com/product/dec750-opnsense-desktop-security-appliance/ |
