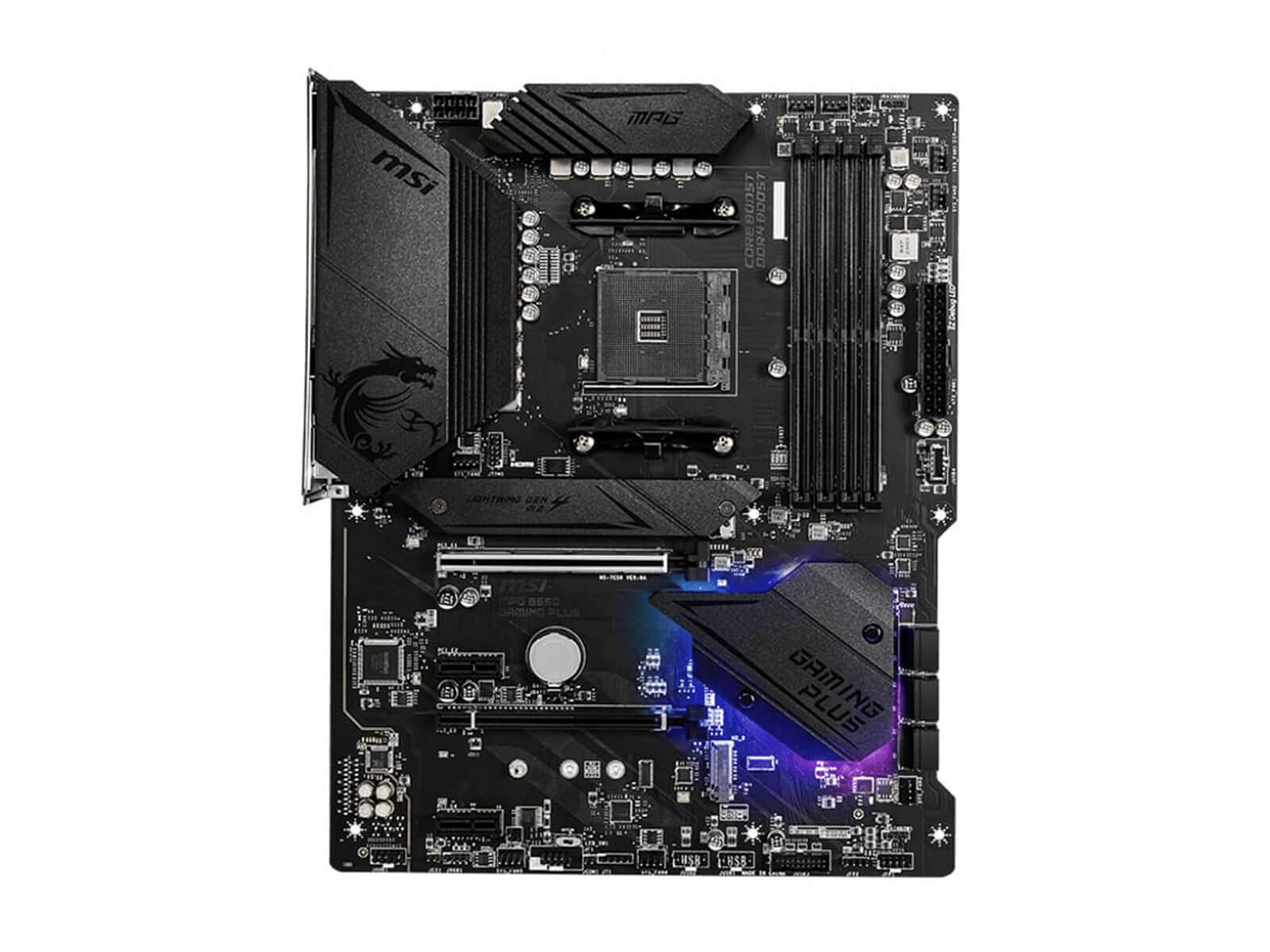

The MPG series brings out the best in gamers by allowing full expression in colour with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the centre of attention and top leaderboards in style. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
FEATURES:
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop gaming experience
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Flash BIOS Button with Optimized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Audio Boost: Reward your ears with studio grade sound quality
SPECIFICATIONS:
- Socket: AM4
- CPU (Max Support): RYZEN 9
- Chipset: AMD B550 Chipset
- DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 2
- PCI-E x1: 2
- SATAIII: 6
- M.2 Slot: 2
- RAID: 0/1/10
- TPM (header): 1
- LAN: 1x Realtek® 8111H Gigabit LAN controller
- USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 4
- Audio ports (Rear): Realtek® ALC892/ALC897 Codec
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- CrossFire: Yes
- Operating System: Support for Windows® 10 64-bit
