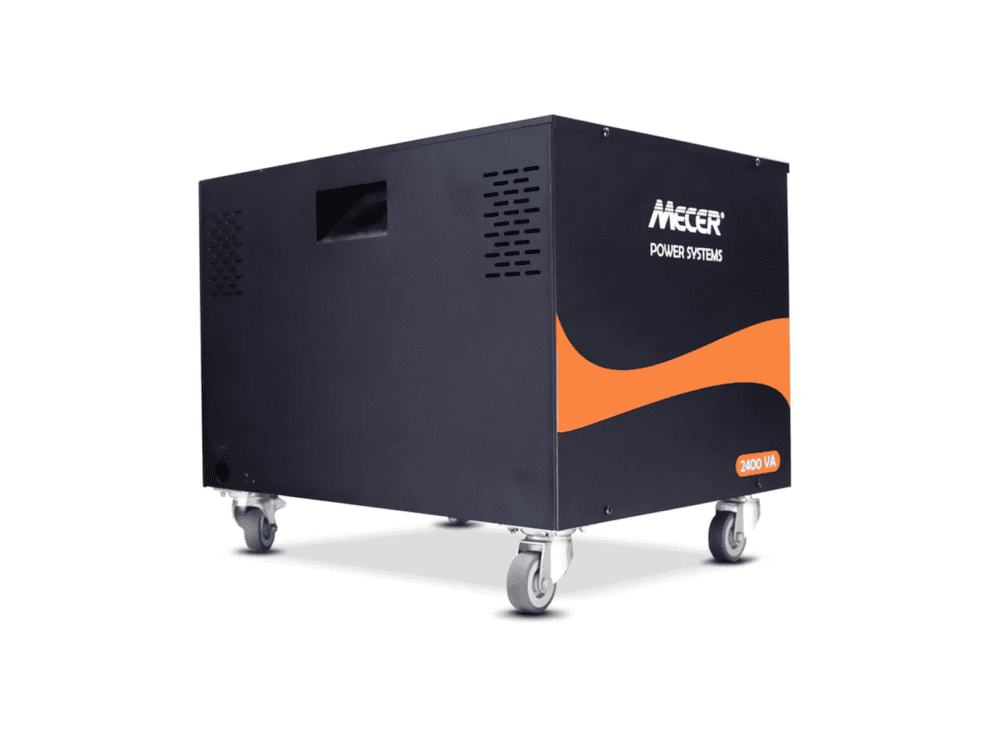

Mecer Inverter 2400VA/1440W – BBONE-024S+
Inverter housed in a portable metal casing with space to fit 2x Deep Cycle battery (Not Included).
Specifications:
– Capacity – 2400va/ 1440w
Input:
– Voltage – 230 Vac
– Acceptable Voltage Range – 90-280 Vac
– Frequency – 50 Hz/60 Hz (Auto Sensing)
Output:
– Ac Voltage Regulation (Batt. Mode) – ± 10%
Battery: (Not Included)
– Battery Type And Numbers – 2x 12V 100ah (Not Included)
Protection:
– Full Protection – Overload, Short Circuit, And Polarity Reserve Protection
Physical:
– Dimension – 420mm(H) X 440mm (W) X 450mm (L)
– Operating Environment:
– Humidity – 0 To 90% Relative Humidity(Non-Condensing)
– Operating Temperature – 0 Cto 40c
– Storage Temperature – 15c To 50c
Features:
– Simulated Sine Wave Inverter
– Wide Input Voltage Range
– 2.4kVA 1440W DC-AC Inverter
– LCD Display For Comprehensive Information
– Overload, Short Circuit, And Reverse Polarity Protection
Efficiency: (Peak) – 82%
– Transfer Time – 20 Ms Typical
– Waveform (Batt. Mode) – Simulated Sine Wave
Warning:
Charging and discharging a battery multiple times a day will significantly deteriorate its performance. Please note the limitations of each battery technology:
- Lead-acid batteries can only be discharged up to 50% before irreversible damage occurs.
- Gel lead-batteries can often be discharged up to 70% before irreversible damage occurs.
- Lithium batteries can be fully discharged if they are protected by a Battery Management System.
Due to the above limitations, loss of battery capacity is not covered under warranty.
