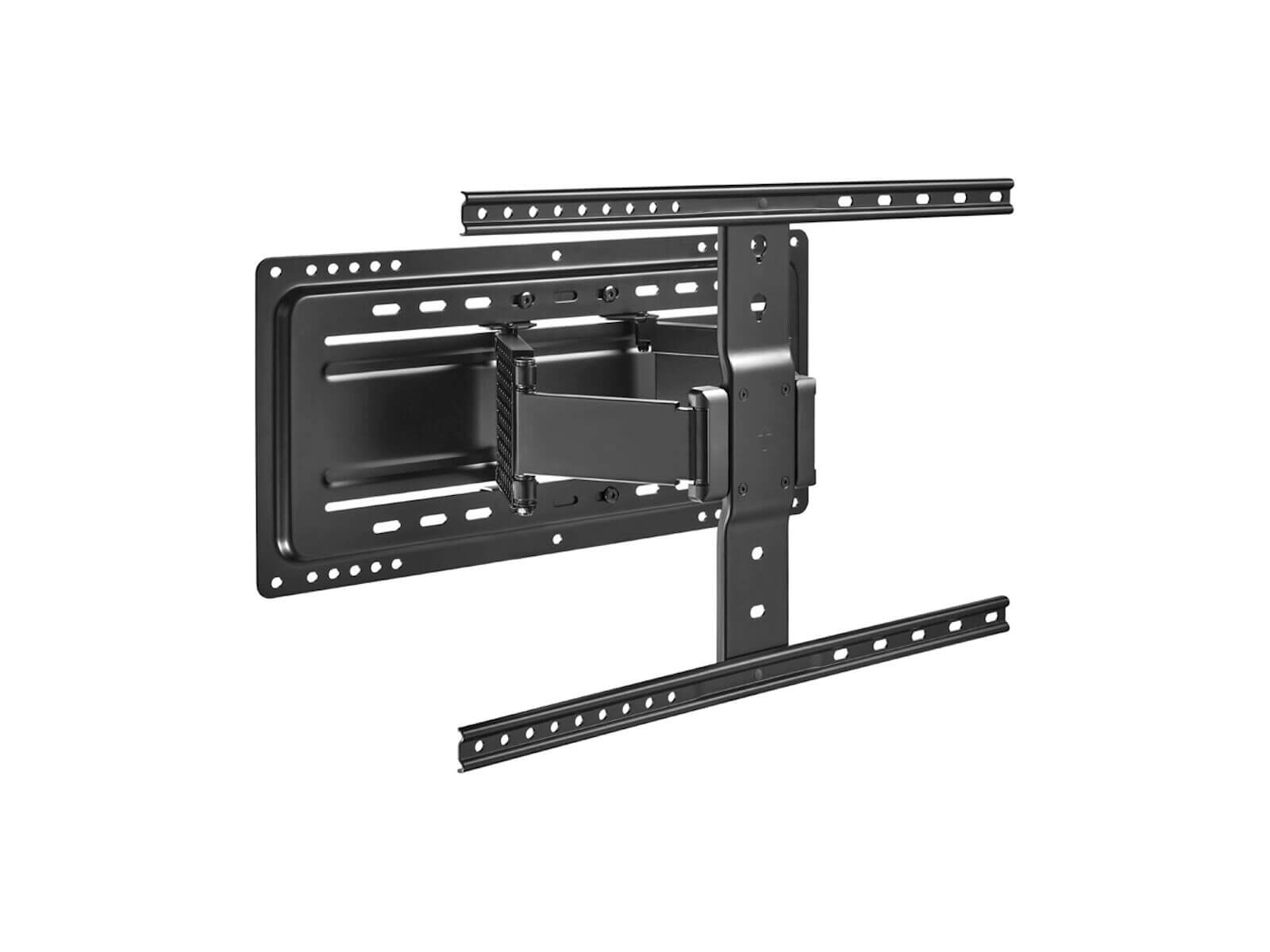

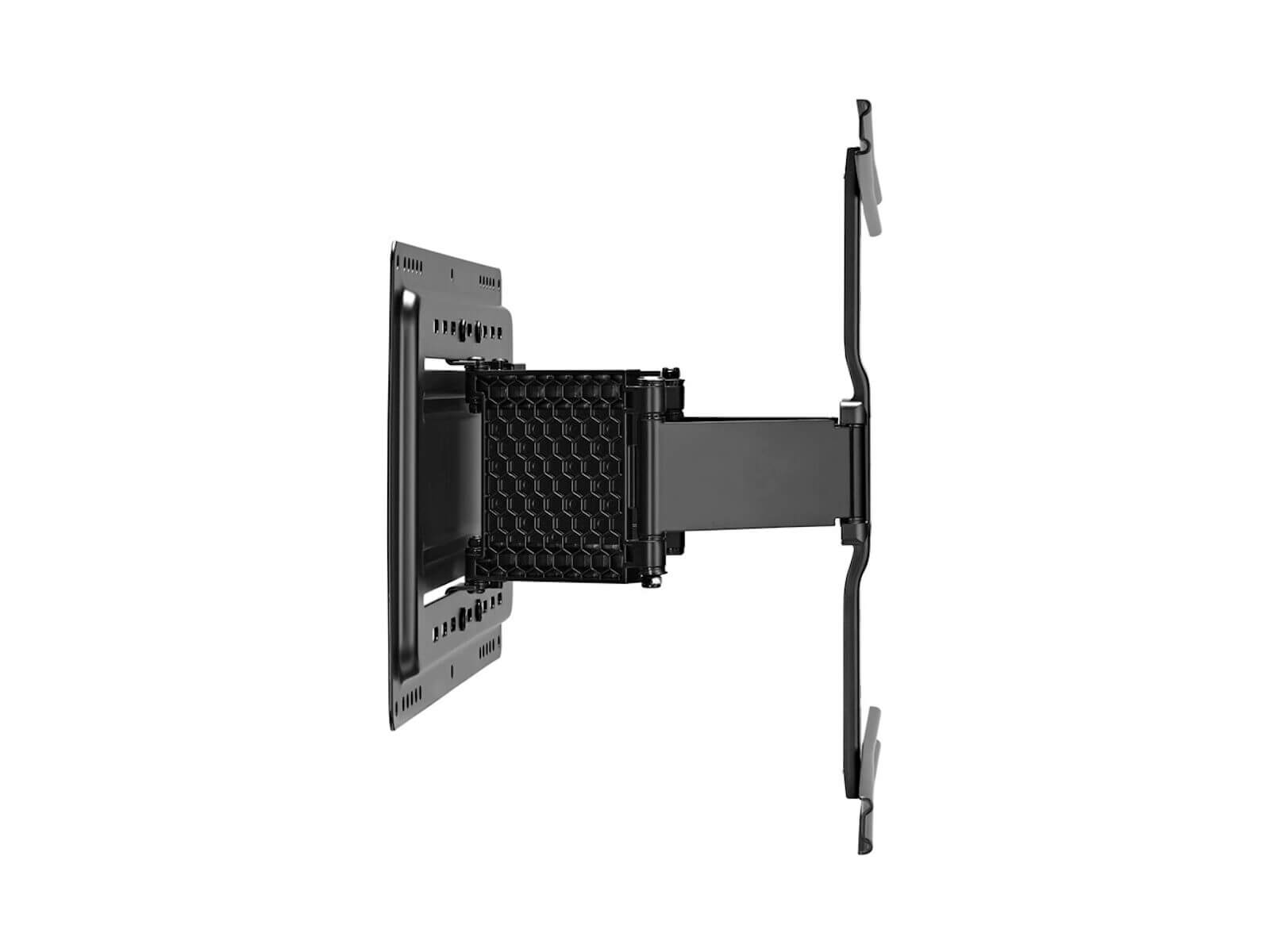

The LPA72-464A Ultra-Slim Articulating Full-Motion Wall Bracket combines aesthetics and pragmatism. It blends a TV with a living area, just like a piece of art, with its ultra low profile. It can be installed on off-centre studs and finely adjusted later, leveling the TV for best viewing.
FEATURES:

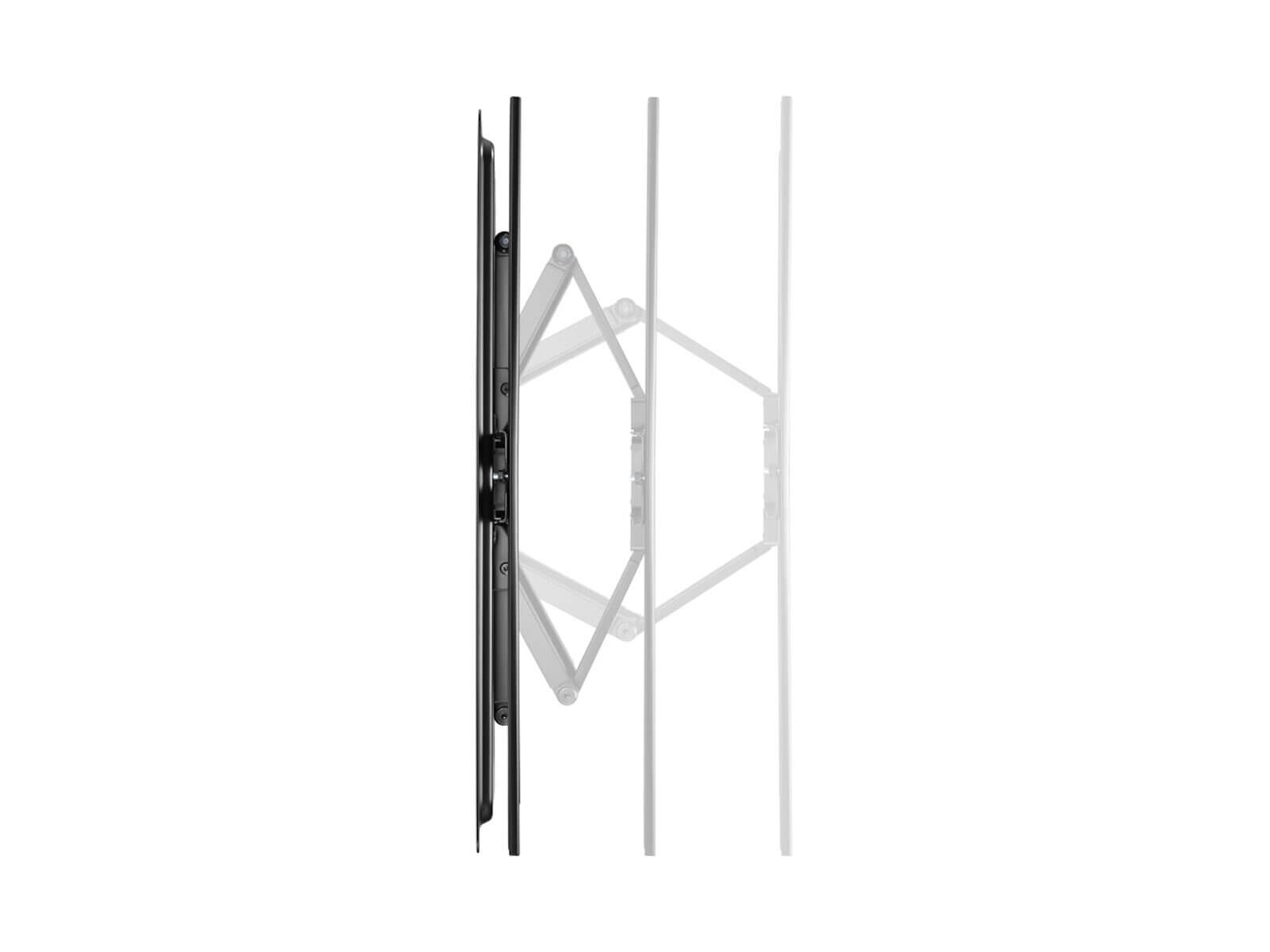

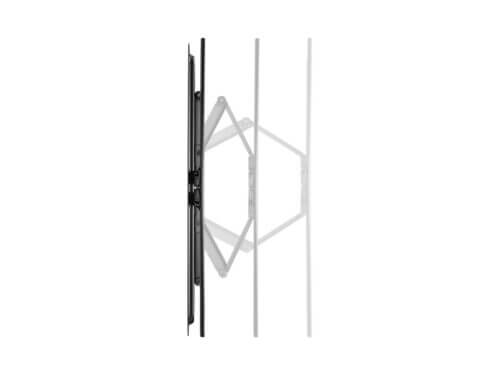

- Folding Design – saves space (keeping the screen and arm out of the way when not in use)
- Free-Tilt and Swivel Design – for multiple TV viewing angles
- Post-Install Lateral Shift – makes it easy to center the TV on the wall, even with off-centre studs

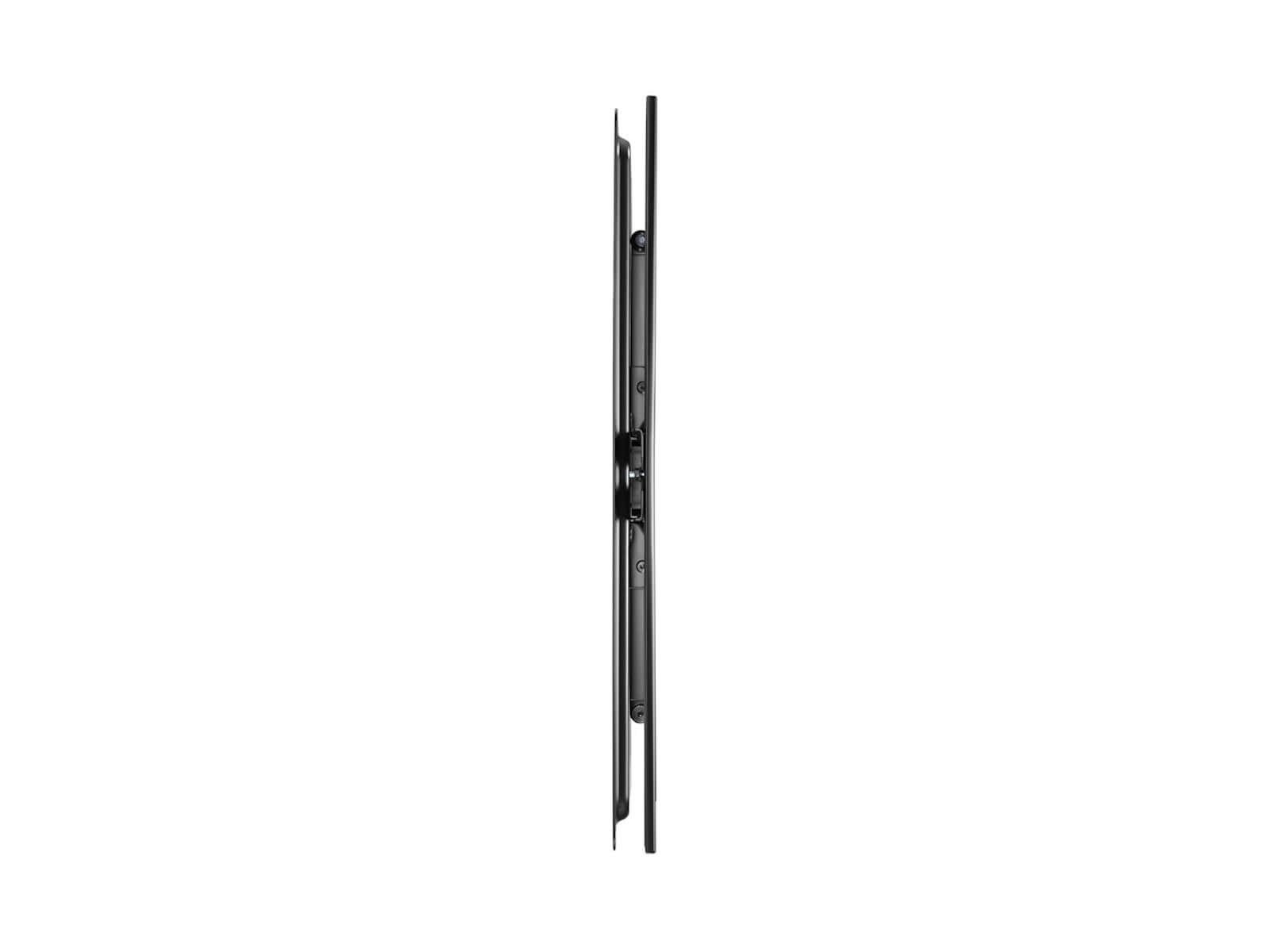

- Ultra-Slim Design
SPECIFICATIONS:
| Material: | Aluminium, Steel and Plastic |
| Metal Sheet Thickness: | VESA Panel THK = 2.5mm pickling sheet |
| Wall Plate THK = 2.5mm pickling sheet | |
| Surface Finish: | Powder Coating |
| Colour: | Matte Black |
| Dimensions: | 281 × 650 × 434mm |
| Fit Screen Size: | 37-90″ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA Only |
| VESA Compatible: | 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 400×400, 600×300, 600×400 |
| Max. Mounting Hole: | 600×400 |
| Weight Capacity: | 50kg |
| Profile: | 38~281mm |
| Tilt Range: | 0°~-10° |
| Swivel Range: | +30°~-30° |
| Screen Level: | +1°~-1° |
| Screen Freely Tilting: | Yes |
| Installation: | Solid Wall, Double Stud (406mm / 450mm / 600mm) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Lateral Shift Wall Plate |
| Direction Indicator: | Yes |
| Cable Management: | No |
| Anti-theft: | No |
