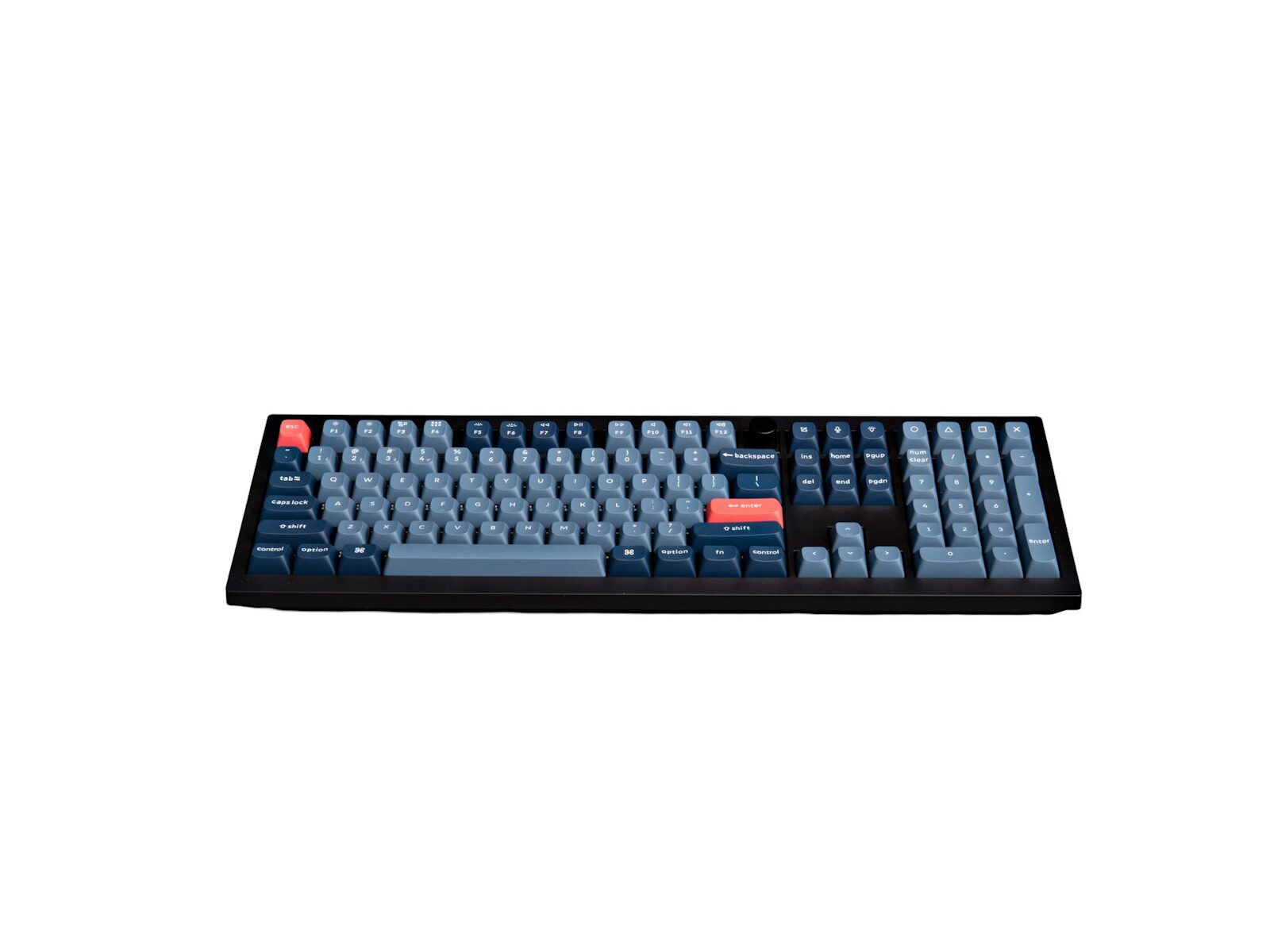

The Keychron V6 Max Wireless Custom Keyboard – BANANA Switch offers an 1800 compact layout, providing a full set of keys, including a numpad, in a space-efficient design. It features both 2.4 GHz wireless connectivity with a 1000 Hz polling rate and Bluetooth 5.1, allowing seamless multitasking across multiple devices. The gasket mount design, combined with sound-absorbing foam, ensures a comfortable and quiet typing experience.

Double-shot PBT keycaps provide durability and a premium feel. With QMK/VIA support, users can fully customize key functions and macros to suit their preferences. Hot-swappable sockets enable easy switch customization without soldering, and south-facing RGB LEDs offer vibrant backlighting. The V6 Max is compatible with both Mac and Windows systems, featuring a system toggle and additional keycaps for each. Exclusive Gateron Jupiter mechanical switches in the fully assembled version offer a lifespan of up to 80 million keystrokes, ensuring long-lasting performance.

**FEATURES:**

- Customisable keyboard
- 2.4GHz & Bluetooth connection
- ARM architecture MCU with 256K flash
- OSA profile double-shot PBT keycaps
- Gasket mount design with PC plate
- Hot-swappable
- South-facing RGB LED lights
- Gateron Jupiter switch (BANANA)
- Screw-in PCB stabilisers

**SPECIFICATIONS:**

- Colour: Carbon Black
- Material: ABS Plastic
- Plate Material: PC
- Mount Style: Gasket Mount Design
- Battery: 4000 mah rechargeable li-polymer battery
- Charging Time: ± 5 hours
- Bluetooth Version: 5.1
- Compatible System: Windows/macOS/Linux
- N-Key Rollover (NKRO): Yes for both wireless and wired modes
- Hot-swappable: Yes.
- MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
- Switches: Gateron Jupiter (Fully Assembled Version)
- Backlight: South-facing RGB LED
- Stabiliser: Screw-in PCB stabs

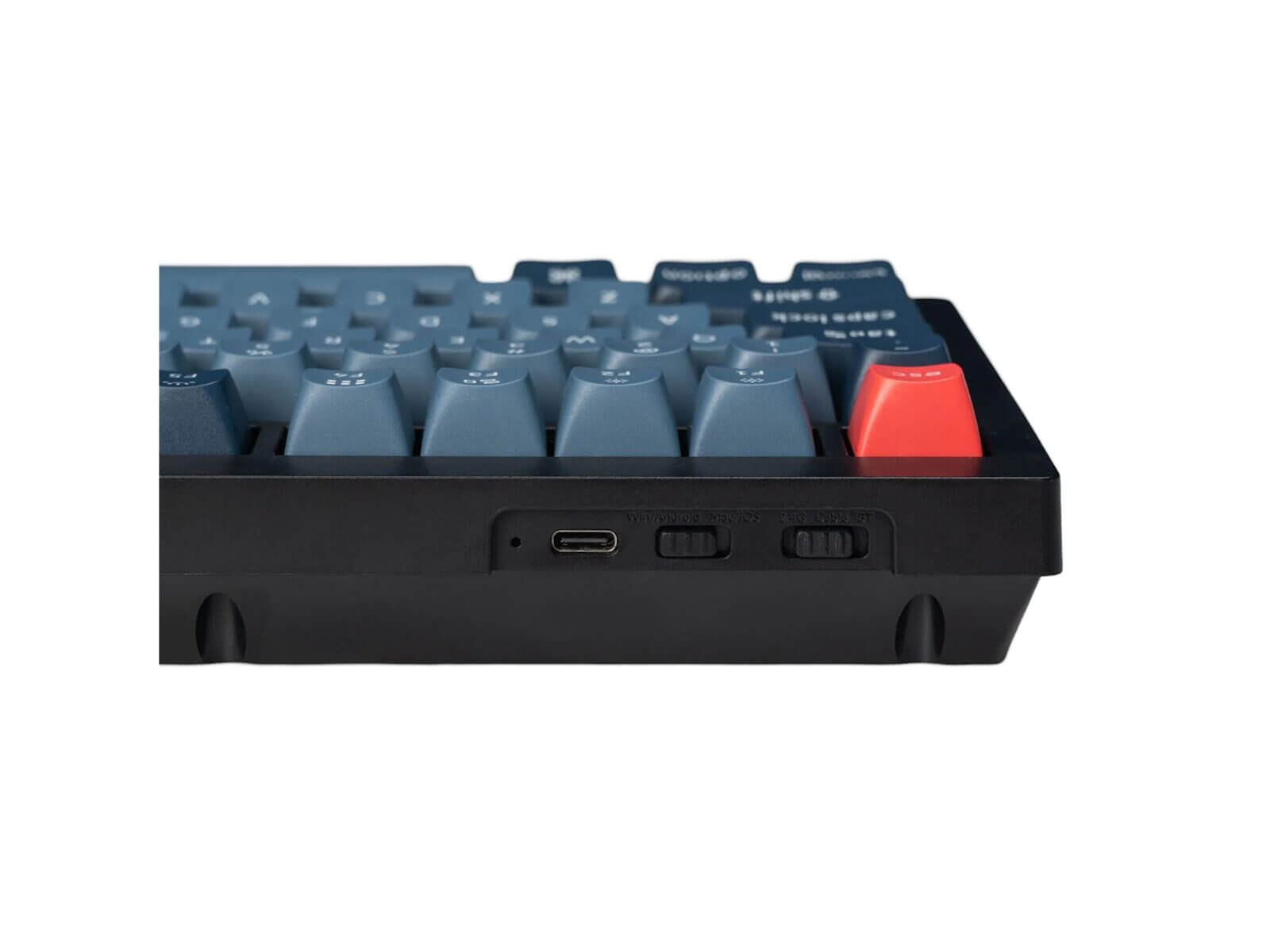

- Charging Port: USB Type-C
- Cable: Type-C cable + Type-A to Type-C adapter
- Operating Environment: -10℃ to 50℃

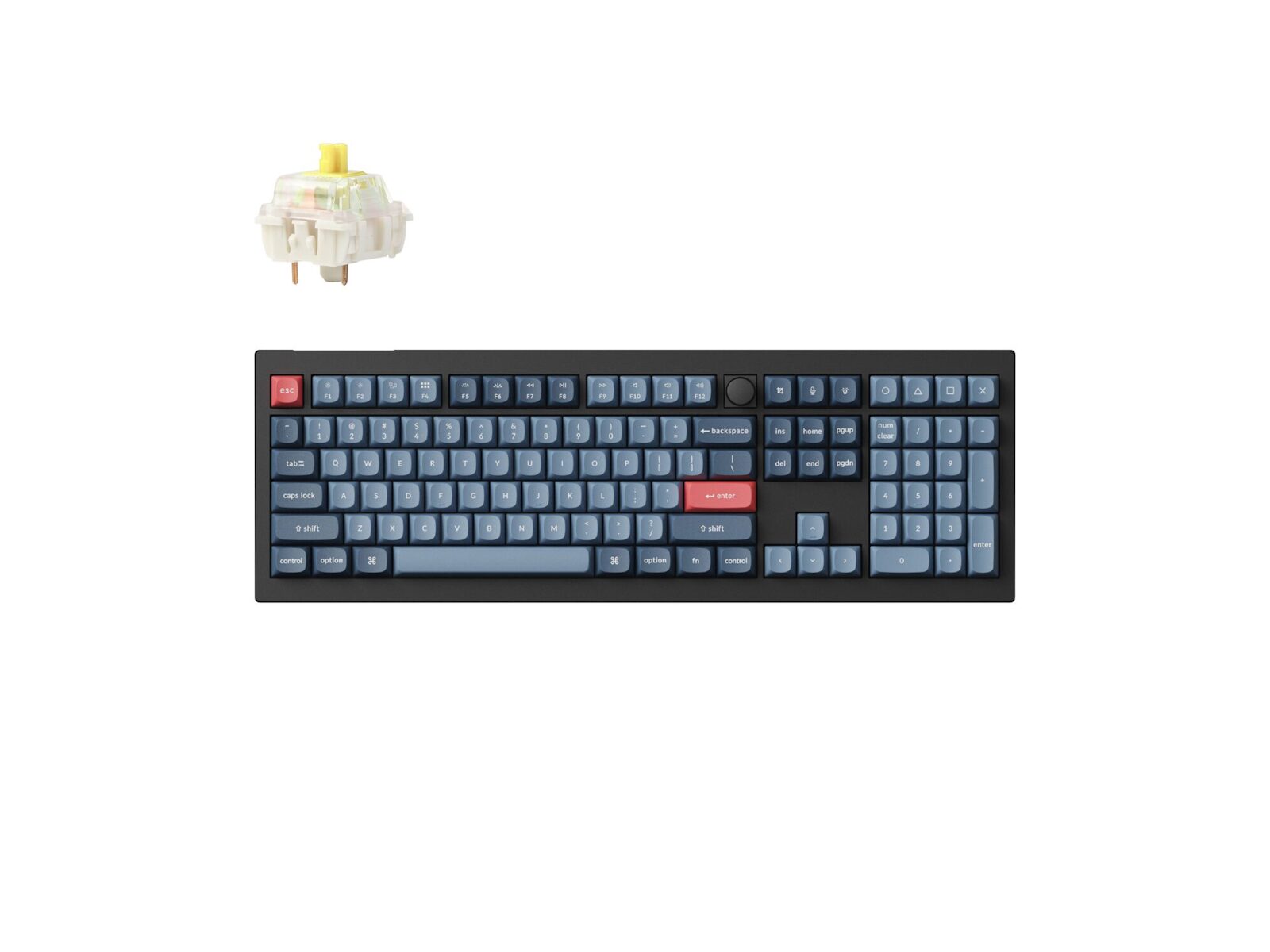

- Gateron Jupiter Switch (BANANA):
    - Operating force: 59 ± 10 gf
    - Pre-travel:2 ± 0.6 mm
    - Travel distance: 3.4mm max.
    - Behaviour: Tactile (Similar to Panda switches)
    - Pre-lubed: Yes
    - Sound level: Gentle
    - Suitable for: Office/Gaming

**WHAT’S IN THE BOX:**





- Keychron V6 Max Wireless Custom Keyboard – BANANA Switch x1
- Type-C to Type-C Cable x1
- Type-A to Type-C Cable x1
- Extension Adapter for Receiver x1
- Type-A 2.4GHz Receiver x1
- Type-C 2.4GHz Receiver x1
- Keycap & Switch Puller x1
- Screwdriver x1
- Hex Key x1
