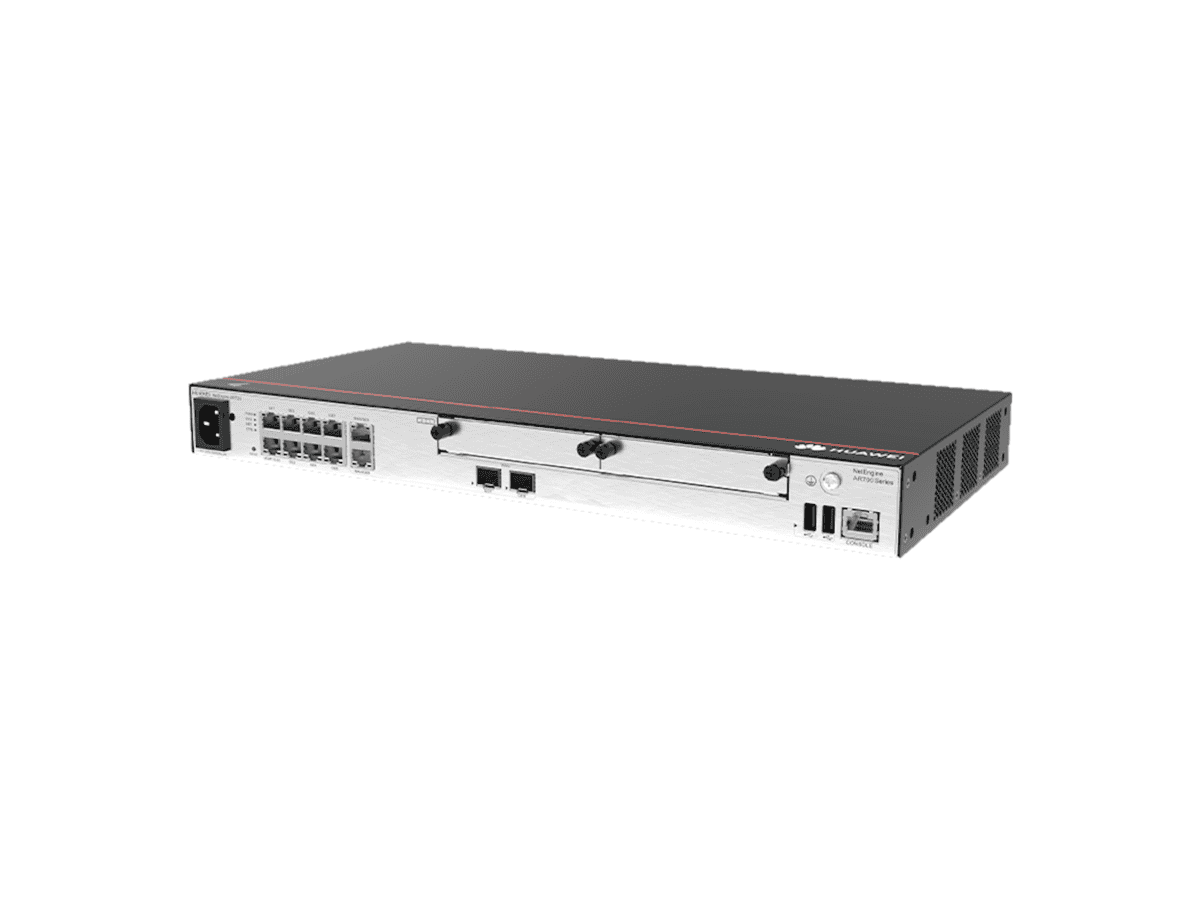

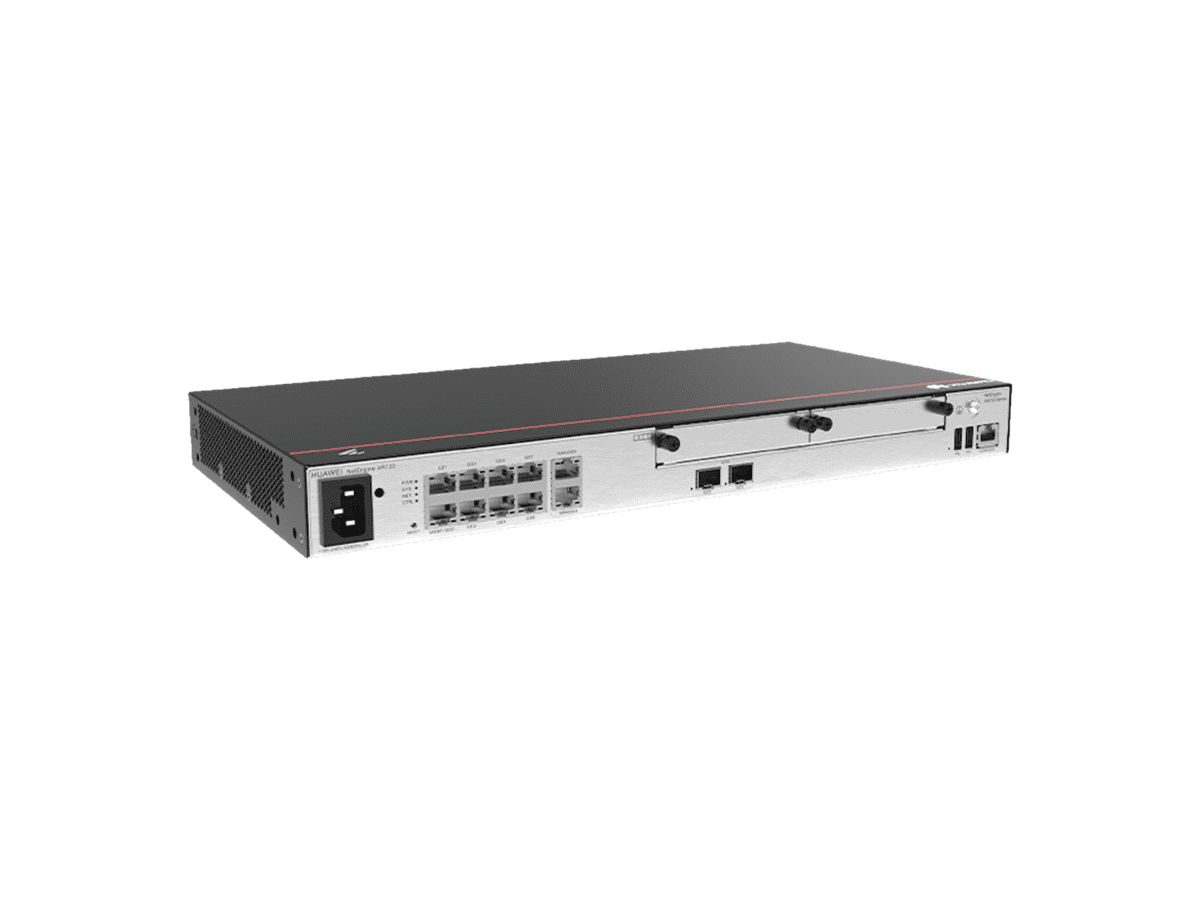

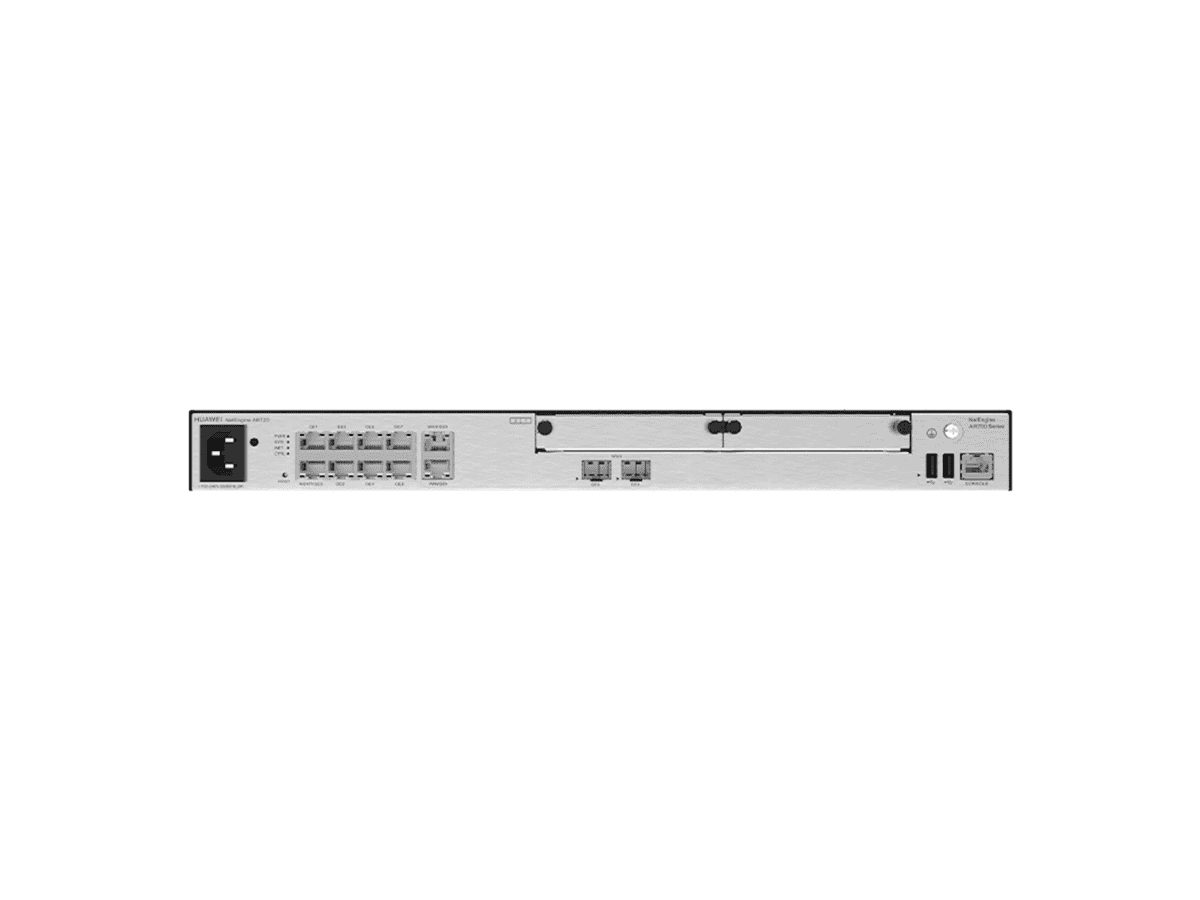

The Huawei eKit AR720 is a unified business gateway that integrates routing, switching, security, and WLAN AC functions into a single device. It is designed for small branches and offices, simplifying network architecture and reducing costs.Features:• 8 x GE RJ45 ports (with PoE on some models)• Built-in Wi-Fi AC controller• VPN (IPsec/SSL/L2TP), Firewall, NAT• 4G LTE cellular backupBenefits:• All-in-one solution reduces hardware costs and complexity• Provides secure connectivity for remote/branch offices• Ensures business continuity with 4G LTE backup• Easy to deploy and manage through a single interface
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 33 |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 |
| Maximum output power [W] | 70 |
| Safety regulation certification | IEC/EN/UL60950-1 IEC/EN/UL62368-1 GB 4943.1 |
| EMC certification | EN 55032 EN 55035 CISPR 32 GB 9254 EN 55024 CISPR 24 GB/T 17618 EN 300 386 VCCI-CISPR 32 AS/NZS CISPR32 IEC 61000-3-2/EN 61000-3-2 IEC 61000-3-3/EN 61000-3-3 |
| Type of fans | Built-in |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 2 x SIC |
| Number of service board slots | 2 |
| Noise at normal temperature (acoustic power) [dB(A)] | 52.3 dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
