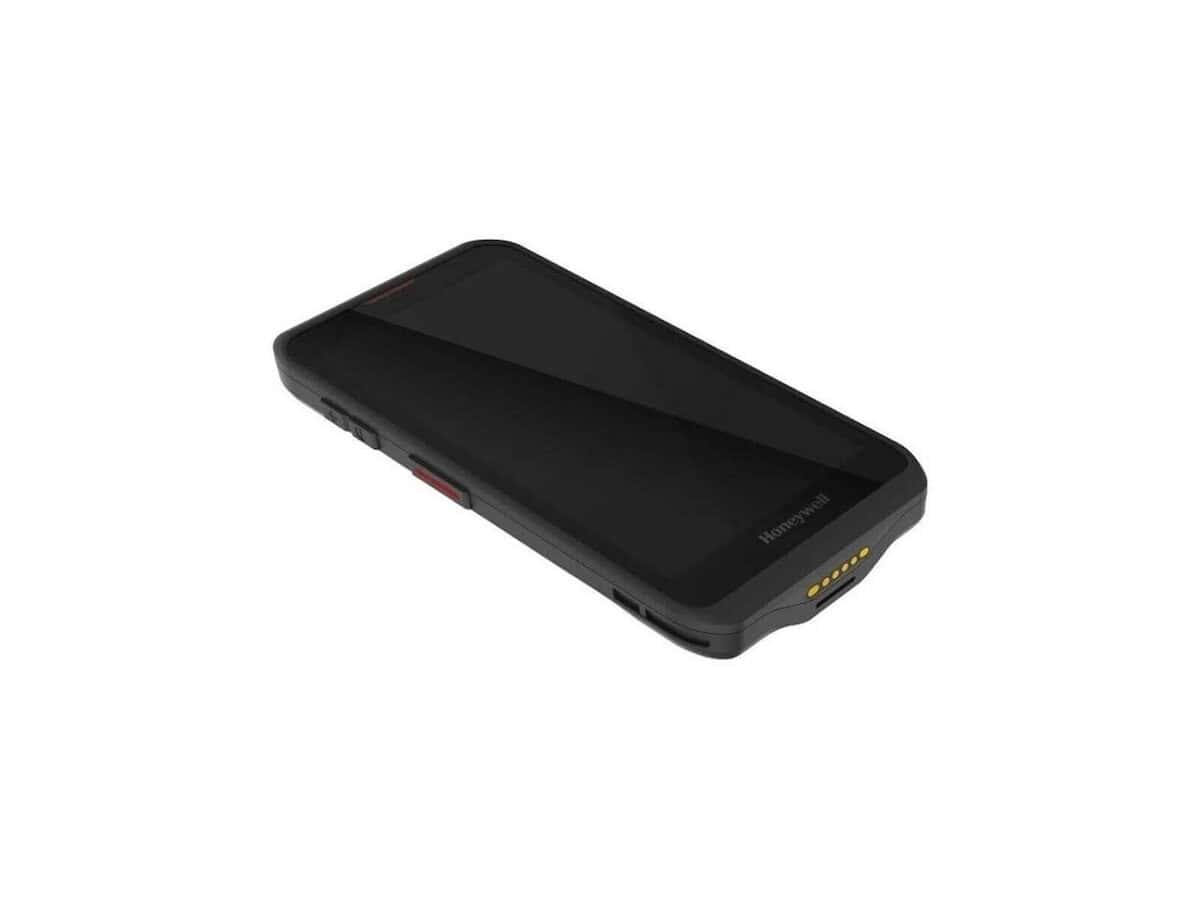

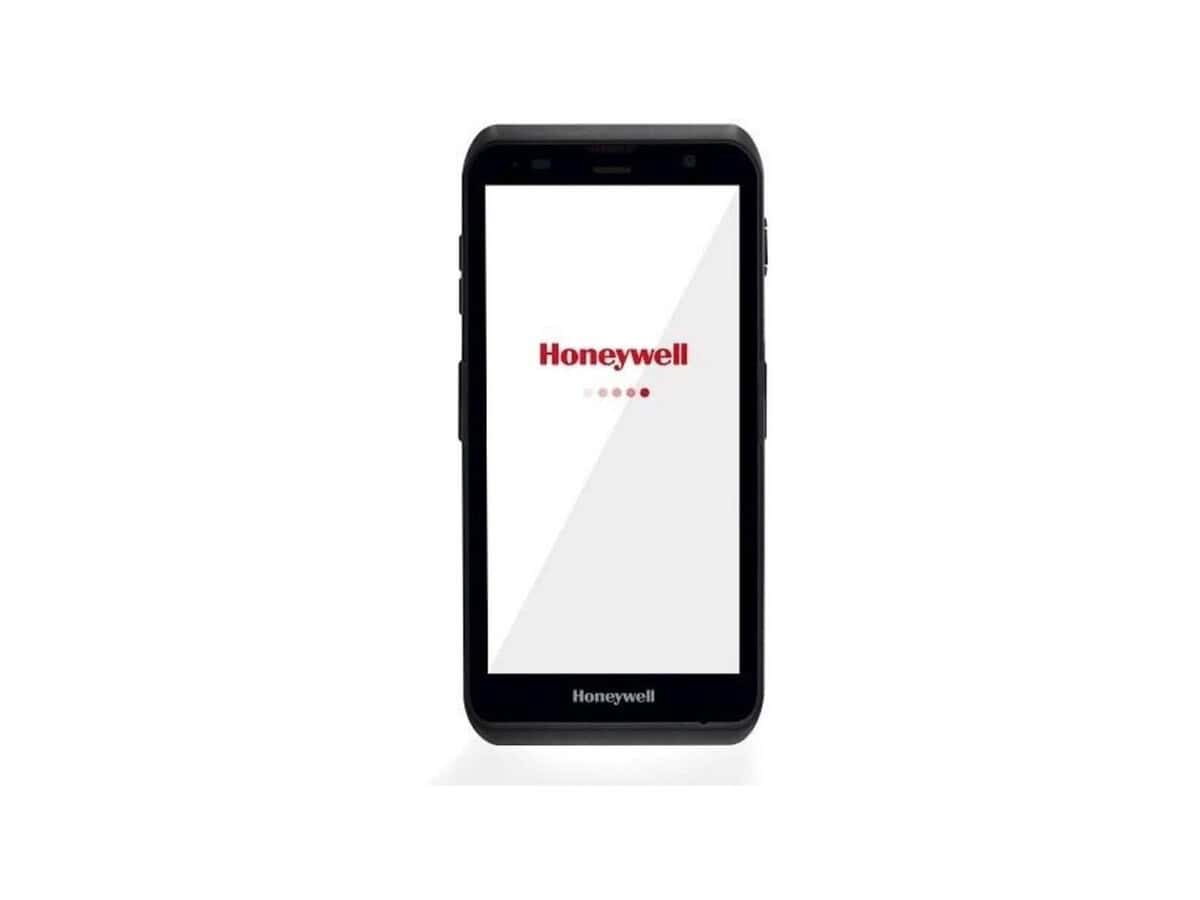

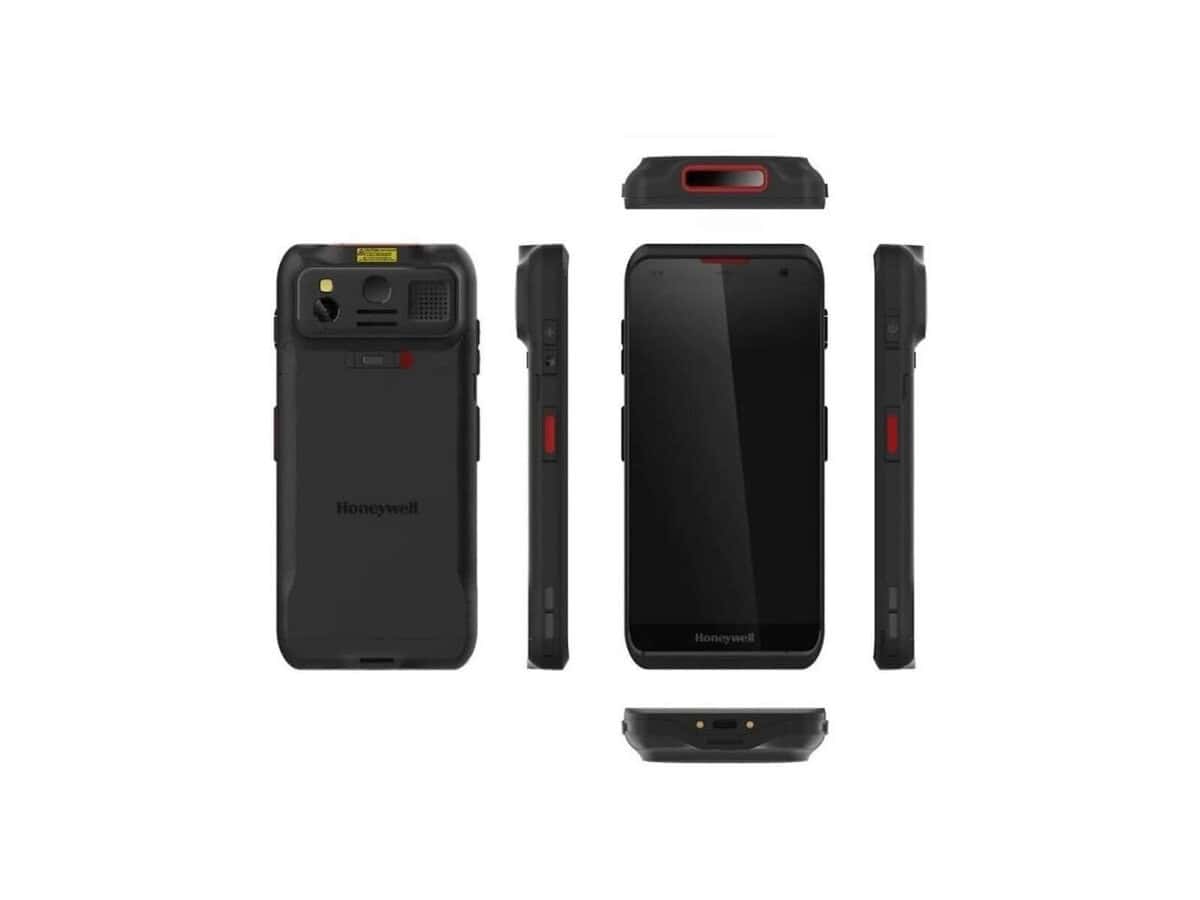

The ScanPal EDA52 is Honeywell’s next generation ScanPal series
mobile computer equipped with the latest Qualcomm Snapdragon
octa-core 2.0GHz processor and robust wireless connectivity through
NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication.
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic
industrial design help to greatly improve user comfort and experience. Its
lightweight and slim design means that users can easily operate the device
with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution
images for quality image documentation while the 5-megapixel front
camera allows users to engage in video communication.
SYSTEM ARCHITECTURE
Processor: Qualcomm Snapdragon
SM6115, Quad high-performance
Kryo cores 2.0 GHz +Quad low-power
Kryo cores 1.8 GHz
Memory: 4 GB RAM/64 GB Flash
Operating System: Android 11,
and upgradeable to Android 13*
Storage Expansion: MicroSD
(up to 128 GB)
Rear Camera: 13-megapixel color camera
Front Camera: 5-megapixel color camera
Interface Ports: 6 pin bottom connection
Battery: Li-Ion, 3.8 V, 4,500 mAh,
removable
Real-Time Clock (RTC):
10 min backup via super-cap
Charging Time: less than 3.5 hours
Scan Engine: Honeywell S0703 Slim
Imager (1D/2D barcode symbologies)
